Compression Load Cell 500t 330t 220t 100t 47t 33t 22t 10t 4.7t 2.2t

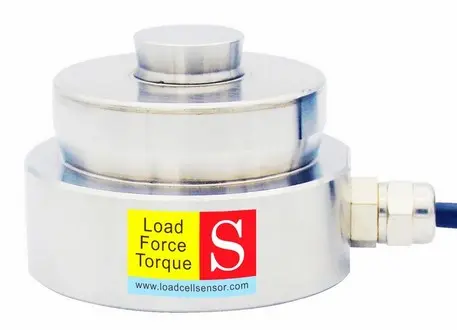

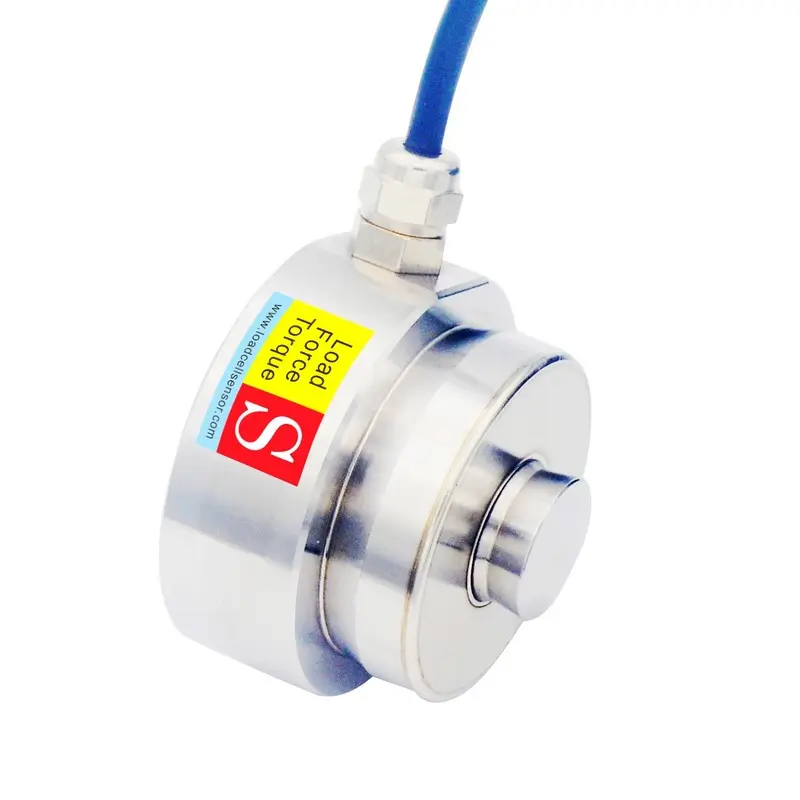

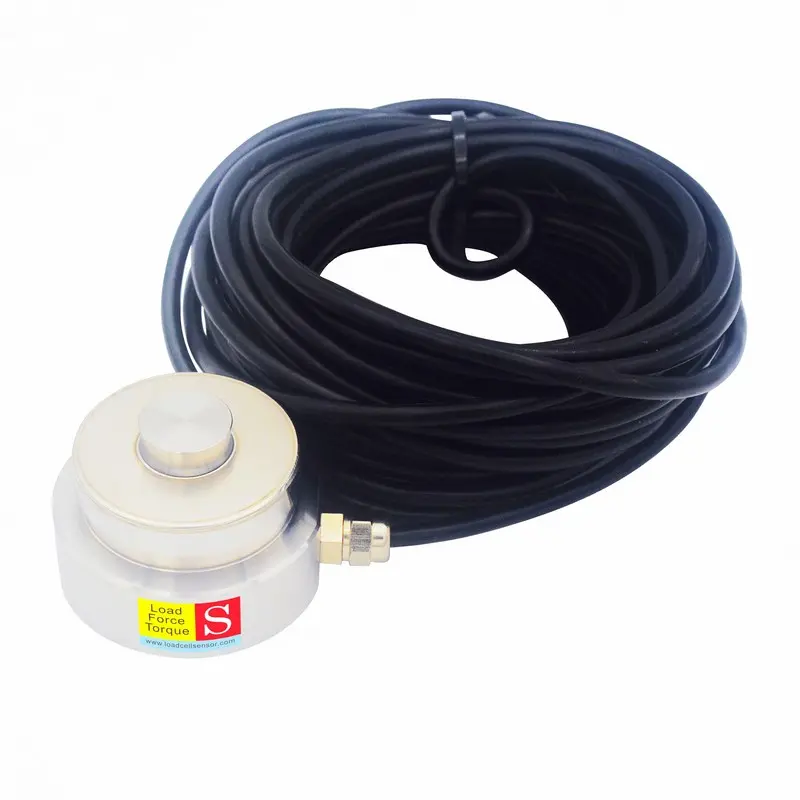

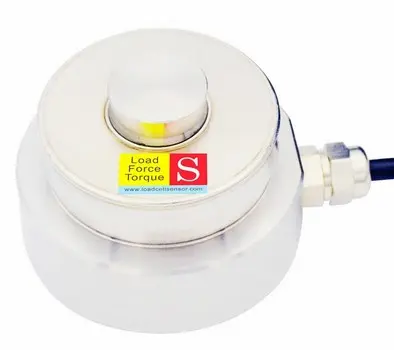

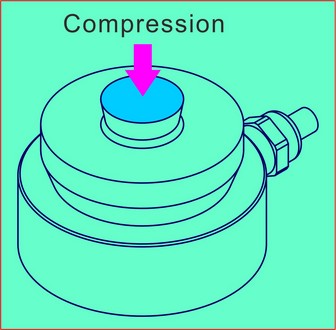

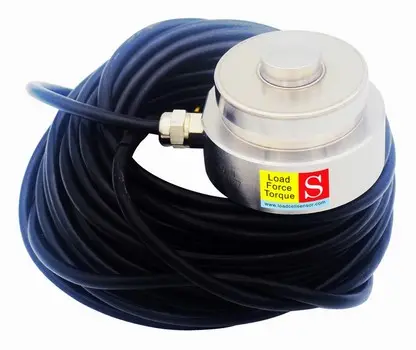

The SRTN ring torsion load cell is a high-performance, compression-type force sensor designed for demanding industrial and structural applications. Made from durable stainless steel and rated with IP67 ingress protection, this sensor is built to withstand harsh environments, including exposure to dust, moisture, and mechanical stress. Its compact, low-profile design allows it to be integrated easily into systems where space is limited, without compromising performance or reliability.
The SRTN is available in a broad range of rated capacities, from 1 ton to 500 tons, including: 1t, 2.2t, 4.7t, 10t, 15t, 22t, 33t, 47t, 68t, 100t, 150t, 220t, 330t, and 500t. This extensive capacity selection makes the load cell exceptionally versatile, suitable for both light- and heavy-load compression measurement tasks across various industries.

A key feature of the SRTN design is its annular strain gauge configuration, which helps reduce sensitivity to lateral forces and off-center loading—a common challenge in many industrial setups. This design ensures consistent accuracy and reliability, even under uneven or dynamic loading conditions. Additionally, the SRTN features a high input resistance of 4000 ohms, which greatly reduces power consumption. This is particularly beneficial in battery-powered or remote monitoring systems, where energy efficiency is crucial.
Built for precision, durability, and ease of integration, the SRTN compression force sensor is an ideal solution for applications that require robust performance under heavy and variable loads. For projects with unique technical or environmental requirements, customized solutions are also available to ensure optimal performance in specialized use cases.

Typical Applications of the SRTN Ring Torsion Load Cell

• Silo and Hopper Weighing Systems: The SRTN is ideal for monitoring material levels in storage silos and hoppers, ensuring accurate weight-based inventory control in food processing, agriculture, and manufacturing industries.
• High-Capacity Platform Scales: Its wide capacity range and robust build make it suitable for large-scale platform scales, such as those used in logistics centers, factories, and transportation hubs for weighing bulk goods and vehicles.
• Bridge Load Monitoring: In civil engineering, the SRTN force detection sensor supports real-time structural monitoring of bridges to assess load distribution and detect early signs of stress or fatigue in the structure.
• Foundation Pile Load Measurement: During construction, the load cell helps determine the load-bearing capacity of foundation piles, providing critical data for safe and efficient structural design.
• Industrial Press Force Testing: The load cell delivers accurate force feedback in hydraulic and mechanical press systems, ensuring proper force application and helping prevent tool or material failure.
• Injection Molding Force Control: In plastic or metal injection molding, precise clamping force monitoring is essential to maintain product quality and prevent equipment damage—an area where the SRTN excels.
• Hydraulic Jack Feedback: When used with hydraulic jacks, the load cell provides real-time feedback to ensure safe and balanced lifting of heavy machinery or structures during maintenance or assembly.
• Structural Stress Analysis: Engineers rely on the SRTN to analyze and validate stress loads on structural components in automative, aerospace, marine, or building applications, where failure prevention is critical.
• Construction Load Assessment: It plays a key role in monitoring loads on construction elements such as formwork, scaffolding, and temporary supports, helping ensure site safety and compliance with regulations.
• Press-Fit Force Validation in Assembly Lines: The SRTN force measurement sensor is widely used in automated manufacturing to validate the force applied during press-fit operations, ensuring component integrity and reducing the risk of assembly defects.

With its broad capacity range, energy-efficient design, and resistance to lateral loads, the SRTN Compression Load Cell is a trusted force measurement solution across multiple sectors. Whether for real-time monitoring or integration into automation systems, it offers consistent performance and can be tailored for specialized applications upon request.
