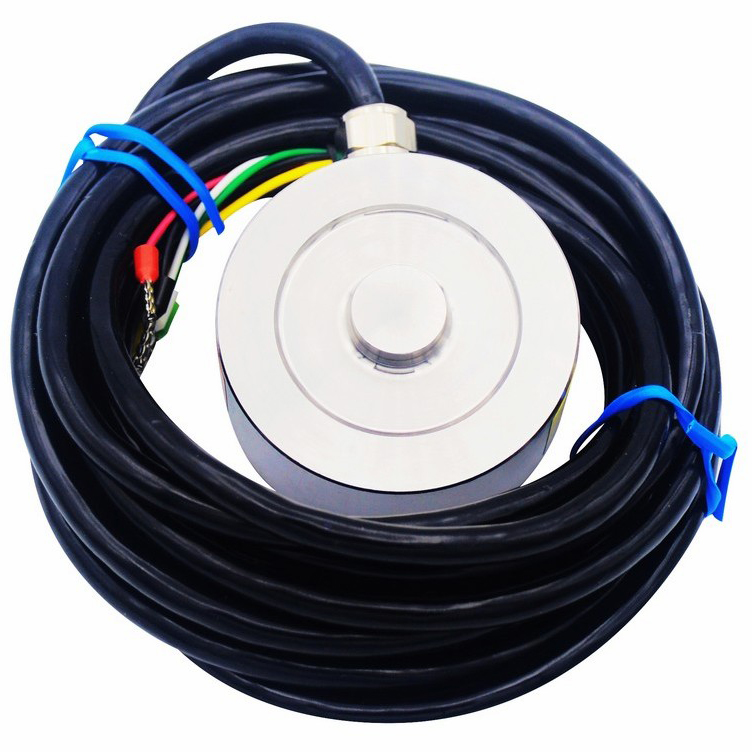

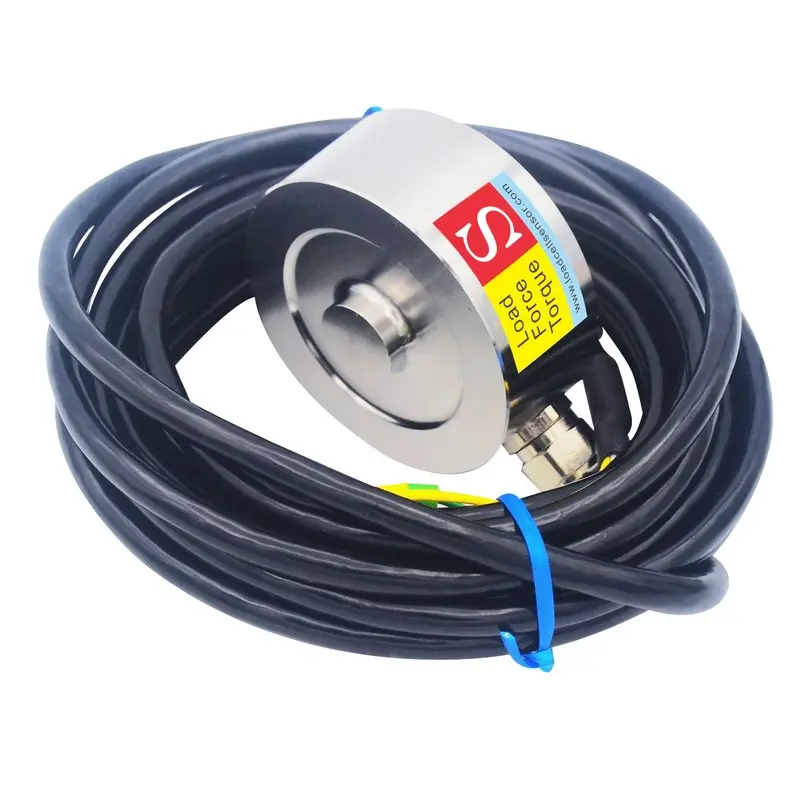

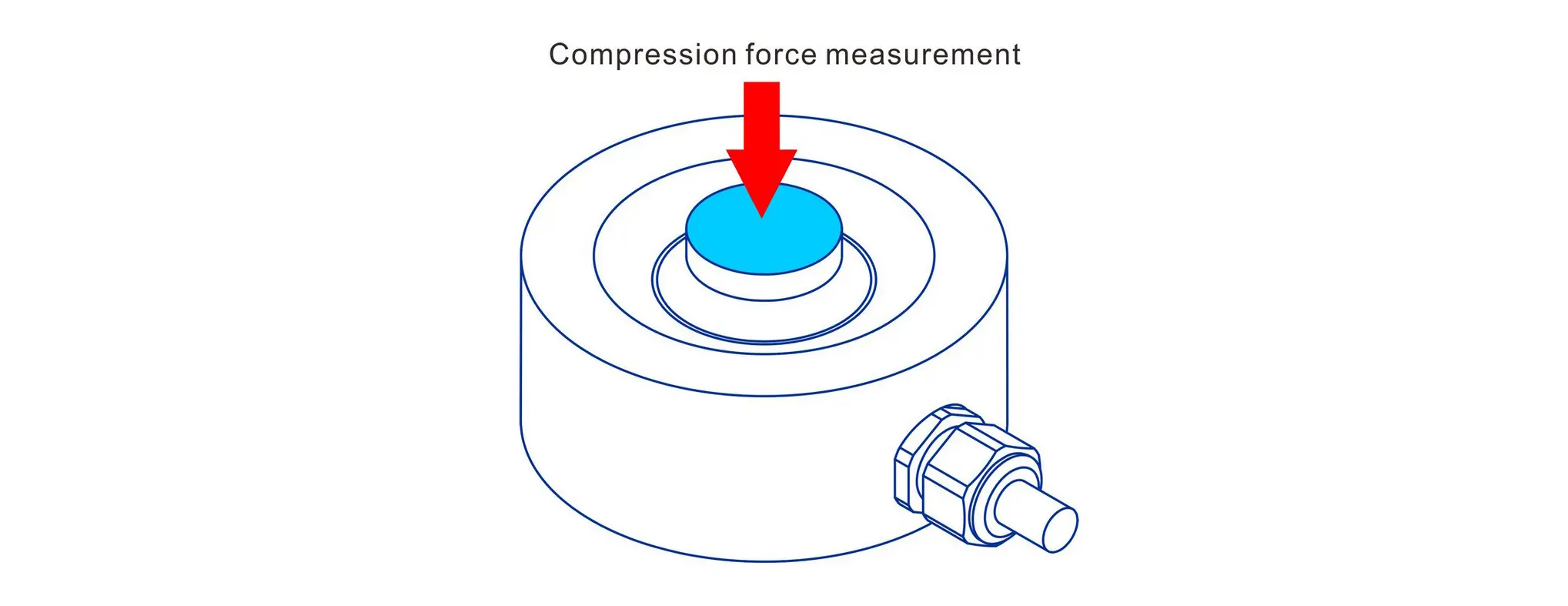

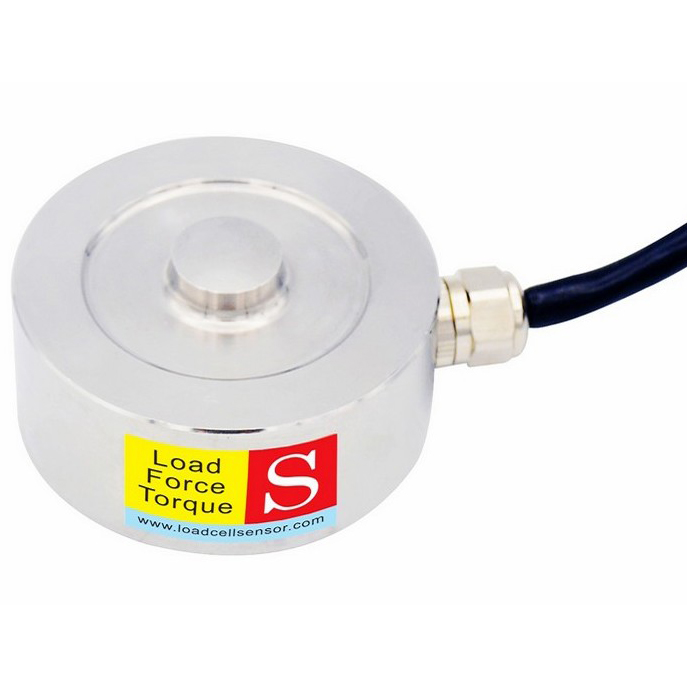

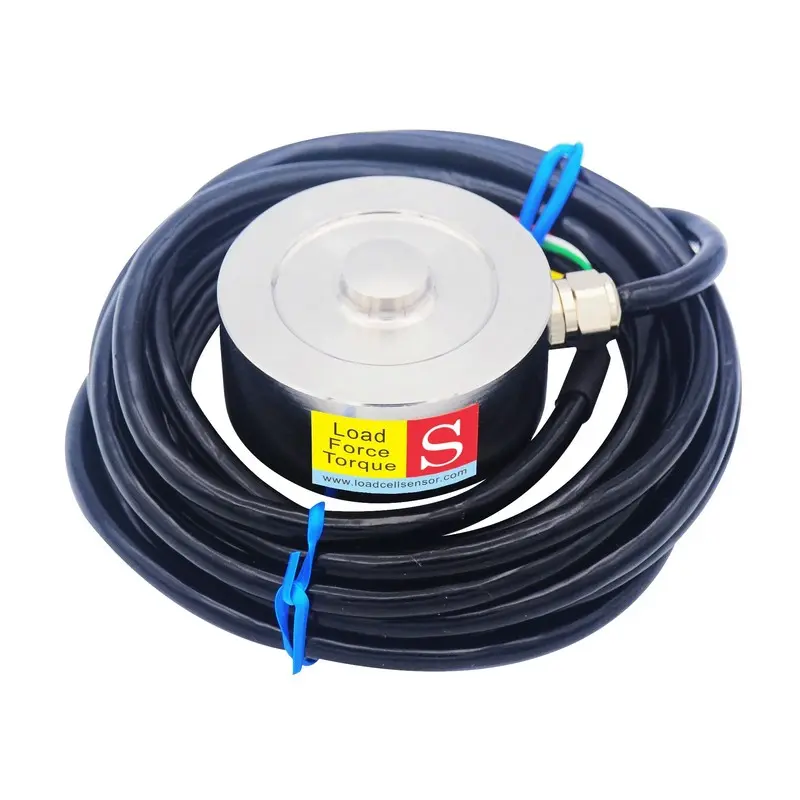

Disc load cell 0-10ton Button type compression sensor

A key feature of the disc load cell LCB10 is its 700-ohm Wheatstone full bridge, which consumes nearly 50% less current than traditional 350-ohm load cells. This lower current consumption is advantageous for battery-powered applications or systems where heat generation must be minimized. The 700-ohm configuration not only improves energy efficiency but also contributes to the load cell’s long-term stability, making it suitable for embedded systems where continuous operation and minimal maintenance are required.

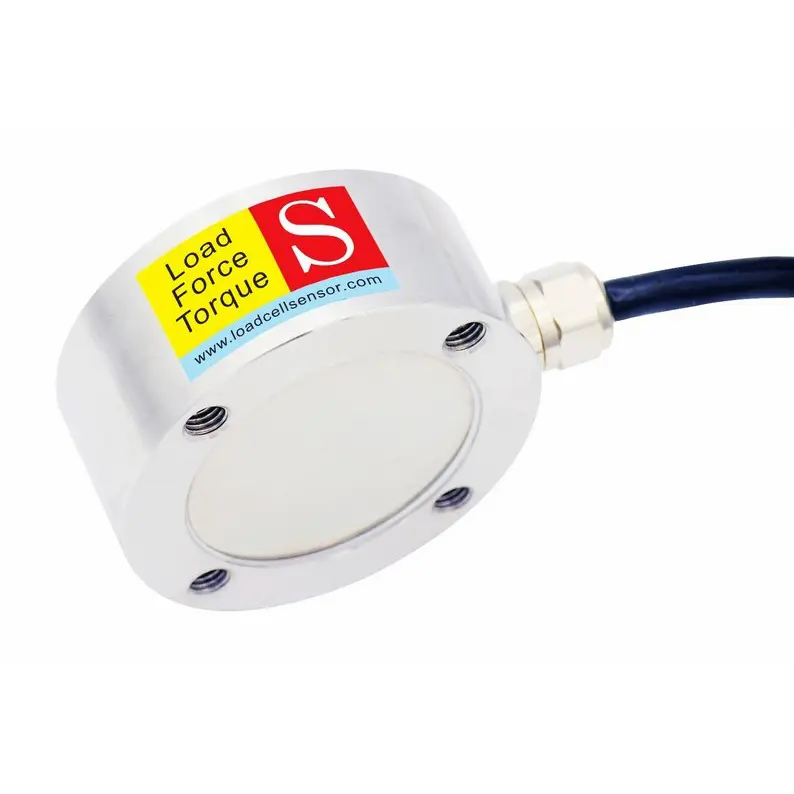

For secure installation, the LCB10 compression sensor features four threaded holes at its base, allowing it to be firmly mounted to a flat, solid surface from below. This secure mounting method ensures that the load cell remains stable under heavy or variable loads, enhancing measurement accuracy and reliability. The LCB10 is available in a wide range of capacities, from 100kg to 10 tons, offering flexibility for various industrial applications that require high load capacities within a compact form factor.

Typical applications for the LCB10 Button Load Cell include micro-component assembly tools, press machines, clamping force measurement, and industrial process control. Its combination of a durable stainless steel body, efficient power consumption, and exceptional load distribution makes it ideal for environments where precision and reliability are paramount.

For unique measurement needs, we offer fully customized load cell solutions designed to meet specific application requirements. Contact us to discuss tailored modifications in design, capacity, dimensions, or output to ensure optimal performance in your specialized projects.
