Flange-to-Flange Compression Load Cell 30t 50t 100t 200t 250ton

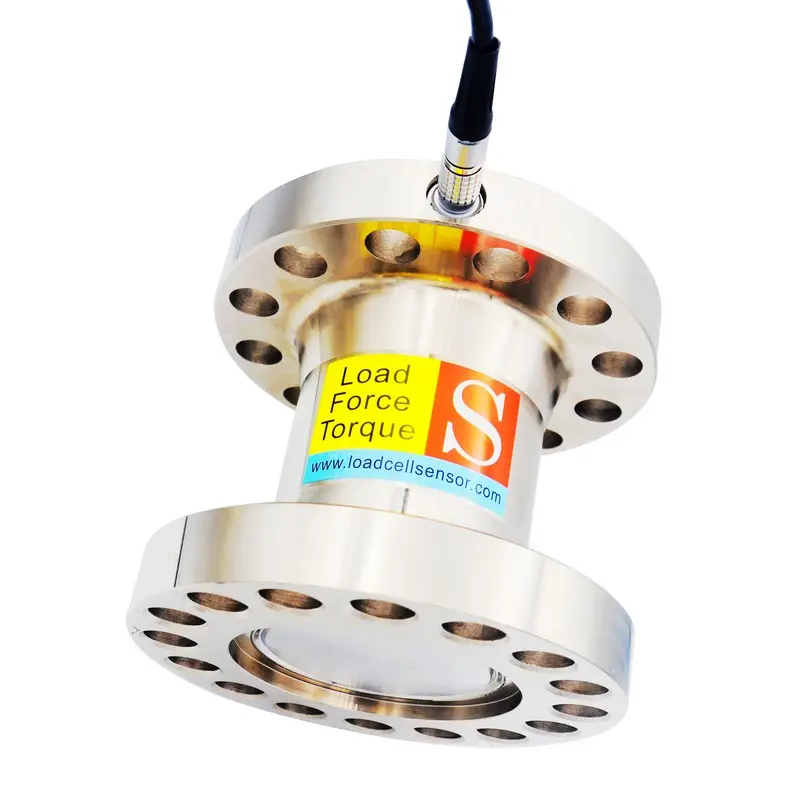

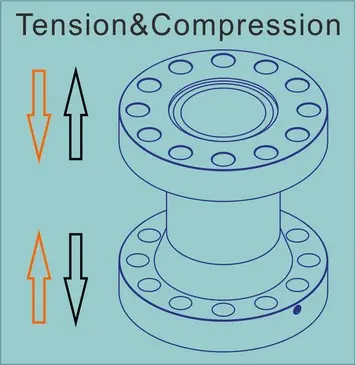

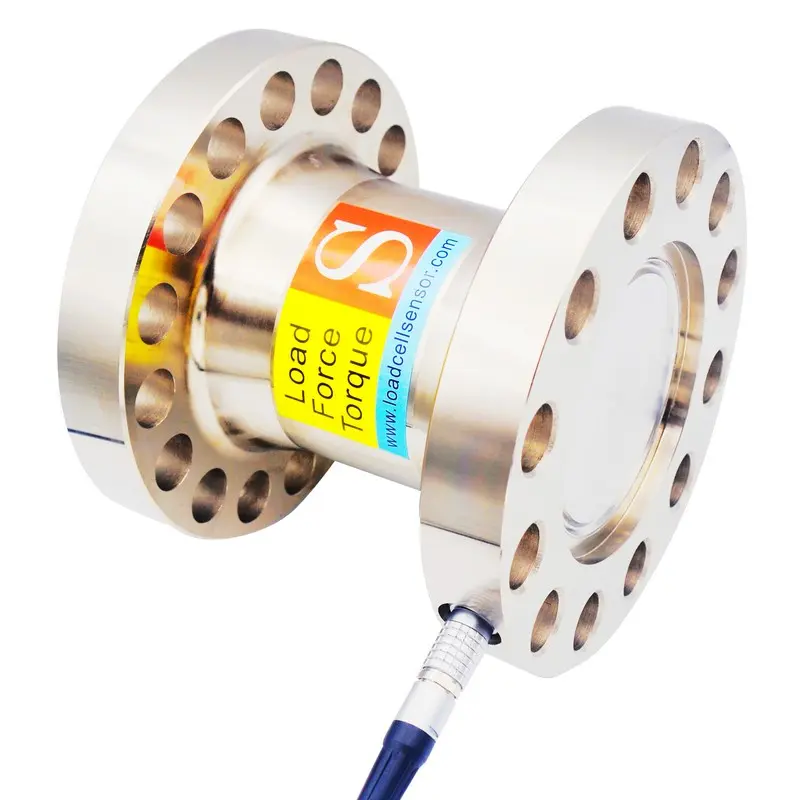

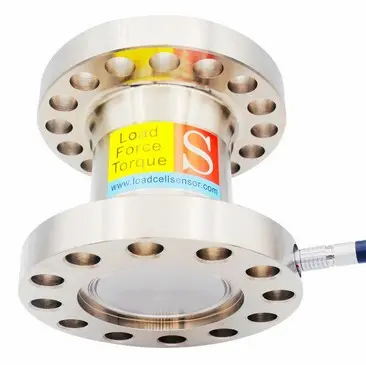

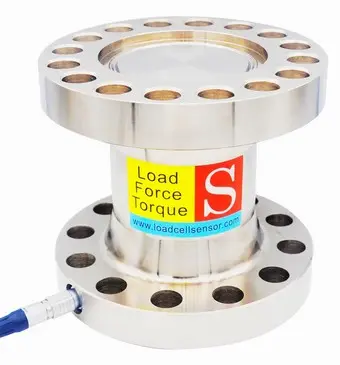

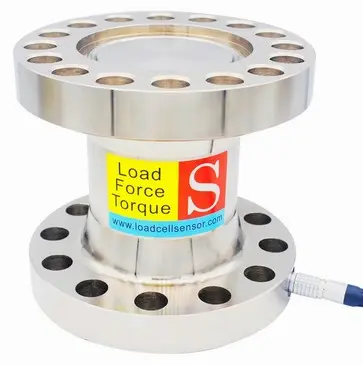

The LCF10 Flange Mount Column Load Cell is a robust and precision-engineered force transducer specifically designed for heavy-duty industrial applications. Constructed from high-stiffness alloy steel and built on proven strain gauge technology, this load cell ensures reliable performance under extreme loading conditions. It is ideal for both tension (traction) and compression force measurement, making it a versatile solution across a broad range of engineering and structural monitoring tasks. One of the key features of the LCF10 is its flange-to-flange mounting design, with flanged surfaces on both ends, allowing for easy installation and secure integration into various mechanical systems. Its rugged structure is capable of handling both static and dynamic forces, ensuring accurate and repeatable performance even in challenging environments.

The LCF10 force sensing load cell is available in ten rated capacities: 30t, 50t, 60t, 100t, 150t, 200t, and 250t, offering engineers and system integrators the flexibility to select the optimal load range for their specific application. Additionally, it features a 2000-ohm high-resistance bridge, which significantly reduces heat generation during operation and contributes to improved long-term measurement stability—a critical factor in applications involving continuous use or long-duration testing. For enhanced reliability, the LCF10 also supports an optional second bridge circuit, providing redundant output. This feature adds an extra layer of safety and monitoring assurance, especially in mission-critical applications such as structural testing or high-risk industrial processes.

Typical Applications of the LCF10 Flange Type Load Cell

• Bridge Structural Load Testing: Used in civil engineering projects, the LCF10 helps evaluate bridge integrity and load-bearing capacity, ensuring compliance with safety regulations and structural design limits.
• Industrial Press Force Measurement: In metal forming, stamping, and forging, the LCF10 provides real-time force monitoring to ensure consistent press performance, product quality, and tool protection.
• Tensile Testing of Steel and Concrete: The LCF10 tension compression force measurement sensor delivers high-precision data in material testing laboratories for evaluating the tensile strength and performance of construction materials like steel bars and concrete samples.
• Pile Load Testing in Construction: Used in foundation engineering, this sensor verifies the load-carrying capacity of foundation piles, aiding in safe structural design and ground stability assessment.
• Hydraulic Jack Force Feedback: Integrated into hydraulic lifting and jacking systems, the LCF10 ensures controlled, balanced lifting of large loads such as bridges, heavy machinery, or structures during maintenance.
• Injection Molding Machines: In plastic and metal injection molding, model LCF10 monitors mold clamping force, ensuring consistent product quality and preventing mold damage due to force imbalance.
• Mold Clamping Force Control: For die casting or press-fit applications, the LCF10 force detection sensor allows accurate measurement of clamping force, ensuring proper alignment and material flow during the manufacturing process.

The LCF10 flange mount tension compression load cell is engineered for precision, strength, and flexibility in demanding environments. With its high-capacity range, durable construction, and customizable options—including second-bridge redundancy—it provides a dependable solution for industrial force measurement and critical load monitoring tasks. Whether for infrastructure testing, manufacturing, or construction, the LCF10 delivers accurate, stable, and safe force data when it matters most.
