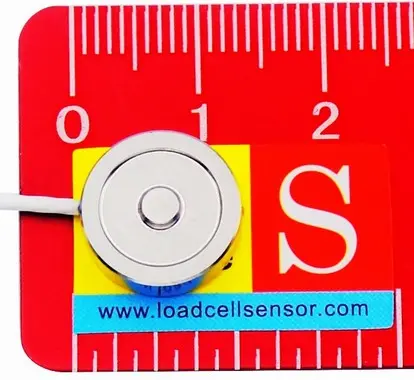

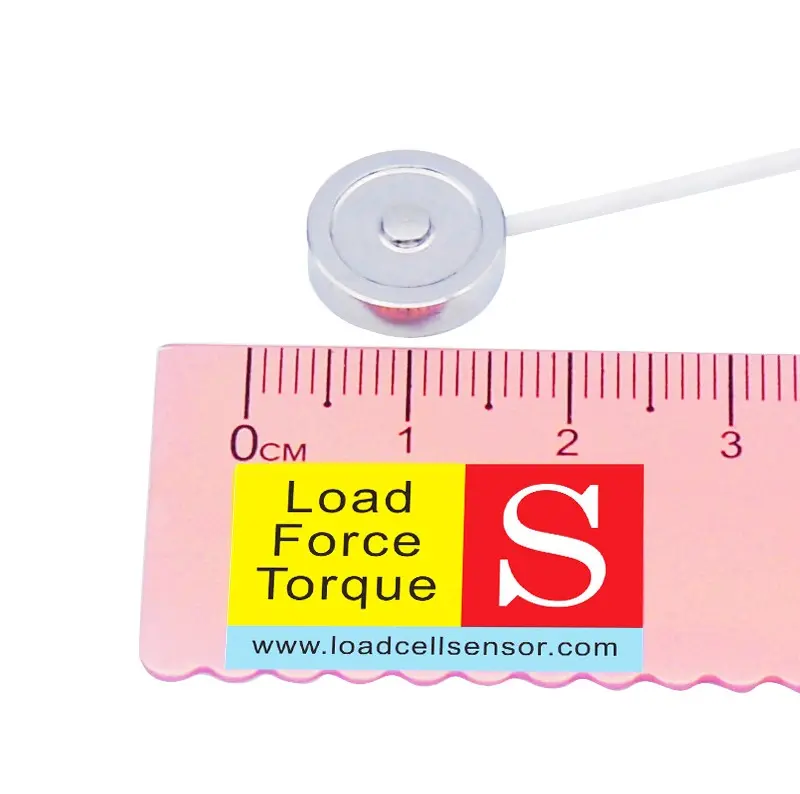

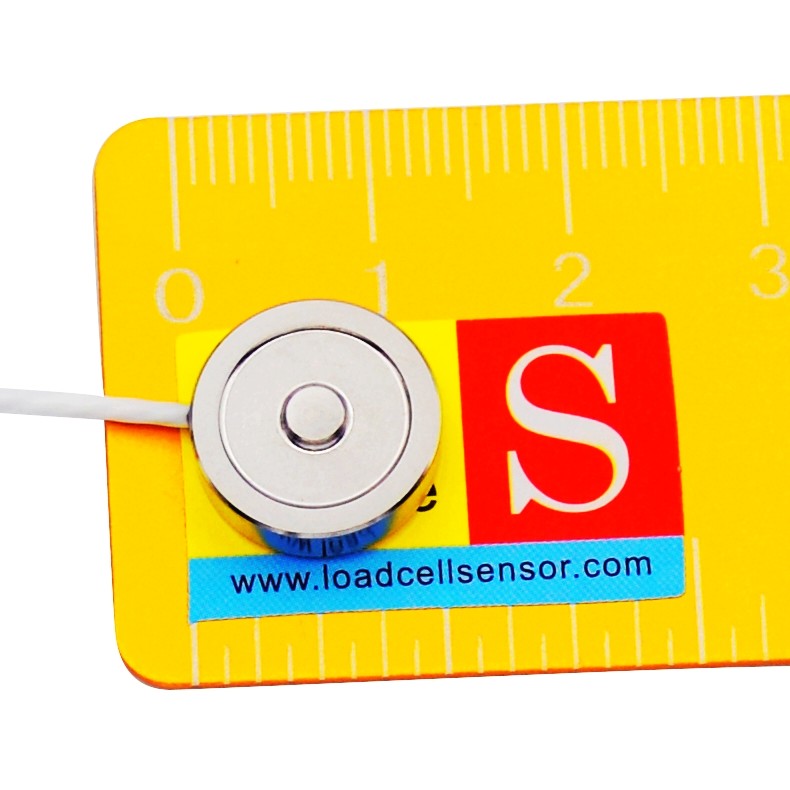

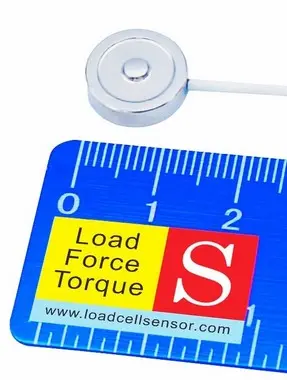

Thin Force Sensor 0-100kg Miniature Compression Load Cell

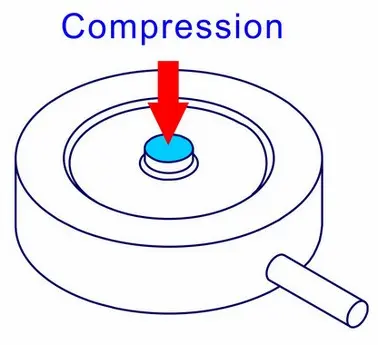

The Ultra-Thin Load Cell LCB03 is an expertly engineered force sensor, designed to provide precise compression force measurements in space-restricted environments. Its innovative construction includes a slightly convex load button positioned at the top of the transducer. This design ensures that the load is distributed evenly across the diaphragm, regardless of fluctuating force conditions. This feature is crucial for achieving consistent, repeatable readings, as it minimizes errors caused by uneven loading.

Constructed from high-quality stainless steel, the LCB03 button type load cell is built to withstand the harsh conditions of industrial environments. The compression sensor incorporates a 1000-ohm high-resistance Wheatstone bridge circuit, a critical component that helps minimize heat dissipation while supporting long-term stability. This design feature not only ensures energy efficiency, making it ideal for battery-powered applications, but also improves measurement accuracy by reducing thermal effects that could impact data reliability. This makes the LCB03 load cell especially valuable in applications where continuous, long-term operation is a necessity.

One of the defining features of the LCB03 is its ultra-compact and low-profile design, making it well-suited for installations with strict space limitations. The sensor must be mounted on a flat surface for optimal performance. Although the LCB03 thin force sensor does not have standard mounting provisions, it can easily be fixed in place using an external wall or by sandwiching it between assembly components. This flexible mounting capability ensures smooth integration into tight setups, making the LCB03 an excellent choice for environments where space is at a premium.

The LCB03 tiny load cell is ideal for applications where installation height is limited, such as industrial process control, testing and measurement systems, and assembly machinery. Its slim form factor and high precision make it particularly well-suited for environments with strict size restrictions. In addition, we offer custom design services for applications that require specific modifications beyond the standard models. With over a decade of experience in load cell customization, our team can tailor solutions based on customer needs, such as adjustments to capacity, dimensions, or environmental considerations. This flexibility ensures that the LCB03 round force sensor can meet the exact requirements of any specialized measurement task, further enhancing its versatility across various industries.
