Weight Load Sensor 3kg 6kg 10kg 20kg 30kg 40kg

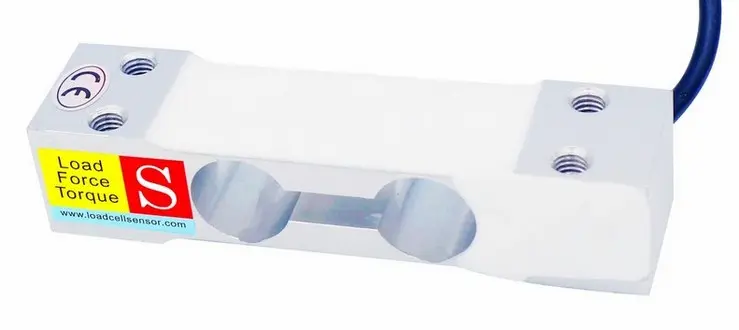

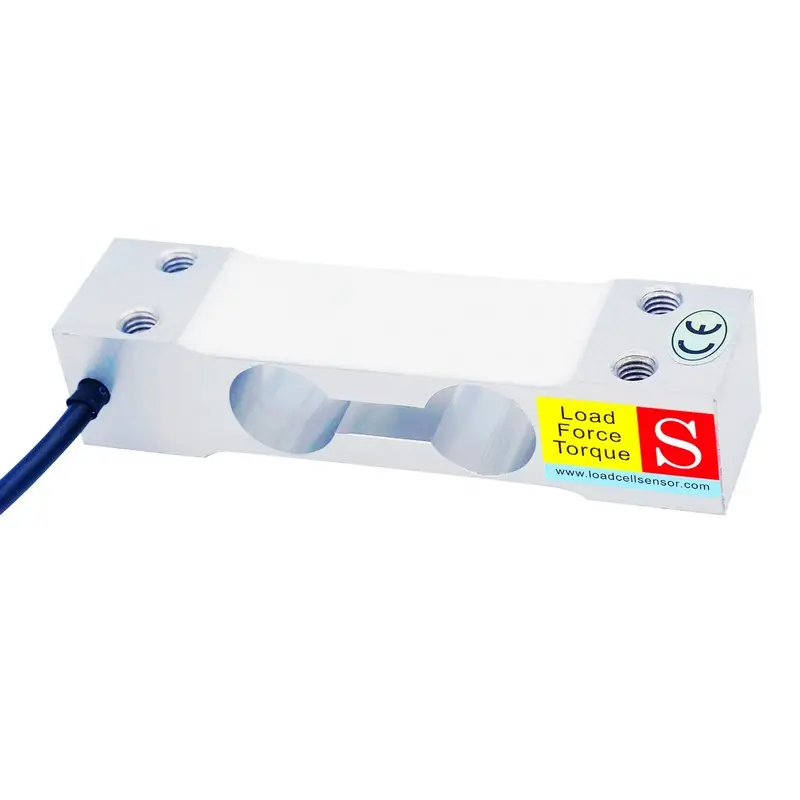

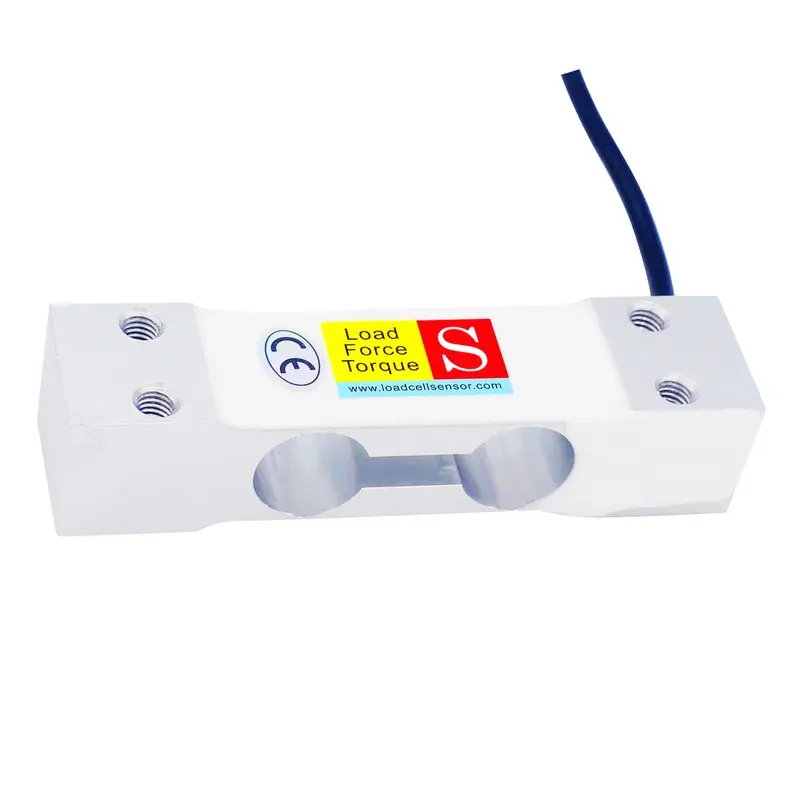

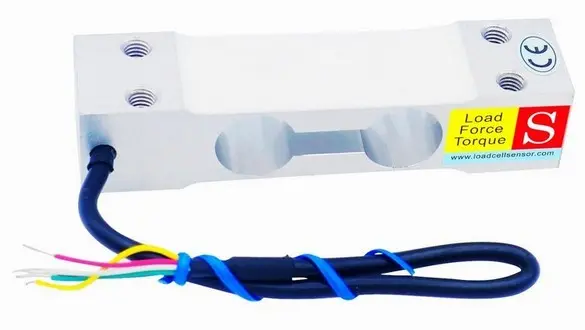

The LCE11 Weight Load Sensor is an innovative weighing sensor designed to deliver high accuracy while prioritizing energy efficiency. Built with strain gauge technology and a Wheatstone full bridge configuration featuring a 1000-ohm bridge resistance, the LCE11 consumes significantly less current compared to traditional 350-ohm load cells. This reduced power draw makes it ideal for battery-operated systems, IoT devices, and applications where energy conservation is critical, such as portable scales or remote monitoring equipment. By minimizing power usage without sacrificing performance, the LCE11 extends operational lifespans in energy-sensitive environments, reducing maintenance and replacement costs.

Crafted from high-grade aluminum, the LCE11 weight cell sensor combines lightweight construction with robust performance. It is available in capacities ranging from 3kg to 40kg (3kg, 6kg, 10kg, 20kg, 30kg, 40kg) and offers a rated output of 2.0mV/V, ensuring precise and linear measurement across its entire range. A key feature of the LCE11 is its advanced corner trimming process, which calibrates the sensor to maintain uniform output accuracy even when loads are applied off-center. This capability allows it to accommodate platform sizes up to 250x350mm, making it indispensable for applications requiring reliable measurement regardless of load placement, such as conveyor systems or large industrial scales.

The LCE11 weight machine load cell incorporates built-in temperature compensation to counteract the effects of thermal fluctuations. This ensures consistent accuracy across a broad temperature range, from controlled laboratory settings to harsh industrial environments. Whether exposed to heat from machinery or seasonal temperature shifts, the sensor maintains dependable performance, eliminating measurement errors caused by thermal drift. This reliability is crucial for industries like food processing, pharmaceuticals, and logistics, where precise weight data is vital for compliance and quality control.

With its blend of precision, energy efficiency, and adaptability, the LCE11 is widely used in automated packaging machines to ensure accurate fill weights, grading systems for product sorting, and retail scales for consumer transactions. It also excels in dosing equipment for chemical or pharmaceutical dispensing, automatic filling machinery for liquids or powders, and process control systems in manufacturing. Its compact design and off-center load tolerance further make it suitable for integration into space-constrained or complex mechanical setups.

The LCE11 single point load cell strikes an optimal balance between affordability and advanced functionality. Its competitive pricing makes it accessible for small businesses and large-scale industrial users alike, while its low maintenance requirements and long-term durability reduce total ownership costs. For specialized needs, customization options—such as tailored capacity ranges or mounting configurations—are available, ensuring seamless compatibility with unique operational demands.
