2-axis Load Cell Biaxial Force And Torque Sensor

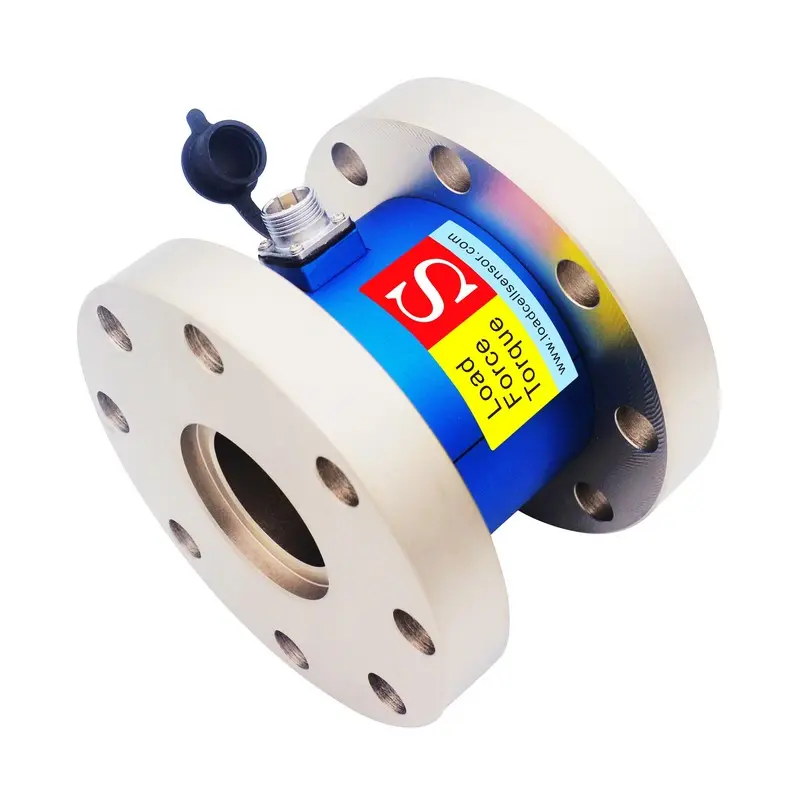

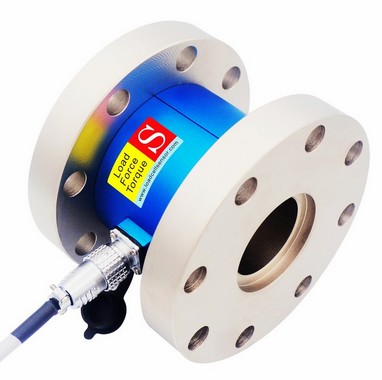

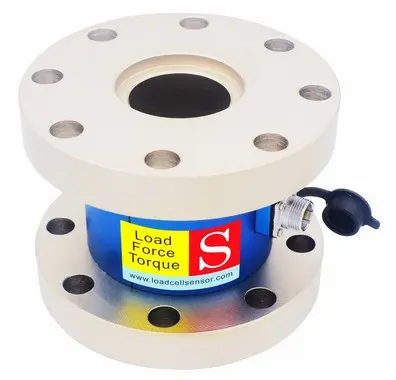

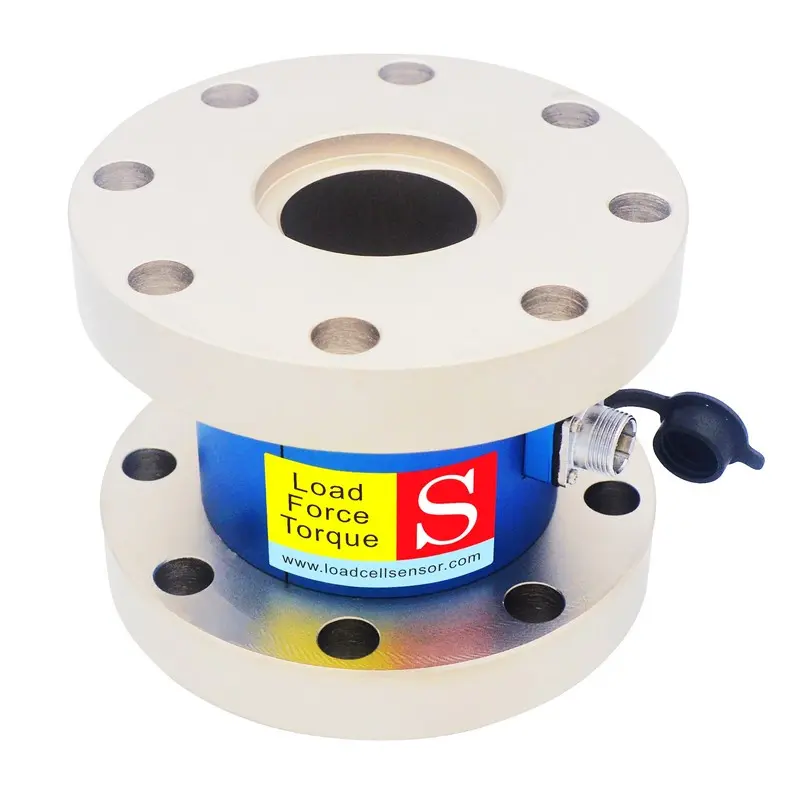

The 2-axis Load Cell LCM08 is a state-of-the-art measurement device, designed to deliver high-precision data on both reaction torque moments and force (tension and compression) loads. Built to cater to the demanding requirements of various industries, this advanced sensor stands out with its flange-to-flange design, making it easy to install while maintaining a compact and efficient profile. Its versatility and performance make it an essential tool for accurate torque and force measurements across a wide range of applications.

The LCM08 features dual outputs that enable the simultaneous measurement of both torque and thrust force, making it indispensable for applications where these two parameters need to be monitored together. With torque measurement ranges from 200Nm to 10kNm and force measurement capabilities from 20kN to 1000kN, the LCM08 offers unparalleled versatility, adapting seamlessly to different operational scales. This broad measurement range ensures the sensor can handle a variety of tasks, from small-scale operations to heavy-duty industrial processes, while consistently providing accurate and reliable data.

Applications of the LCM08 Force And Torque Sensor:

• Product Testing: The LCM08 is invaluable in product testing environments, where precise measurements of force and torque are critical to understanding product durability, mechanical performance, and functionality. Engineers use this sensor to test the resilience of materials and components under load, evaluating their capacity to withstand stress, strain, and wear over time. The LCM08's ability to deliver consistent and accurate readings aids in the development of high-quality products, ensuring that they meet the necessary standards of performance before reaching the market.
• Grinding and Polishing: In industries such as metalworking and material processing, the LCM08 is essential for monitoring the torque and force applied during grinding and polishing operations. By accurately measuring the applied forces, the sensor ensures that these processes are carried out with optimal efficiency. This minimizes the risk of damaging components while enhancing the quality of the final product. Whether it's ensuring uniform pressure on a workpiece or controlling the power applied by grinding machinery, the LCM08 provides the precision necessary for high-quality manufacturing.

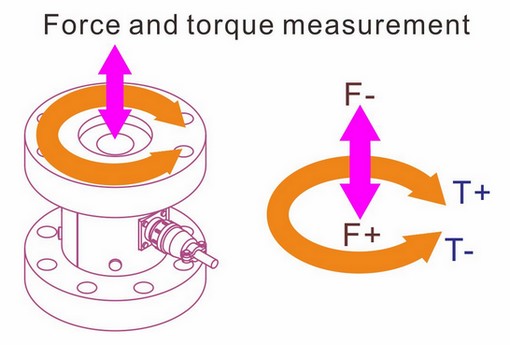

• Robotic Assembly: The LCM08 2-axis force sensor excels in robotic assembly lines, where both torque and thrust force measurements are crucial. Automated processes, such as robotic arms assembling components or fasteners, require precise control over force application to avoid over-tightening or under-tightening. The LCM08's dual functionality allows for accurate measurement of both torque (in clockwise and counterclockwise directions) and force, ensuring that the right amount of pressure is applied in each step of the assembly process. This level of precision enhances the reliability and consistency of automated production lines.
• Automotive Industry: In the automotive sector, the LCM08 is used extensively for testing and simulating operating forces in engines, transmissions, and other critical vehicle components. Automotive engineers rely on this sensor to measure forces in rotating parts and assess how components behave under different loading conditions. The LCM08 helps ensure that automotive parts meet stringent performance and safety standards. Whether used in testing engine parts or simulating real-world driving conditions, this sensor's accuracy and reliability are essential for maintaining the high-quality standards expected in the automotive industry.
• Medical Research: Model LCM08 also plays a critical role in the medical field, particularly in research and development for medical devices. Accurate force and torque measurements are crucial for validating the performance of surgical tools, implants, and other medical devices. By testing the mechanical properties of these devices, the LCM08 ensures that they meet the necessary standards for safety and functionality before being used in clinical settings. Its high precision and reliability make it an indispensable tool for researchers and manufacturers in the medical industry.

Beyond its standard applications, the LCM08 torque thrust sensor is highly customizable. It can be tailored to meet specific customer requirements, offering adjustable dimensions, modified measuring ranges, and custom outputs to suit unique measurement needs. This flexibility makes it an ideal solution for specialized industries, where standard load cells might not meet the necessary criteria. Whether in routine industrial operations or complex research projects, the LCM08 delivers consistent and accurate results across various sectors.

The LCM08 biaxial load cell is a robust, versatile, and high-precision solution for industries requiring force and torque measurement. Its ability to handle both static and dynamic measurements, combined with customizable features, makes it a valuable asset in many applications, from automotive testing to medical device research. By providing reliable and accurate data, the LCM08 ensures optimal performance and safety in even the most demanding environments.
