Multi-axis Load Cell 10kg 20kg 30kg 50kg Triaxial Load Cell

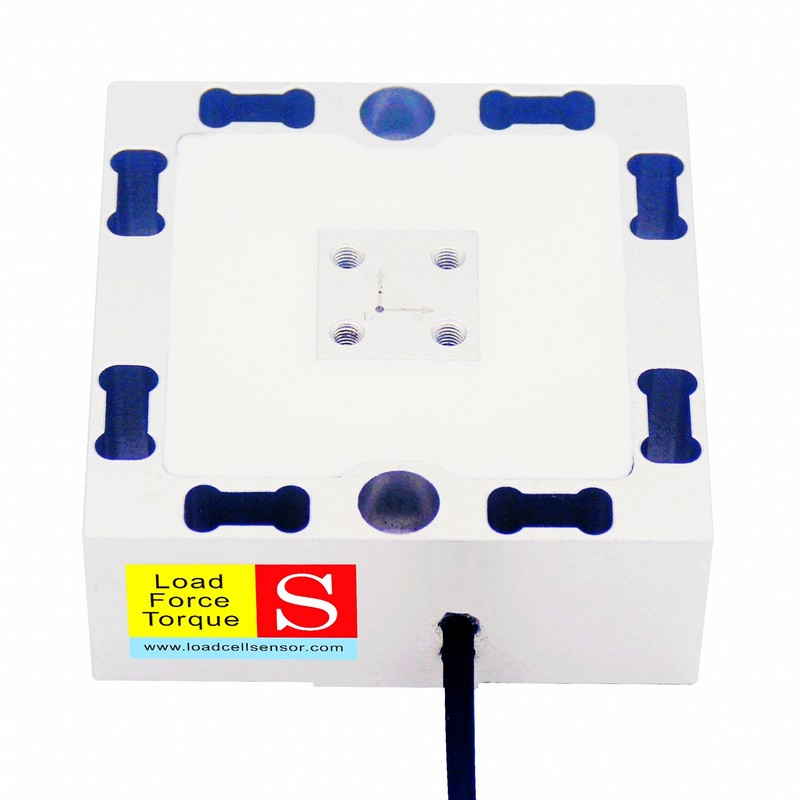

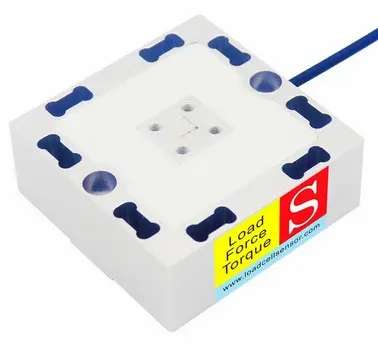

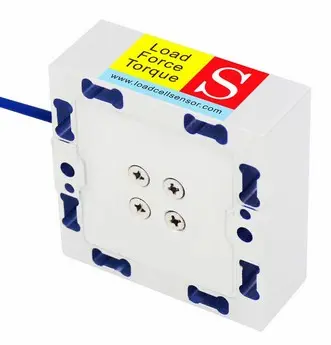

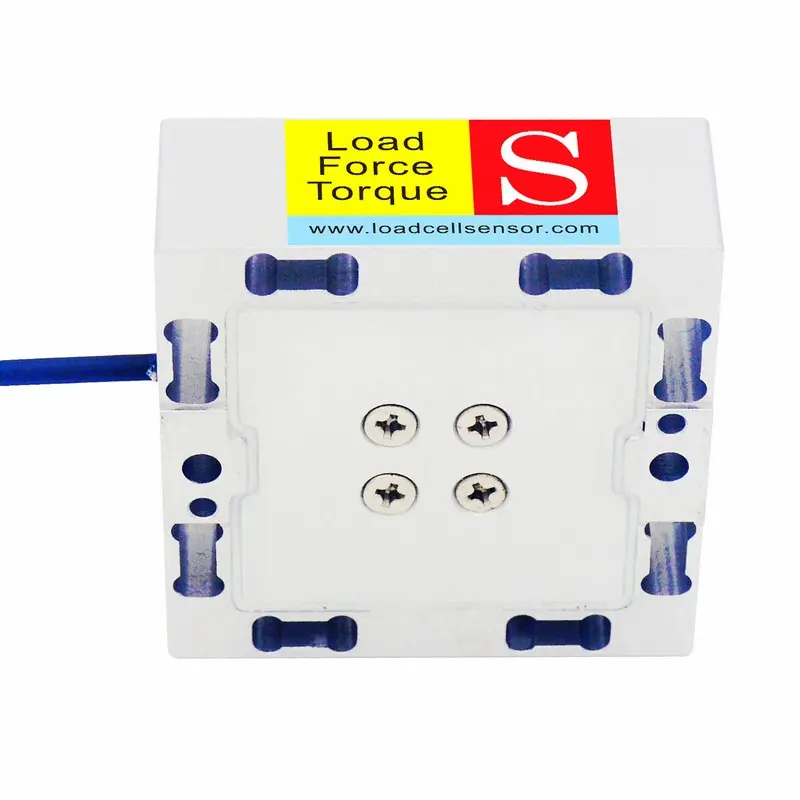

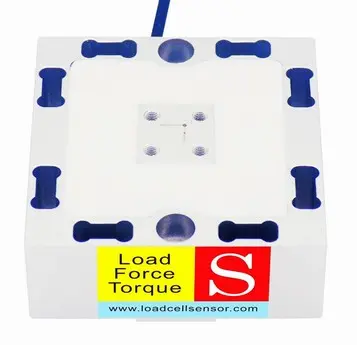

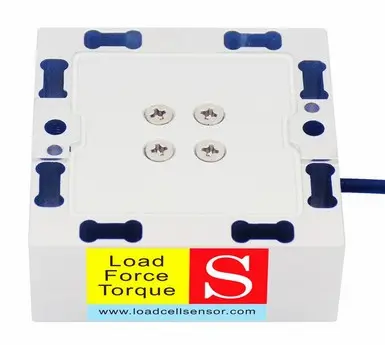

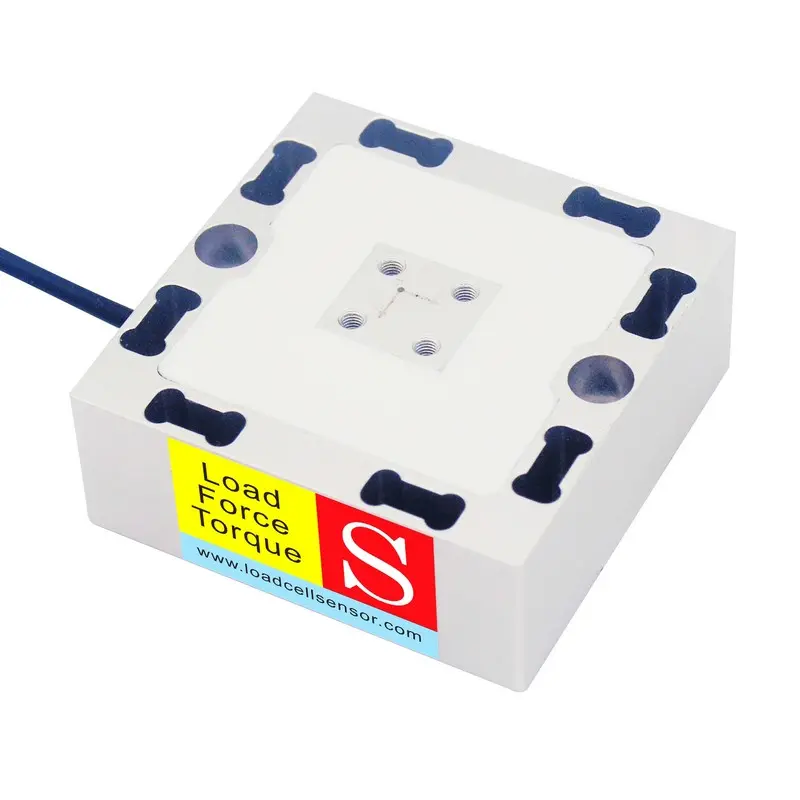

The LCMR 3-axis load cell is a compact, high-precision multi-axis load cell designed for accurate and stable three-dimensional force measurement in both tension and compression along the X, Y, and Z axes. As a true triaxial load cell, it enables simultaneous measurement of forces in three orthogonal directions, making it ideal for applications that demand precise force characterization in complex mechanical systems. Available in 10kg, 20kg, 30kg, and 50kg rated capacities, this 3D load cell provides exceptional accuracy and long-term reliability. The 10kg and 20kg versions feature lightweight aluminum construction, ensuring high sensitivity and easy integration into delicate systems, while the 30kg and 50kg models are made from robust stainless steel, providing superior strength and stability for high-load environments.

Each axis of the LCMR 3-axis sensor incorporates a full Wheatstone bridge circuit to generate a direct and highly stable mV/V output, eliminating the need for mathematical compensation or signal correction. The precision strain gauge technology ensures excellent repeatability, low cross-talk, and consistent performance across a wide range of operating conditions. When paired with an external amplifier, the 3-axis load cell can output standard analog signals such as 0–5V, 0–10V, or 4–20mA, simplifying integration with industrial control systems, data acquisition equipment, and robotic controllers. This flexibility makes it a versatile solution for both research laboratories and industrial production environments.

Engineered to meet the demands of modern automation and robotics, the LCMR multi-axis load cell is widely used for three-dimensional force measurement in applications requiring precise monitoring, calibration, and feedback control. Its compact form factor, high resolution, and rugged construction allow for use in both static and dynamic test conditions. Typical applications include collision detection in collaborative robots, where accurate force feedback ensures safety and sensitivity; force monitoring during automated assembly or insertion processes, enabling consistent product quality; and multi-axis torque and force testing of small actuators, ensuring optimal performance in precision devices.

The LCMR triaxial load cell also finds extensive use in press-fit and insertion force monitoring during electronic component assembly, material behavior testing under multi-directional loads for research and development, and calibration of motion simulators or precision positioning systems. Beyond industrial settings, it is ideal for biomechanical force analysis in exoskeletons or hand tools, as well as human-machine interface (HMI) force sensing for control joysticks and advanced robotics. Additionally, the sensor can be integrated into precision robotic or flight simulation platforms for real-time force feedback and performance evaluation.

With its combination of accuracy, robustness, and adaptability, the LCMR 3D load cell provides a reliable foundation for advanced measurement and control systems. For applications requiring specific geometries, mounting configurations, or load capacities, LCS Tech Co., Limited offers complete customization services to design and manufacture tailored triaxial load cell solutions, ensuring precise and stable multi-directional force sensing in even the most demanding environments.
