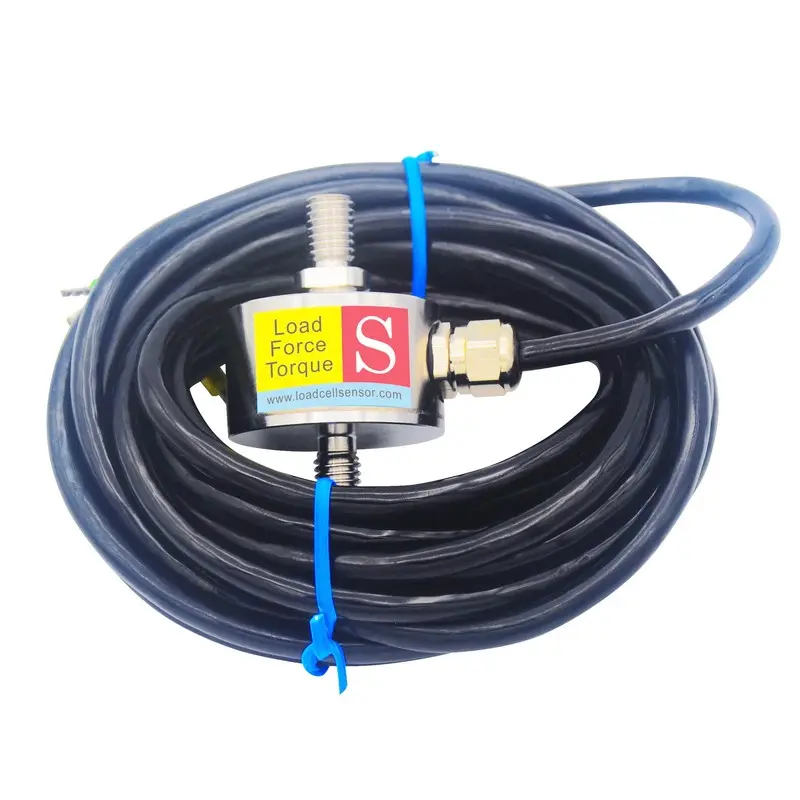

High Temperature Load Cell 0-10kN Push Pull Force Sensor

The LCR06 High-Temperature Tension Compression Load Cell is a robust, precision-engineered solution designed to thrive in the most challenging industrial environments. Constructed from high-quality stainless steel with welded, environmentally sealed protection, this load cell ensures durability and long-term reliability, even under extreme mechanical stress, temperature fluctuations, or corrosive conditions. Its advanced design integrates cutting-edge technology with versatile functionality, making it indispensable for industries requiring accurate force measurement across diverse applications.

Key Features

• Advanced Strain Gauge Technology: Utilizes metal foil strain gauges in a Wheatstone full bridge configuration, delivering stable and accurate measurements with non-linearity better than 0.3% of the full scale.
• Wide Capacity Range: Available in 500N, 1kN, 2kN, 5kN, and 10kN capacities to suit varying force measurement needs.

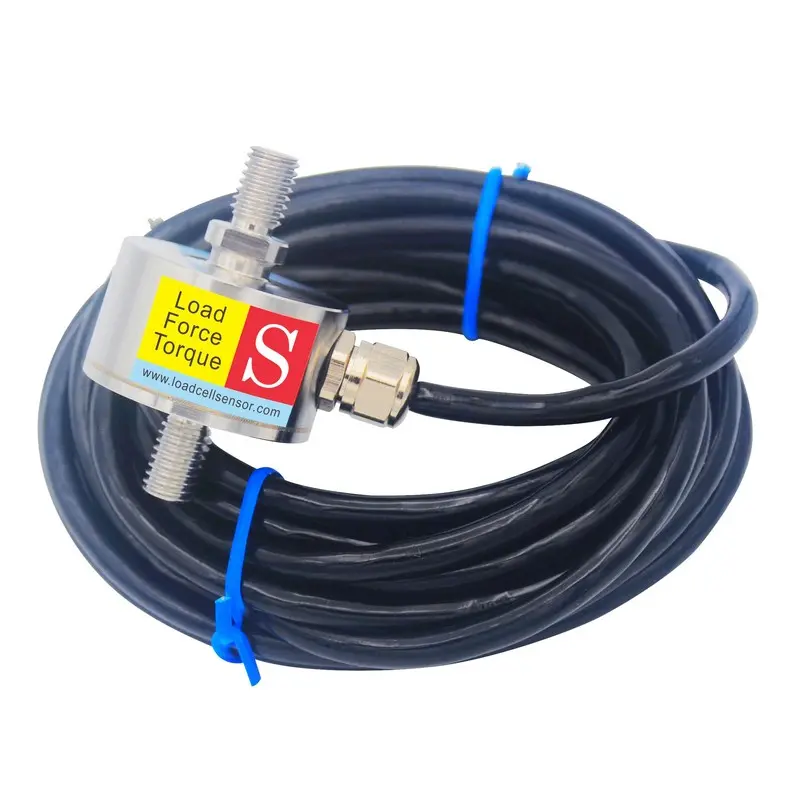

• Temperature Resilience: Operates seamlessly across two temperature ranges: -20°C to +65°C (standard) and -40°C to +120°C (high-temperature variant), ideal for extreme environments.
• Rugged Design: Stainless steel construction with IP67 environmental protection ensures resistance to moisture, dust, and chemical exposure.

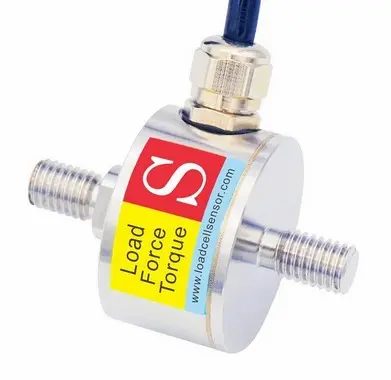

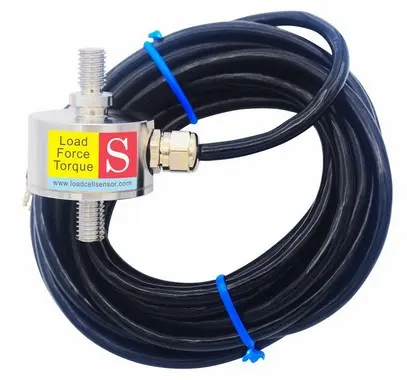

• Easy Integration: Features M8 male threads on both ends for straightforward installation in new or retrofit systems, paired with a 3-meter shielded 4-conductor cable for reliable signal transmission.
• Low Deflection: Maintains high precision with minimal nominal deflection, critical for repeatable measurements.

Typical applications of the LCR06 Threaded In-line Load Cell:

• Process Automation: In automated manufacturing systems, the LCR06 bidirectional force sensor monitors and controls force levels to ensure machinery operates within predefined parameters. For example, in automotive assembly lines, it verifies robotic arm clamping forces during component installation, preventing under- or over-tightening. Its high-temperature variant is particularly valuable in industries like glass manufacturing, where machinery operates in heated environments.
• Sim Racing Force Feedback: The LCR06 enhances realism in sim racing setups by measuring dynamic forces on pedals, steering wheels, and gear shifts. By translating real-world physics into responsive feedback, it creates an immersive experience for drivers. Its durability withstands intense, repetitive use, while its precision ensures accurate force replication.
• Quality Assurance Testing: In sectors like electronics and aerospace, the LCR06 validates product integrity by measuring forces during assembly. For instance, it tests solder joint strength on circuit boards or fastener tension in aircraft components. Temperature resilience allows it to perform reliably in climate-controlled testing chambers.
• Production Monitoring: The load cell ensures consistency in manufacturing processes by monitoring critical forces such as press-fit operations in gearbox assembly or stamping forces in metal fabrication. Real-time data from the LCR06 enables immediate adjustments, reducing waste and improving product quality.
• Material Testing: Laboratories and R&D facilities rely on the LCR06 to evaluate material properties under tensile and compressive loads. It is integral to testing construction materials like steel beams or polymers for automotive interiors, providing data on elasticity, yield strength, and failure points. The high-temperature model supports testing in environments simulating extreme operational conditions.

Custom Design Services
For specialized requirements, model LCR06 in-line load cell can be tailored to meet unique challenges. Customization options include:

• Modified Thread Sizes: Available with M6, M12, or custom threads, ensuring compatibility with legacy systems and easy integration.
• Extended Temperature Ranges: Designed to operate in extreme conditions, with sensors capable of handling temperatures up to +200°C.
• Custom Output Signals: Offering flexible output options like 0-5V, 0-10V or 4-20mA, allowing seamless integration with proprietary control systems.
• Higher Measuring Ranges: Available with rated capacities up to 200 tons, catering to heavy-duty applications requiring high-load measurement.
• Higher Level of Ingress Protection: Featuring an IP68 rating, these load cells are built to withstand harsh working environments with high resistance to dust and water ingress.

With over a decade of expertise, our team collaborates closely with clients to deliver bespoke solutions, even for small-batch orders, without compromising quality. The LCR06 push pull load cell stands out for its unmatched combination of precision, durability, and adaptability. Whether in a scorching foundry, a high-stakes sim racing rig, or a cutting-edge robotics lab, it delivers reliable data to optimize performance, ensure safety, and drive innovation. By integrating seamlessly into diverse systems and offering customization flexibility, the LCR06 is not just a tool—it's a strategic asset for industries committed to excellence.
