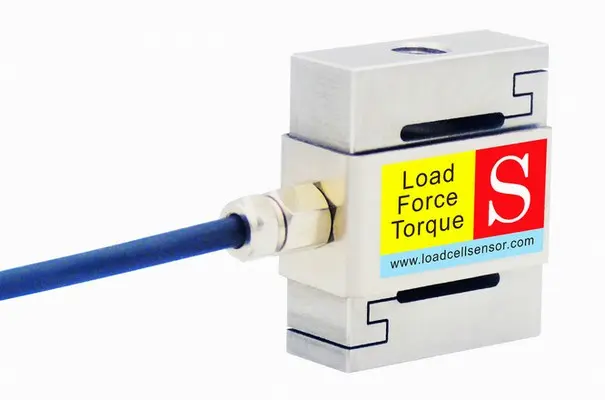

Miniature S-beam Force Sensor 500N 300N 200N 100N 50N

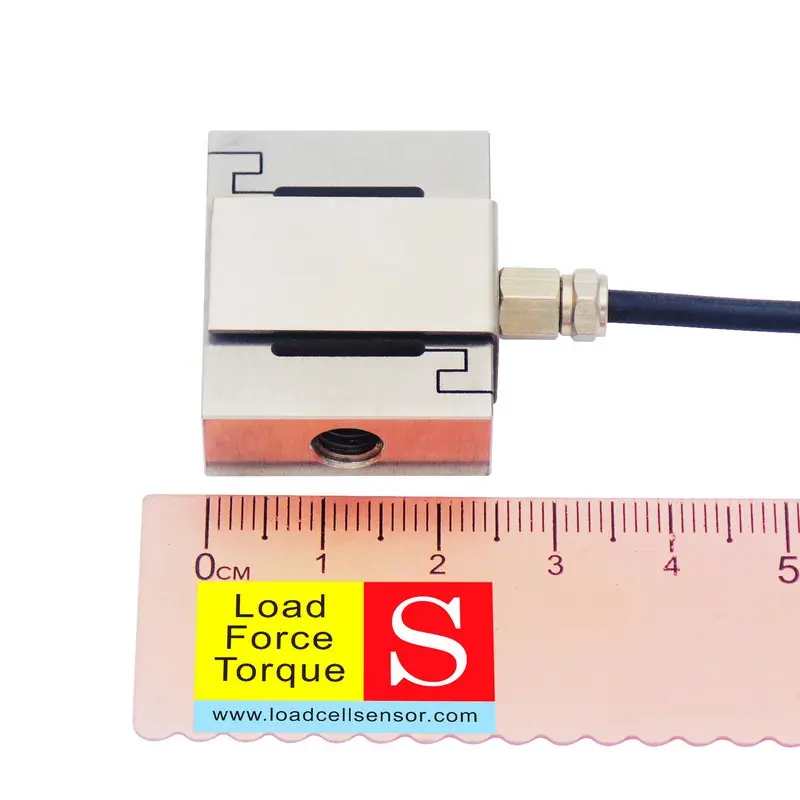

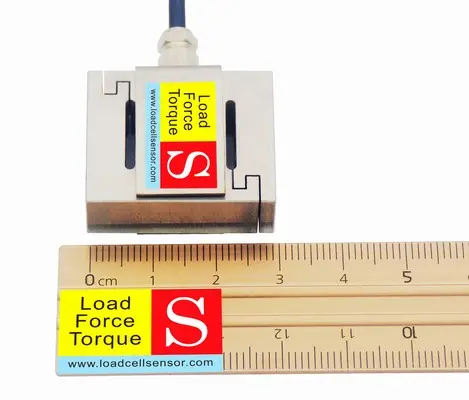

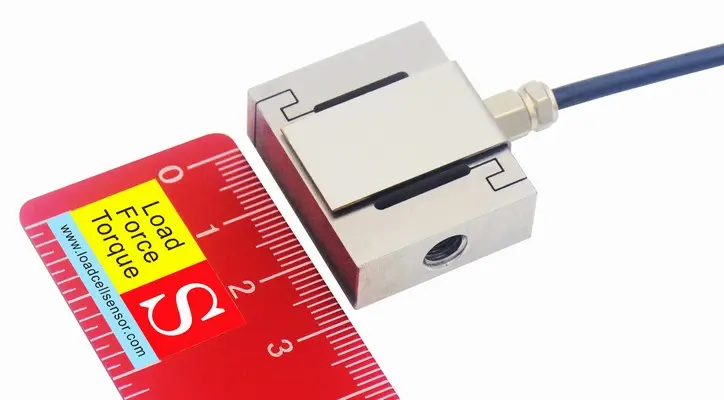

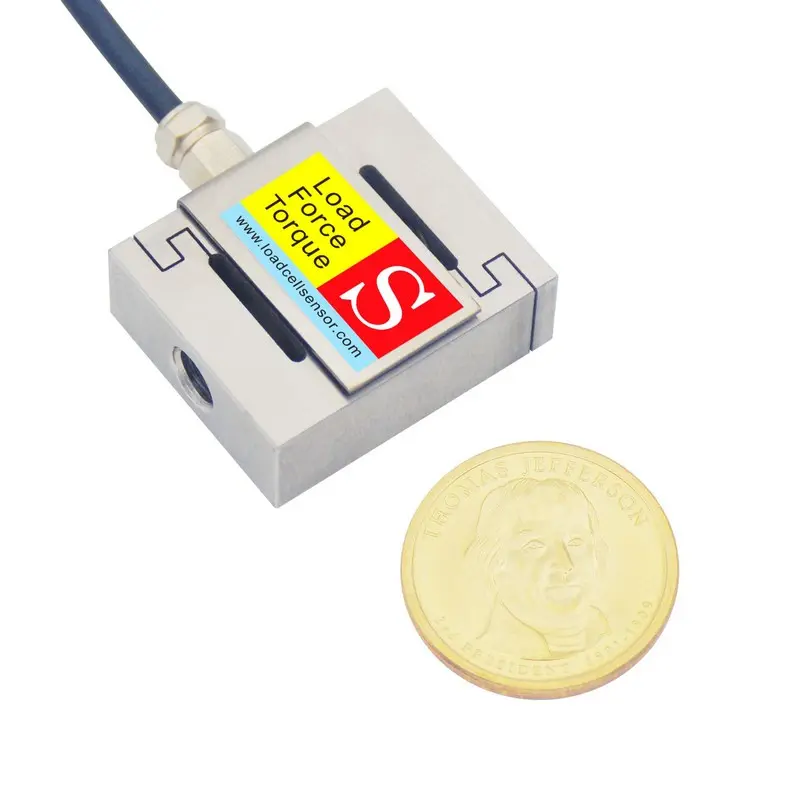

The LCSE miniature S type load cell is a high-precision, compact device designed to measure both tension and compression forces with exceptional reliability. Manufactured from premium stainless steel, this S-beam sensor provides excellent mechanical strength, long-term stability, and outstanding resistance to corrosion, ensuring consistent performance in demanding industrial environments as well as laboratory testing setups. Its small form factor allows for seamless integration into equipment with limited space while maintaining high accuracy and repeatability, making it ideal for applications where precise low-force measurement is required. The sensor is available in multiple rated capacities, including 50N, 100N, 200N, 300N, and 500N, providing flexibility to accommodate a wide range of force measurement requirements.

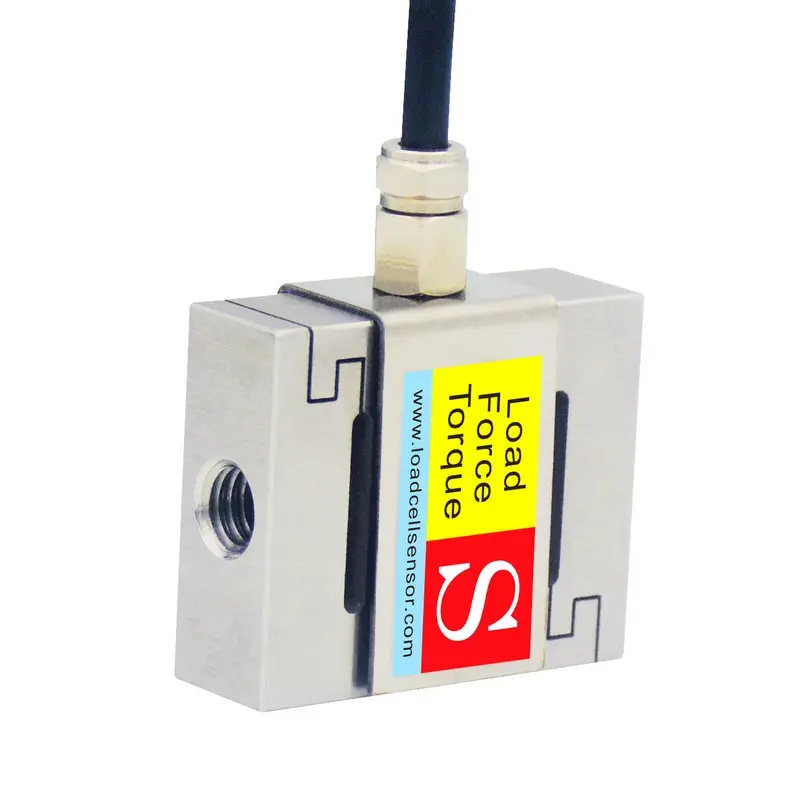

Designed as a push-pull force sensor, the LCSE load cell features M6 threaded mounting holes on both ends, allowing for secure and adaptable installation using hooks, eye bolts, load buttons, or threaded rods. This versatile mounting system enables quick integration into various test fixtures, assembly lines, or automated systems. In addition, the sensor can be customized to meet specific mechanical or performance requirements, offering tailored solutions for OEM equipment or specialized testing projects. Its durable construction and adaptable installation make it a reliable tool for monitoring, testing, and controlling forces in diverse industrial, research, and educational applications.

Typical applications of LCSE force detection sensor include:

• Connector insertion and extraction testing, providing precise measurements of assembly and disassembly forces in electronics and small components.
• Friction measurement systems, evaluating mechanical resistance in moving parts or materials.
• Spring testing machines, accurately determining compression and extension forces.
• Assembly line force monitoring, ensuring consistent and controlled force application during manufacturing.
• Button or switch actuation testing, measuring the actuation force of small mechanical components for quality control.
• Educational and research setups, offering reliable force measurement for laboratory experiments, prototype testing, and academic studies.
• Press-fit force verification, controlling and monitoring the force applied during component fitting or assembly processes.

Combining compact size, high precision, and flexible installation options, the LCSE miniature S-beam load cell delivers a practical and versatile solution for engineers, researchers, and manufacturers who require accurate tension and compression force measurement. Its robust design, corrosion resistance, and adaptability make it suitable for a wide range of applications, from OEM production to laboratory experiments. With dependable performance and customizable options, this sensor is an essential tool for any project or system where precise force monitoring and control are critical, offering peace of mind and enhanced reliability across all measurement tasks.
