M12/M16 threaded rod end load cell 0-5 ton bidirectional force cell

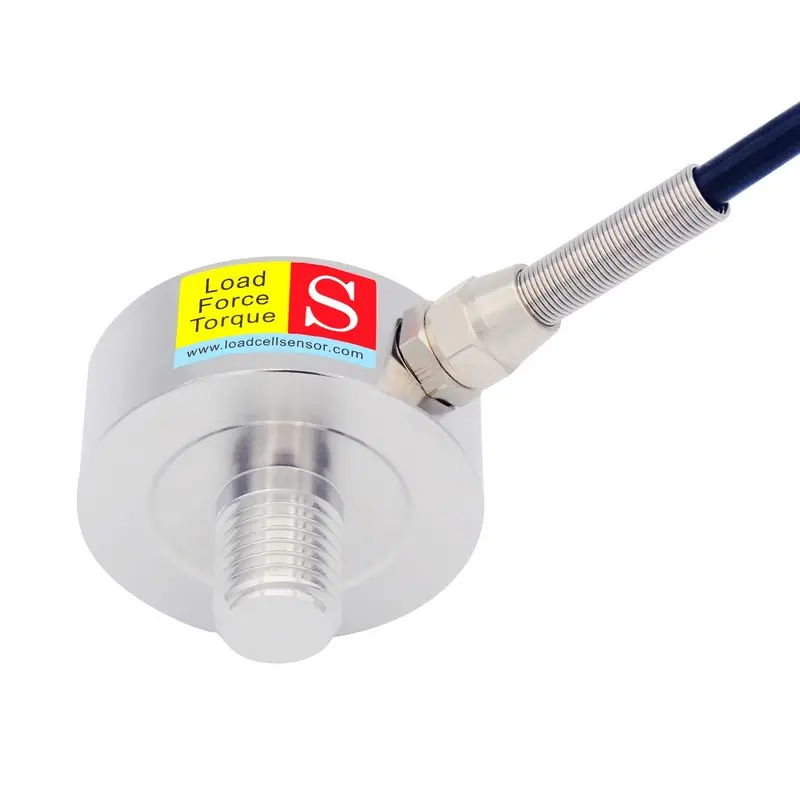

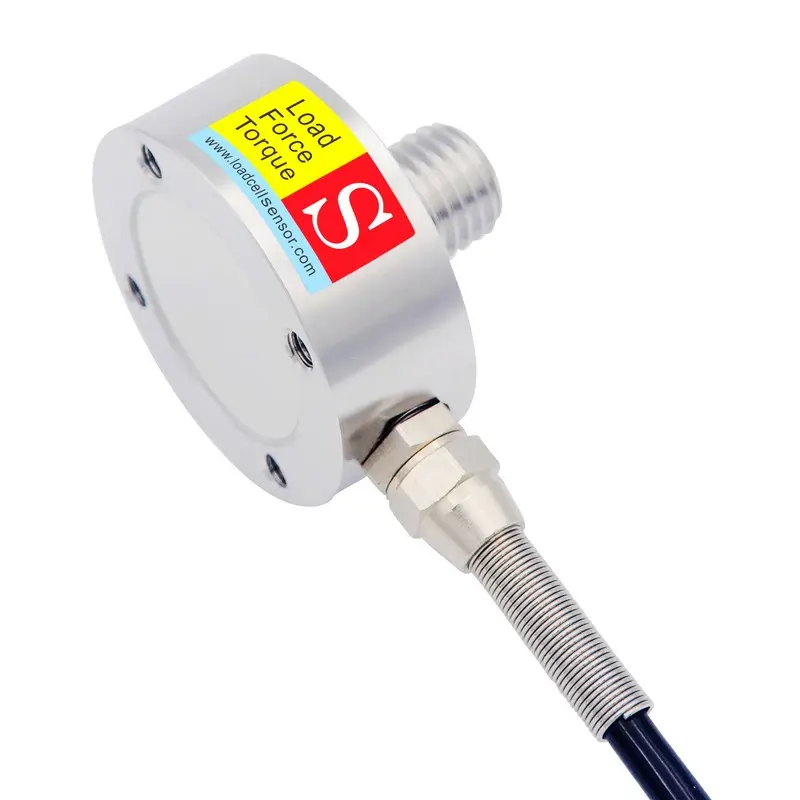

The rod end load cell LCR12 is a high-precision tension and compression sensor designed with M12/M16 male threads on the top of the transducer, facilitating easy connection with load structures such as inline actuators and hydraulic jacks. This robust sensor is ideal for applications requiring reliable force measurement and real-time feedback, ensuring optimal performance in various industrial and mechanical systems.

DATA SHEET

product details

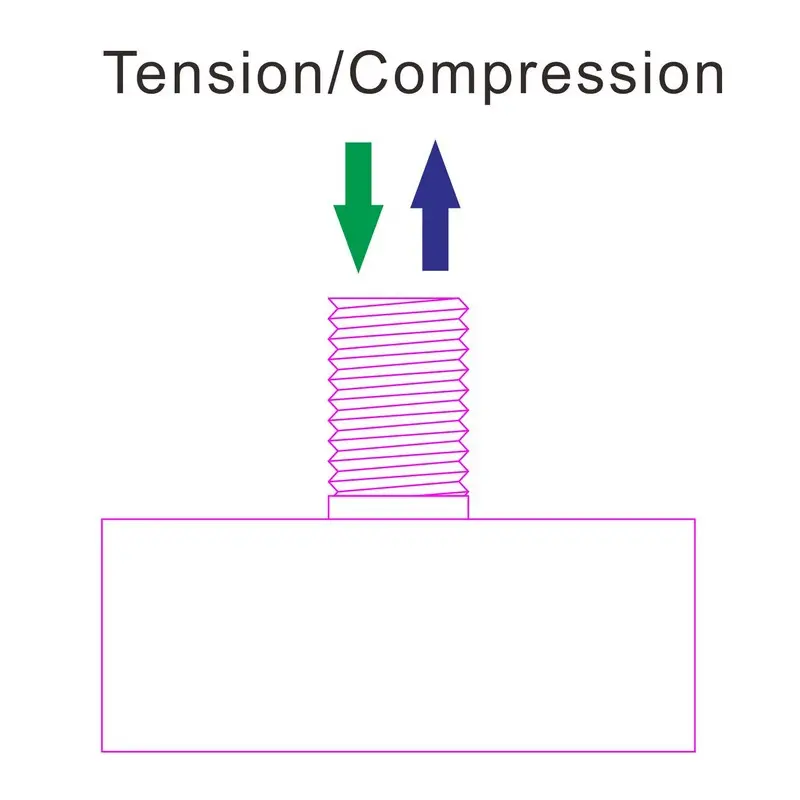

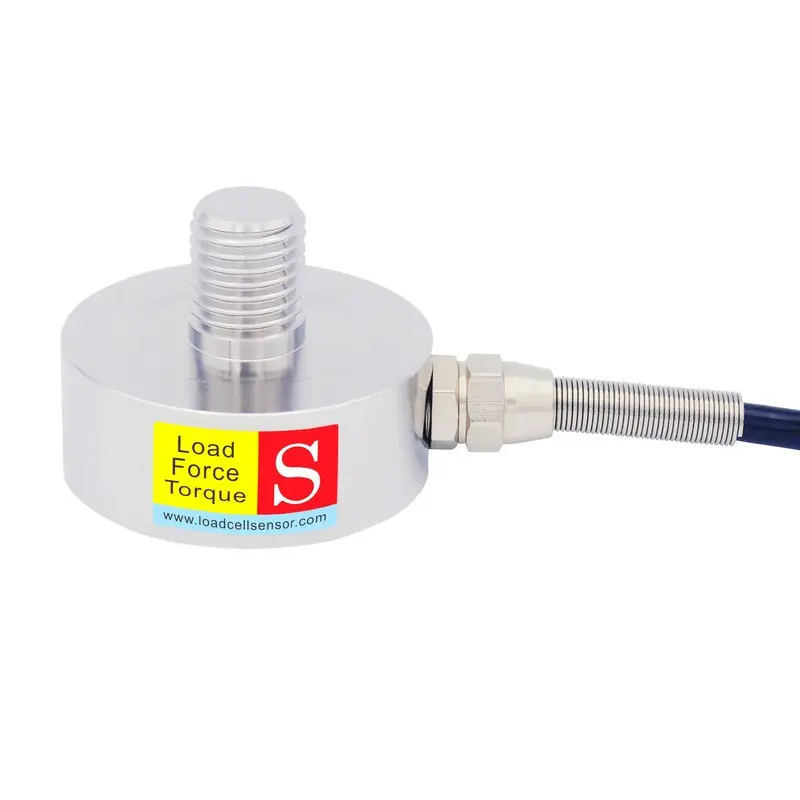

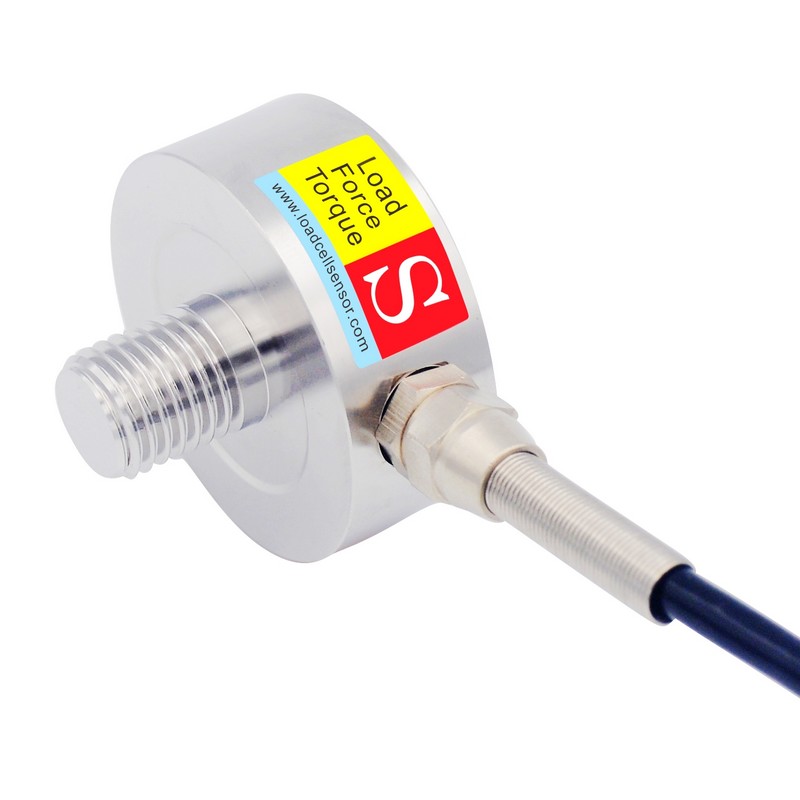

The tension compression sensor LCR12 is available in a wide range of rated capacities, including 50kg, 100kg, 200kg, 500kg, 1t, 2t, 3t, and 5 tons, allowing users to select the appropriate capacity for their specific needs. Constructed from high-quality stainless steel, the LCR12 boasts a diaphragm structure that contributes to its durability and precise measurement capabilities. The sensor’s rugged design ensures minimal deflection under load, maintaining consistent accuracy even in demanding conditions.

The force pressure sensor LCR12's robust construction makes it suitable for both static and dynamic force measurements, ensuring that it can withstand repetitive loading cycles without sacrificing performance. Whether used in process automation, construction equipment, or testing environments, this load cell provides dependable results.

For specialized measurement tasks, the bidirectional force cell LCR12 can be modified or customized to meet unique project requirements. Our team is experienced in working closely with clients to create tailored solutions that ensure the load cell integrates seamlessly with their systems. This adaptability makes the LCR12 rod end load cell an excellent choice for those seeking a dependable, versatile force measurement tool that combines precision, durability, and customizability.
