M6/M5 Rod end force sensor 50N 100N 200N 500N 1kN

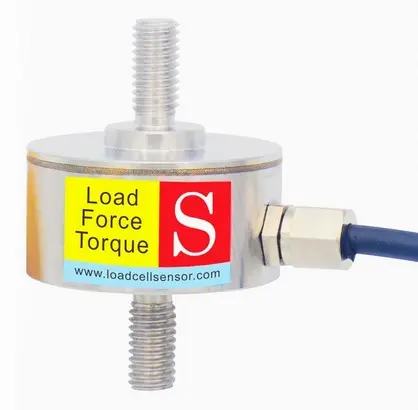

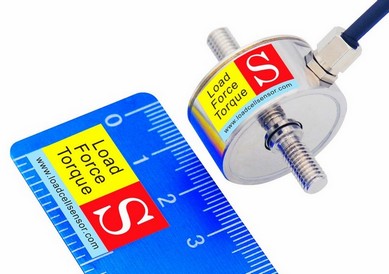

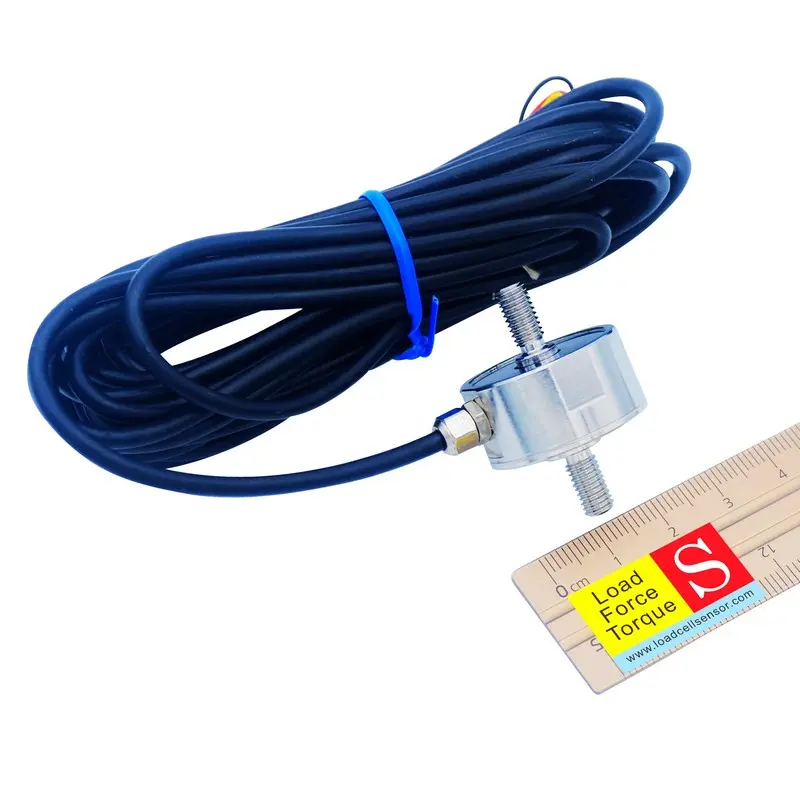

The LCR05 Tension And Compression Load Cell is a high-precision force sensor engineered for optimal performance in demanding applications. Constructed from durable stainless steel, the LCR05 features a cross-beam structure that enhances its ability to measure force accurately and reliably. Utilizing metal foil strain gauge technology, this load cell ensures precise force measurements with minimal error, making it a top choice for engineers in need of dependable force sensing solutions.

Designed with versatility in mind, the LCR05 rod end load cell operates with an mV output signal using a Wheatstone full bridge configuration, which can easily be converted into -5-5V, 0-10V, or 4-20mA signals by using an external signal conditioner. This adaptability allows it to integrate seamlessly with a variety of monitoring and control systems, making it ideal for a wide range of industrial applications. Whether for static force measurement or dynamic force feedback, the LCR05 provides reliable, real-time data for optimal performance. Renowned for its ruggedness and reliability, the LCR05 is a top choice for:

• Press-Fit & Crimping: Validating force in electronic component assembly or automotive wiring.

• Assembly Line Automation: Monitoring insertion forces for connectors, bearings, or seals.

• Process Control: Ensuring consistent tension in conveyor systems or cable manufacturing.

• R&D Testing: Prototyping ergonomic tools or evaluating material strength under cyclic loads.

• Robotics: Providing force feedback for collaborative robots (cobots) in precision handling tasks.

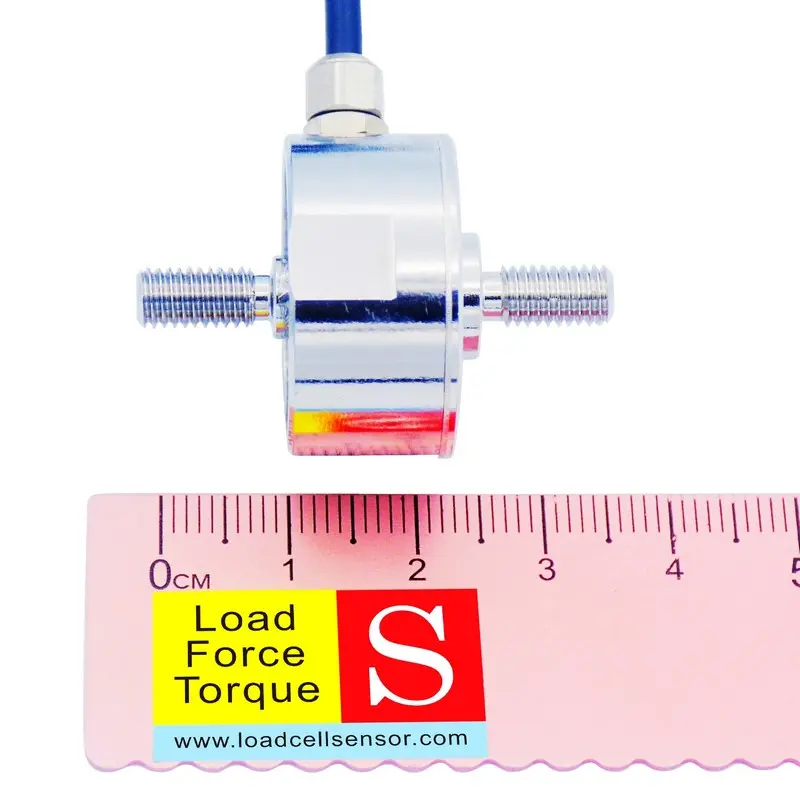

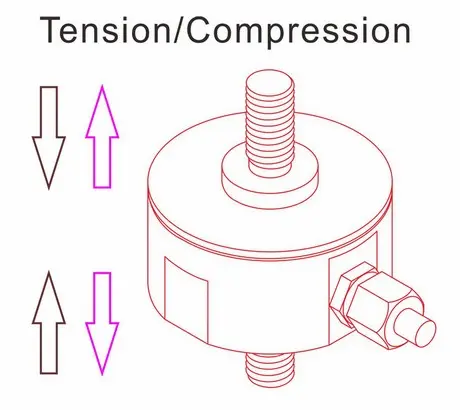

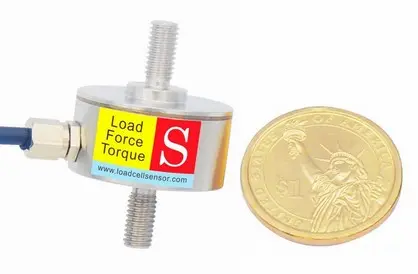

The LCR05 inline force sensor features M6/M5 threaded rods on both ends, ensuring straightforward installation in existing setups. Available in rated capacities of 50N, 100N, 200N, 300N, 500N, and 1000N, it is capable of measuring forces in both tension (traction) and compression directions, providing bidirectional force data. For best performance and to avoid damage, it is important to apply force along the axial direction of the screw to prevent shear forces that could lead to inaccuracies.

This rod end load cell is highly regarded for its robust design and versatility, excelling in a variety of applications such as control and feedback testing, press-fit and crimp force monitoring, assembly machinery, and process automation. Its compact and rugged construction supports precision while maintaining durability, making it a preferred choice for engineers and manufacturers seeking reliable force measurement components. With over 10 years of experience in load cell customization, we offer tailored solutions that meet specific project needs, ensuring the LCR05 delivers the exact performance required, whether for small batch orders or large-scale production.
