M6 Threaded Low Cost S Type Load Cell 2kg 5kg 10kg 20kg 50kg 100kg

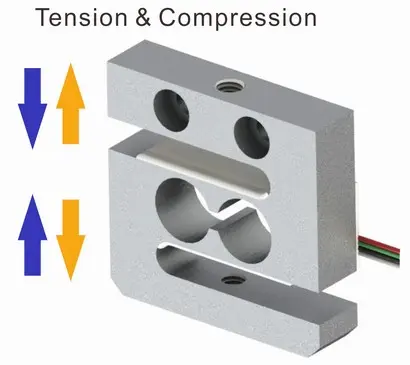

The LCS08 S-type Load Cell is a cost-effective, high-precision force sensor made from lightweight aluminum, designed for applications requiring bi-directional force measurement. Engineered for both tension and compression testing, this load cell is an excellent choice for budget-conscious users who still demand accuracy and reliability. Equipped with M6 tapped holes on both ends, the LCS08 allows for easy integration of eye bolts, threaded rods, load buttons, and various other accessories. This adaptability ensures that it can be quickly tailored to suit a wide range of mechanical and testing configurations, making it a flexible solution across multiple industries.

Built on proven strain gauge technology, the LCS08 incorporates a Wheatstone full bridge circuit, which ensures accurate force detection with a non-linearity of better than 0.03% of full scale. This level of precision makes it suitable for both low-capacity industrial tasks and laboratory-grade applications, where consistent and reliable results are essential. Rated capacities are available in 2kg, 5kg, 10kg, 20kg, 30kg, 50kg, and 100kg, offering users a wide selection to match the force range specific to their application. In addition, the sensor is temperature compensated, ensuring that performance remains stable across a wide operating temperature range. This makes the LCS08 ideal for use in controlled environments as well as areas where temperature fluctuations are unavoidable.

Despite its inexpensive pricing, the LCS08 does not compromise on functionality or accuracy. Its combination of lightweight construction, high sensitivity, and rugged design makes it one of the most popular S-type load cells in its class. Typical Applications of the LCS08 Aluminum S-Type Load Cell include:

• Bag Filling and Dosing Machines: The LCS08 is frequently used in automated packaging systems to monitor the force applied during filling or dosing operations. Its real-time feedback ensures accurate quantity control, reducing material waste and improving efficiency.
• Connector Plug and Pull Force Evaluation: In electronics and automotive assembly, the LCS08 is ideal for measuring insertion and extraction forces of connectors and terminals. This helps verify mechanical reliability and user safety while complying with quality standards.
• Dynamometers: The LCS08 serves as a core component in low-capacity dynamometers, allowing for precise measurement of torque and linear force in mechanical components such as motors or actuators during performance testing.
• Tabletop Tensile Testers: Due to its compact size and precision, the LCS08 S load cell is perfectly suited for benchtop tensile testing machines used in educational, R&D, or QC environments. It provides accurate readings of both pulling and pushing forces during material evaluation.
• Cylinder Thrust Force Feedback: In hydraulic and pneumatic systems, the LCS08 is used to monitor actuator thrust forces, enabling better control and diagnostics in automated machinery or test rigs where force verification is critical.
• Low-Capacity Suspended Hopper Weighing: The LCS08's tension measurement capabilities make it a great fit for weighing suspended hoppers with small capacities, commonly used in food processing, chemical batching, or laboratory-scale material dispensing.

In summary, the LCS08 aluminum S-type load cell offers a rare combination of affordability, precision, and flexibility. Its versatile mounting, compact form factor, and robust performance across a range of applications make it an ideal solution for engineers, technicians, and researchers who need reliable force measurement without stretching their budgets.
