Shaft Dynamic Torque Tranasducer 0-5Nm With Speed Encoder

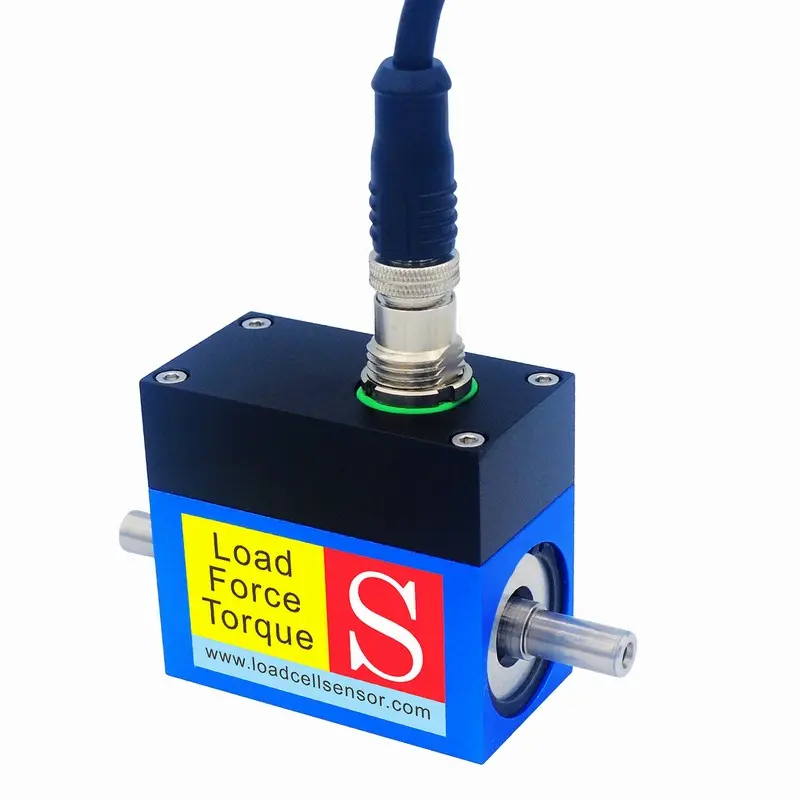

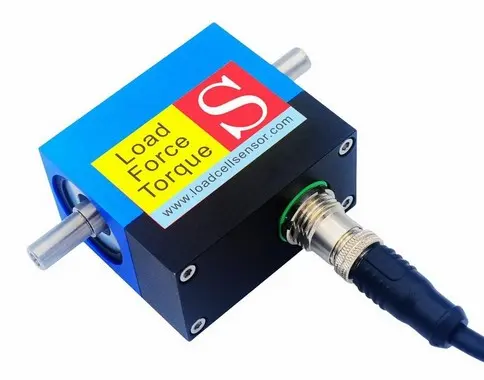

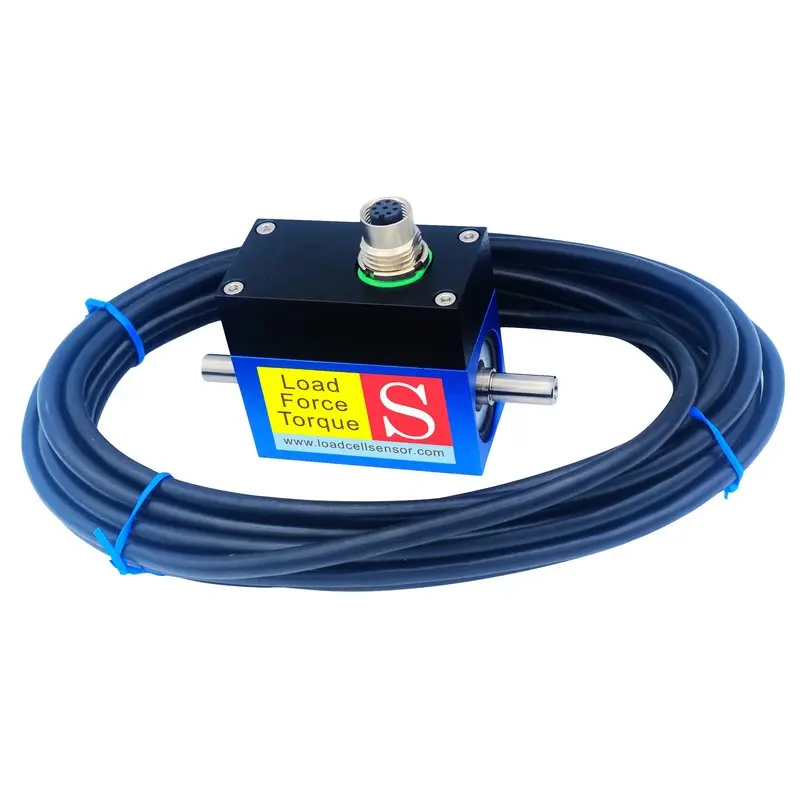

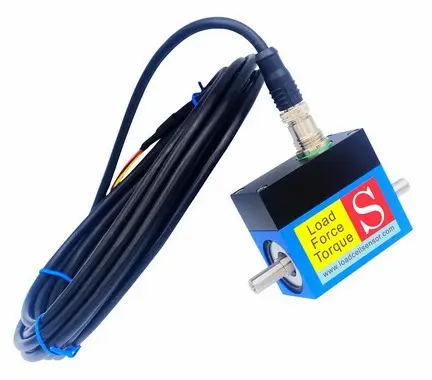

The RTS01 Non-Contact Rotary Torque Sensor is a cutting-edge device engineered to deliver accurate torque measurement in rotating systems, combining reliability with maintenance-free operation. Designed for in-line shaft-to-shaft integration via couplings, it employs contactless signal transmission technology to eliminate physical wear between the rotating axis and stationary receiver. This innovation ensures longevity and consistent performance, even in high-speed or continuous-use environments. With torque capacities ranging from 0.1Nm to 5Nm and a rotational speed capability of up to 8000 RPM, the RTS01 excels in both static and dynamic applications, providing precise data for critical decision-making in industrial and R&D settings.

Key Features of dynamic torque transducer RTS01:

• Non-Contact Signal Transmission: Eliminates mechanical wear, enabling maintenance-free operation and extended lifespan.
• High-Speed Performance: Supports rotational speeds up to 8000 RPM for dynamic torque measurement in fast-moving systems.
• Wide Torque Range: Six capacities (0.1Nm, 0.2Nm, 0.5Nm, 1Nm, 2Nm, 3Nm, 5Nm) cater to diverse precision needs.
• Versatile Outputs: Provides 0-5V, 0-10V, or 4-20mA analog signals for torque and speed, ensuring compatibility with PLCs, DAQs, and control systems.
• Bidirectional Measurement: Accurately captures clockwise (CW) and counterclockwise (CCW) torque for comprehensive analysis.

Typical applications of the RTS01 torque meter:

• Motor and Powertrain Testing: The RTS01 dynamic torque sensor is indispensable in motor test stands for evaluating the performance of electric motors, gearboxes, and drivetrains. By measuring torque and speed in real time, it helps engineers assess efficiency, power output, and mechanical losses. For example, in electric vehicle development, the sensor validates motor performance under varying loads, ensuring compliance with energy efficiency standards. Its ability to handle 8000 RPM makes it ideal for high-speed applications like turbocharger testing.
• Industrial Mixing and Stirring Systems: In chemical, pharmaceutical, or food production, maintaining consistent viscosity during mixing is critical. The RTS01 monitors torque in agitators and stirrers, detecting changes in fluid resistance that could indicate uneven blending or material degradation. By providing real-time feedback, it enables automated adjustments to mixer speed, ensuring product uniformity and reducing waste. Its non-contact design is particularly advantageous in sterile environments where sensor maintenance could disrupt production.
• Hinge and Mechanical Joint Fatigue Testing: Durability testing of hinges (e.g., in automotive doors, aerospace components, or consumer electronics) requires repetitive torque cycling to simulate years of use. The RTS01 measures torque during these tests, identifying wear points or design flaws that could lead to premature failure. Its bidirectional capability allows engineers to evaluate both opening and closing forces, while its high resolution (down to 0.1Nm) ensures precise detection of micro-cracks or material fatigue.
• Packaging Line Bottle Cap Tightening Verification: In beverage and pharmaceutical packaging, improperly sealed caps can lead to leaks or contamination. The RTS01 integrates into capping machines to verify tightening torque, ensuring each cap meets exact specifications. For instance, in a bottling plant, it ensures carbonated drink caps are sealed with enough force to retain pressure but not so much that containers deform. The sensor's 4-20mA output can interface directly with PLCs to trigger reject mechanisms for faulty packages, enhancing quality control.

The RTS01 stands out for its blend of precision, durability, and adaptability. Its contactless technology reduces downtime by eliminating mechanical wear. The sensor's analog outputs simplify integration into existing systems, making it a cost-effective upgrade for legacy equipment. Whether optimizing motor efficiency, ensuring mix consistency, validating product durability, or safeguarding packaging integrity, the RTS01 rotary torque meter delivers the accuracy and reliability needed to enhance operational efficiency and product quality.
