Dynamic Torque Sensor 0-500Nm Ratating Torque Transducer

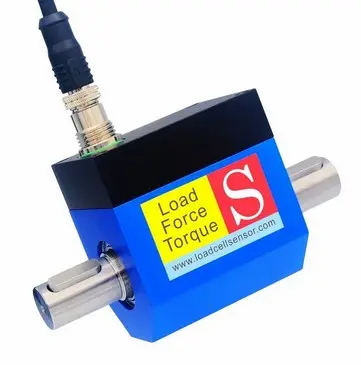

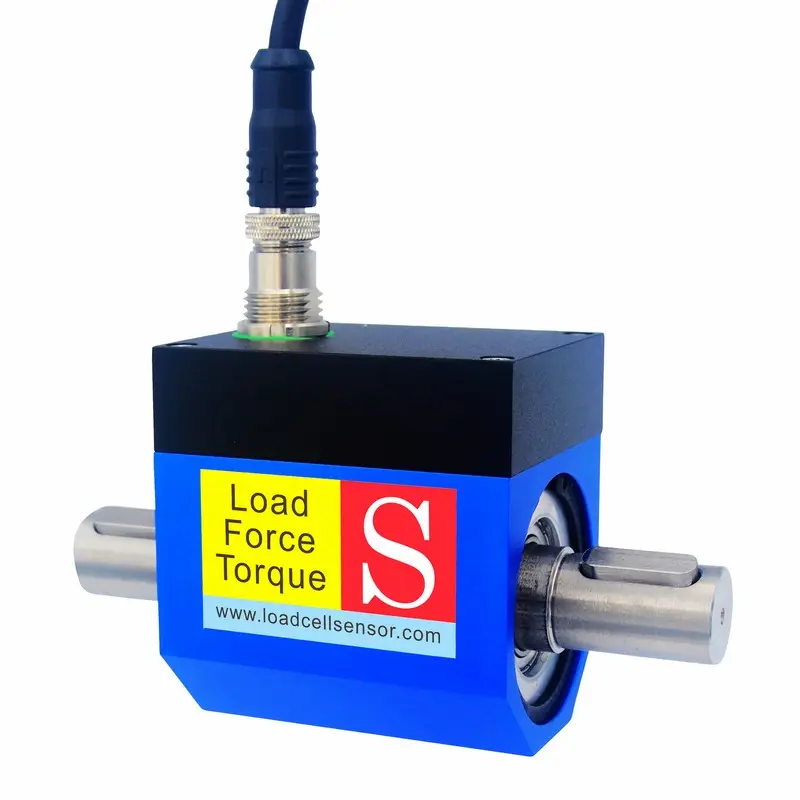

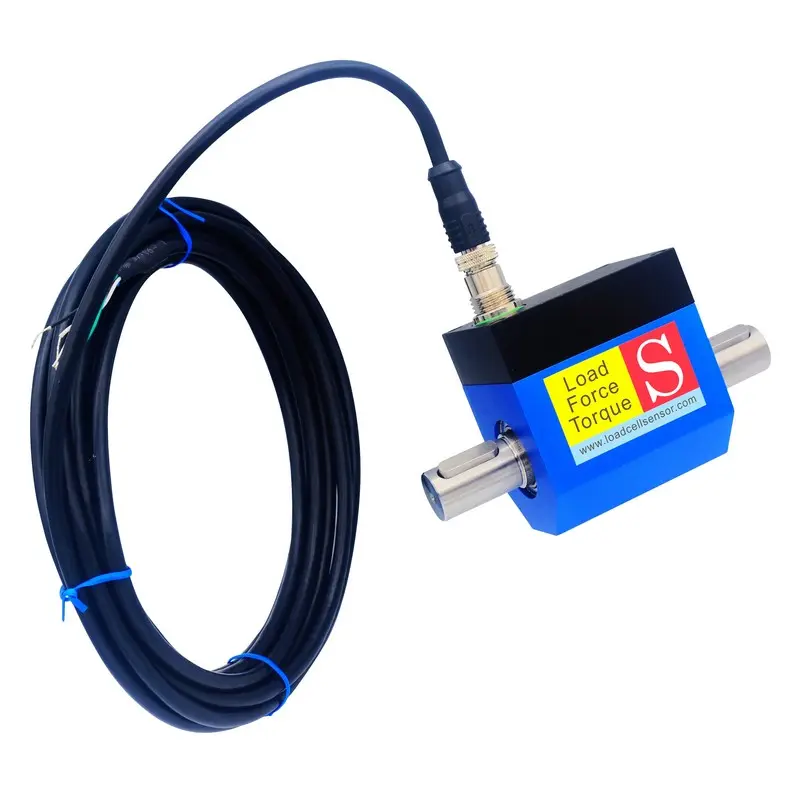

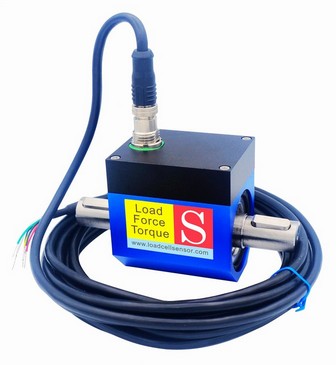

The Contactless Rotary Torque Sensor RTS02 is a cutting-edge instrument designed for precise and reliable measurement of rotating drive torque. It operates in an in-line shaft-to-shaft configuration, allowing seamless integration into various mechanical systems by mounting it between a power axle and a load shaft using couplings. This versatile setup enables stable operation in both static and dynamic applications. The most notable feature of the RTS02 is its contactless signal transmission, which ensures no mechanical contact between the rotating shaft and the fixed outer body. By using coils for signal transmission, the RTS02 eliminates the risks associated with wear and tear, resulting in a maintenance-free, durable design that ensures long-term reliability and performance.

This torque meter is available in a broad range of rated torque capacities, from 5Nm to 500Nm, to meet diverse measurement needs. Additionally, it is capable of measuring torque in both clockwise and anticlockwise directions, enhancing its adaptability for various testing environments. The RTS02 also includes a speed encoder, enabling the measurement of rotating speeds up to 8000 RPM. This feature is particularly useful for high-speed applications that demand precision and efficiency. The Dynamic Torque Transducer RTS02 offers flexible output signals in 0-5V, 0-10V, or 4-20mA, allowing for easy integration with a variety of signal processing and data acquisition systems. The outputs are proportional to both torque and speed, giving users the ability to monitor real-time performance data with accuracy and ease. The RTS02's advanced technology ensures that it delivers precise and consistent measurements in a wide range of applications.

Typical applications of the RTS02 Non-contact Rotary Torque Sensor

• Electrical Generator Efficiency Measurement: The RTS02 torque measurement sensor is ideal for assessing the efficiency of electrical generators. By measuring the torque output, engineers can determine the power conversion efficiency of generators. Accurate torque measurements help optimize generator performance and identify potential issues early on, ensuring optimal power generation.
• Motor Test Benches: Used extensively in motor testing, the RTS02 provides essential data for evaluating motor performance. The sensor's ability to measure both torque and speed is crucial for validating motor operation and identifying any inefficiencies. Its high-speed measurement capability (up to 8000 RPM) makes it suitable for evaluating various types of motors, including high-speed industrial motors and electric vehicle motors.
• Closure Torque Testing in Packaging: In packaging industries, ensuring the correct application of torque in closure mechanisms, such as bottle caps or jar lids, is vital to guarantee product integrity. Model RTS02 is used to monitor closure torque, ensuring that caps or lids are tightened with the correct force to prevent leaks, improve product shelf life, and maintain safety standards.
• Automation Process Control: The RTS02 plays a pivotal role in automation and robotics, where accurate torque control is necessary for smooth and precise operation. It helps in quality control by ensuring that automated systems apply the correct torque in processes such as assembly lines, robotic arms, or precision manufacturing. The sensor's contactless technology enhances its reliability in demanding, continuous operations.
• Vehicle Testing and Performance Validation: The RTS02 can be used in automotive testing, particularly for measuring the torque produced by engines, transmissions, and drivetrain systems. By accurately measuring the rotational forces, engineers can assess the efficiency, performance, and safety of various vehicle components, leading to enhanced vehicle designs and improved fuel efficiency.

The RTS02 rotating torque meter stands out as a reliable and versatile solution for torque measurement across diverse industrial and scientific applications. Its advanced non-contact technology, durable design, and flexible output options make it an invaluable tool for engineers and professionals. Whether for motor testing, torque measurement in packaging, or efficiency validation, the RTS02 ensures accurate and consistent results in a variety of demanding environments.
