Tension Sensor For Web Tension Measurement And Control

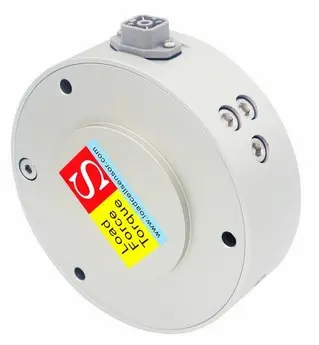

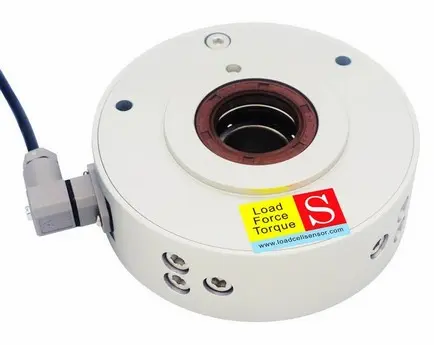

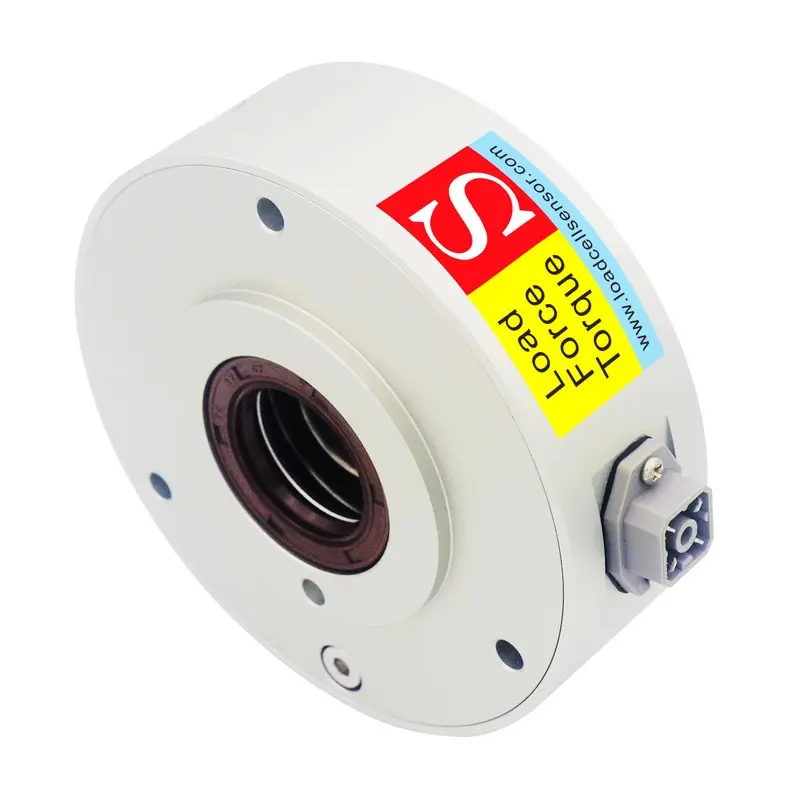

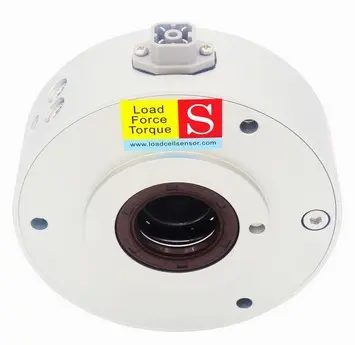

The STPD Web Tension Load Cell is a precision-engineered solution designed for direct tension measurement in moving webs such as paper, films, foils, and textiles. Its primary function is to determine the force exerted by the web material on a guide roller, which is connected to shaft-end sensors installed at both ends. This setup enables highly accurate and real-time web tension feedback, critical for maintaining product quality and process efficiency in fast-moving industrial environments.

The STPD roll load cell is available in four rated capacities—0.15kN, 0.3kN, 0.5kN, and 0.75kN—making it suitable for a wide range of web materials and tension ranges. Each unit is precision-trimmed for consistent sensitivity, which ensures that the output signal is uniform across sensors. This uniformity simplifies signal processing, maintenance, and sensor replacement, making it a reliable and user-friendly solution for machine builders and automation engineers.

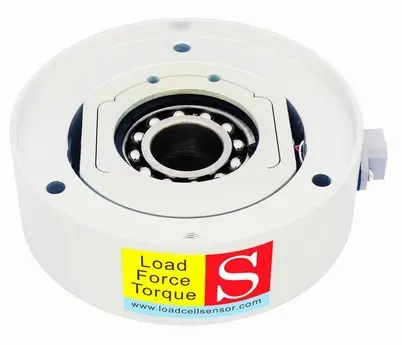

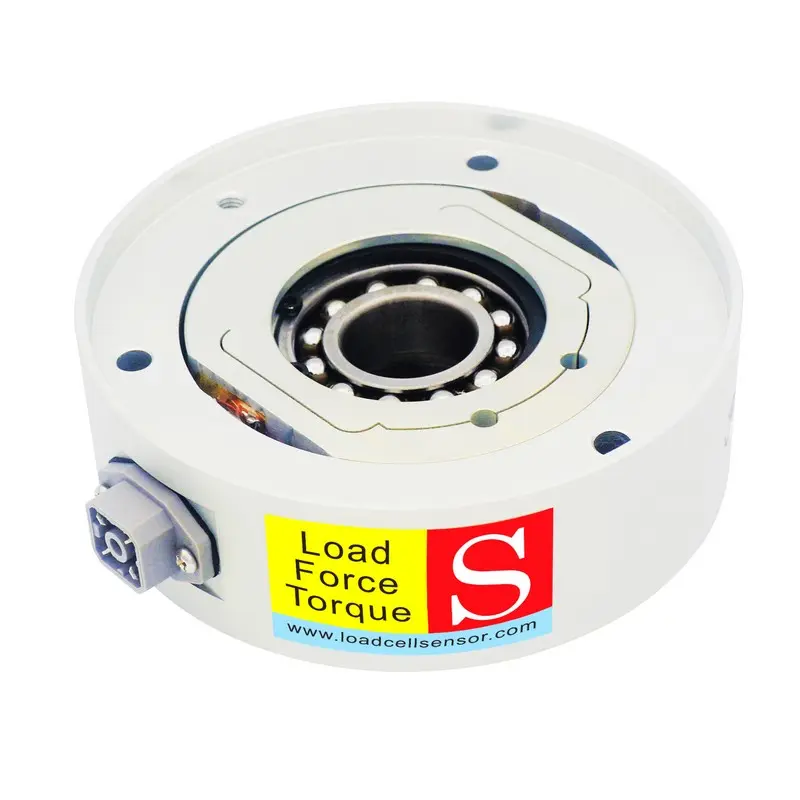

To accommodate different installation requirements, the STPD tension control sensor comes equipped with an internal bearing suitable for 25mm shaft diameters. For systems using different shaft sizes, custom bearing options are available upon request, ensuring seamless integration into existing mechanical setups.

In industries such as printing, packaging, paper production, and textiles, maintaining a consistent and controlled web tension is vital to ensuring high product quality and minimal machine downtime. Uncontrolled tension can lead to a range of issues, including misalignment, stretching, wrinkling, and breakage, all of which affect product quality and increase scrap and rework.

The STPD tension load cell plays a critical role in preventing such defects. It ensures that the winding and unwinding process is smooth, responsive, and optimized for speed and precision. Whether installed in new machinery or retrofitted into existing systems, the STPD sensor provides reliable performance and long-term stability, making it an ideal choice for manufacturers looking to enhance process control and operational efficiency.

For specialized applications, custom solutions are available to match the exact needs of your equipment and production requirements. This flexibility allows manufacturers to fine-tune their tension control systems for maximum performance and minimum waste.

Typical Applications of the STPD Tension Measurement Sensor

• Web Tension Control in Printing Presses: Maintains uniform tension during high-speed printing operations to ensure accurate registration, color alignment, and image clarity across the entire print run.
• Paper Roll Unwinding Tension Monitoring: Used in paper converting and roll-fed machinery to prevent tearing or misalignment during roll changes or splicing operations.
• Plastic Film Processing Lines: Ensures that thin films such as polyethylene or polypropylene are handled with optimal tension to avoid stretching or wrinkling, improving yield and consistency.
• Textile Fabric Tension Control: Applied in textile processing machines to maintain fabric tension during dyeing, drying, or coating processes, which is essential for dimensional stability and fabric quality.
• Flexible Packaging Film Tension Measurement: In packaging systems, proper tension ensures smooth feeding of flexible films, reducing jams, uneven seals, or print misalignment.
• Coating and Laminating Equipment: Controls the tension of both base material and coating or laminating films to ensure smooth application, uniform thickness, and proper adhesion.
• Foil and Metal Strip Production: Used in metal processing to control the winding and unwinding of delicate materials like aluminum or copper foils, minimizing breaks and improving roll uniformity.

In summary, the STPD Web Tension Sensor is an indispensable component for any web-based production system that demands high precision, consistent output, and reliable performance. With a range of capacities, customizable options, and easy integration, it supports continuous improvement in product quality and process stability across multiple industries. Whether you're working with paper, film, fabric, or metal foil, the STPD delivers accurate and efficient tension control that enhances every stage of the production process.
