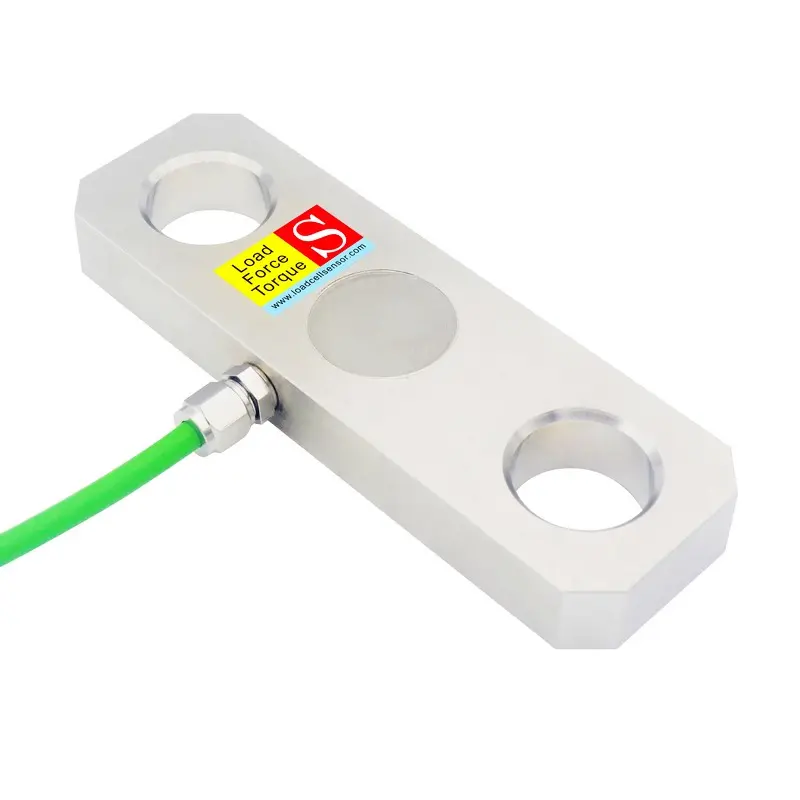

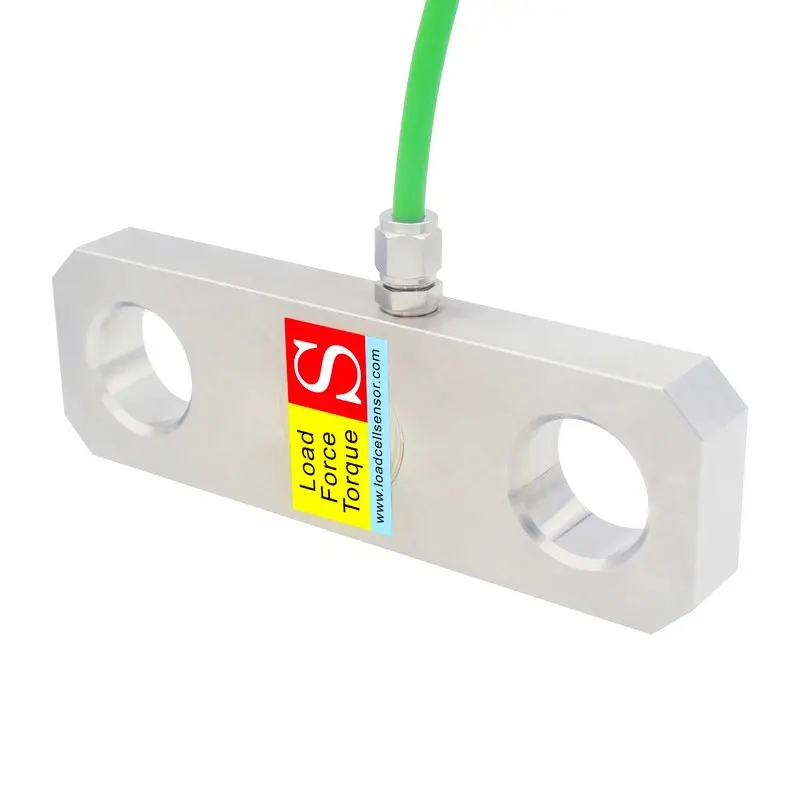

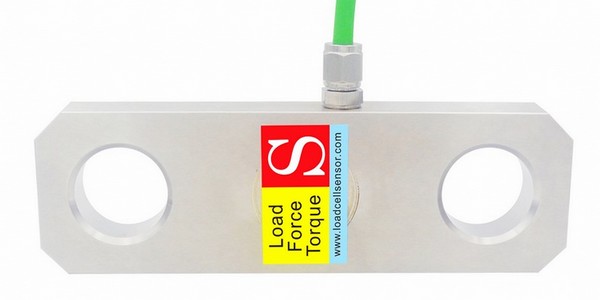

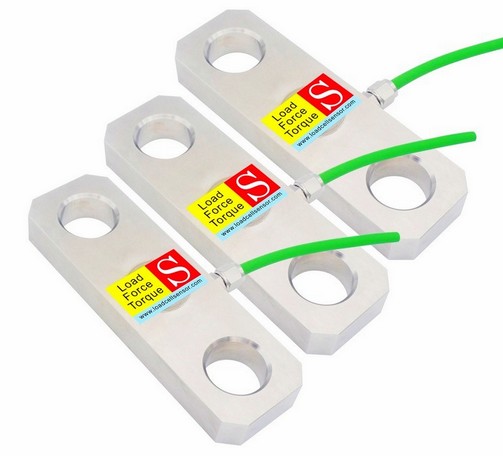

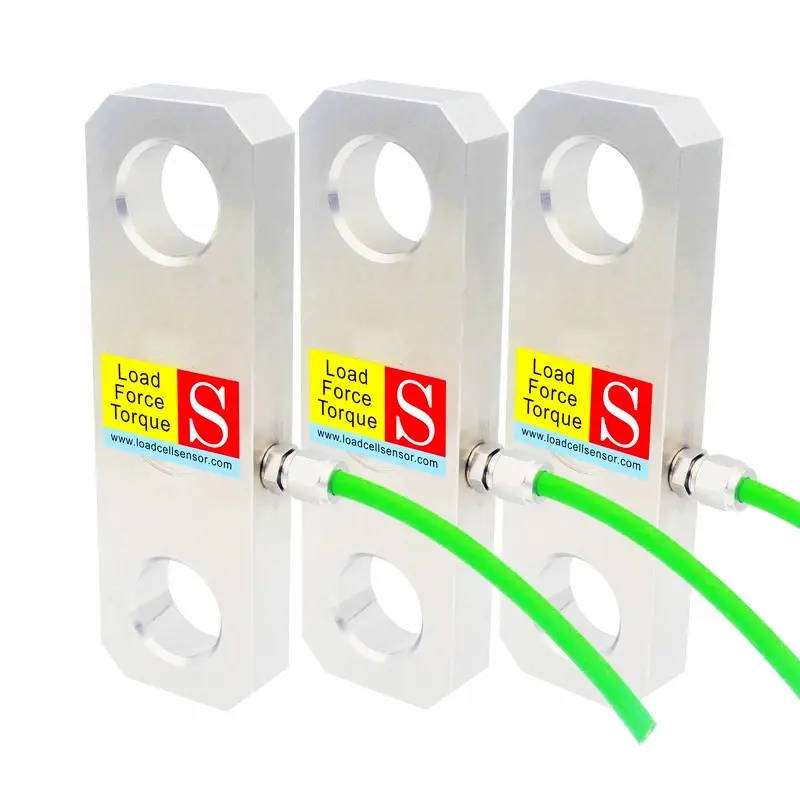

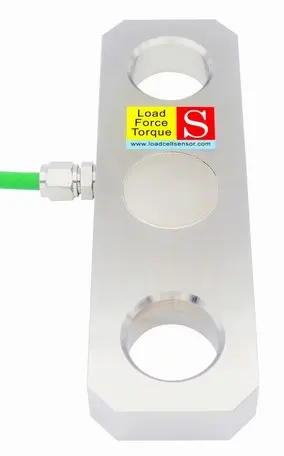

IP68 Waterproof Tension Link Load Cell 0-100ton

The TLD series tension link load cell is a high-performance force measurement solution designed to deliver accuracy, durability, and reliability even under the harshest working conditions. Constructed from premium stainless steel and featuring a fully hermetically sealed design with an IP68 protection rating, the TLD is engineered to withstand water, dust, and corrosive environments. This robust construction makes it exceptionally suitable for both tension and compression force measurement in demanding industrial and marine applications.

The TLD tension link load cell is available in a wide range of rated capacities, including 3t, 5t, 10t, 20t, 30t, 50t, and 100t, ensuring flexibility to match diverse operational requirements. Its versatile performance makes it equally effective in precision lifting, load monitoring, and structural testing tasks. The symmetrical link design allows it to be easily installed between shackles or lifting equipment, providing a safe and convenient way to capture real-time load data without disrupting existing workflows.

One of the core strengths of the TLD tension link load cell lies in its adaptability to critical force monitoring applications. For example, it is widely used in mooring line tension monitoring, where accurate measurement of cable forces is essential to ensure the stability and safety of ships under varying sea conditions. In offshore oil rig lifting and load monitoring, the TLD ensures heavy loads are managed securely and prevents the risk of overload incidents. Similarly, it plays a vital role in bridge cable tension monitoring, helping engineers verify the integrity and performance of structural components over time. The device is also frequently employed in port and harbor lifting equipment safety checks, where accurate load feedback is required to guarantee operational safety during cargo handling. Beyond industrial operations, the TLD load cell is also valuable in underwater mechanics experiments and analysis, supporting research institutions and laboratories that require dependable force data in submerged conditions.

To meet the unique requirements of subsea applications, LCS Tech Co., Limited also offers customized tension load cells capable of operating at submersion depths of up to 3000 meters. These specialized designs maintain the same high accuracy and ruggedness as the standard TLD models, but with enhanced sealing and protection to ensure reliable performance in deep-sea environments. This capability makes the TLD series an ideal choice for oceanographic research, subsea construction, and underwater force monitoring where conventional sensors would fail.

With its combination of stainless steel construction, IP68 hermetic sealing, broad capacity range, and customization options, the TLD tension link load cell provides a dependable solution for industries requiring accurate and reliable tension and compression measurements. Whether for heavy-duty lifting operations, structural integrity testing, or specialized subsea projects, the TLD stands out as a trusted tool for engineers and operators worldwide.
