Miniature Flanged 2D Load Cell 0-1kN Biaxial Force Sensor

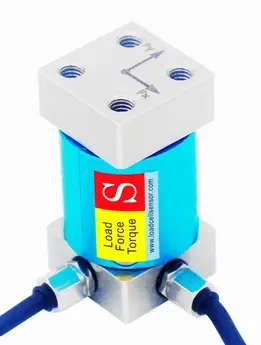

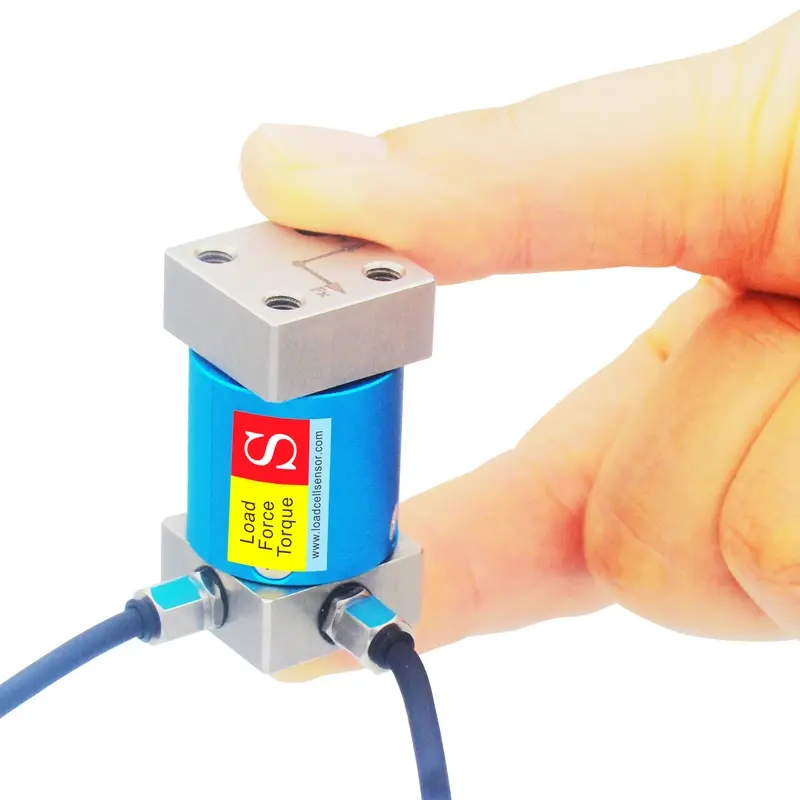

The LCM2A is a strain gauge based miniature 2-axis load cell designed to measure force simultaneously along the Fx and Fy axes. With eight selectable capacities from 10N to 1kN, including 10N, 20N, 50N, 100N, 200N, 300N, 500N, and 1kN, this sensor provides a flexible solution for applications involving light and medium loads. Both measurement axes support tension and compression, allowing accurate detection of forces in two opposite directions for pushing and pulling applications. The mV/V output of each axis changes proportionally with the applied force, providing a straightforward signal for force monitoring and control. When combined with a suitable signal conditioner, the output can also be converted to 0-5V, 0-10V, or 4-20mA.

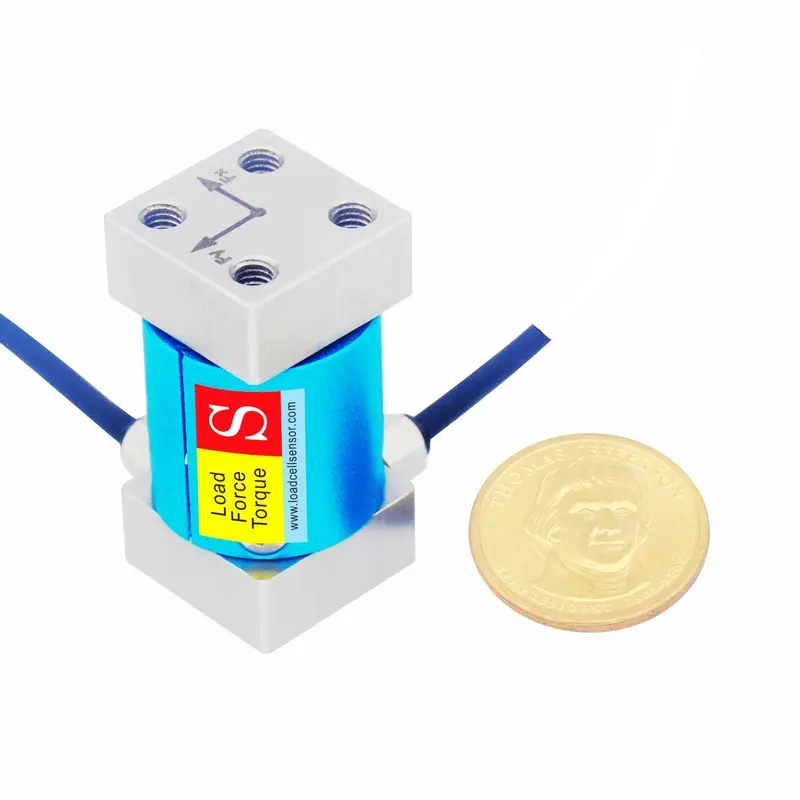

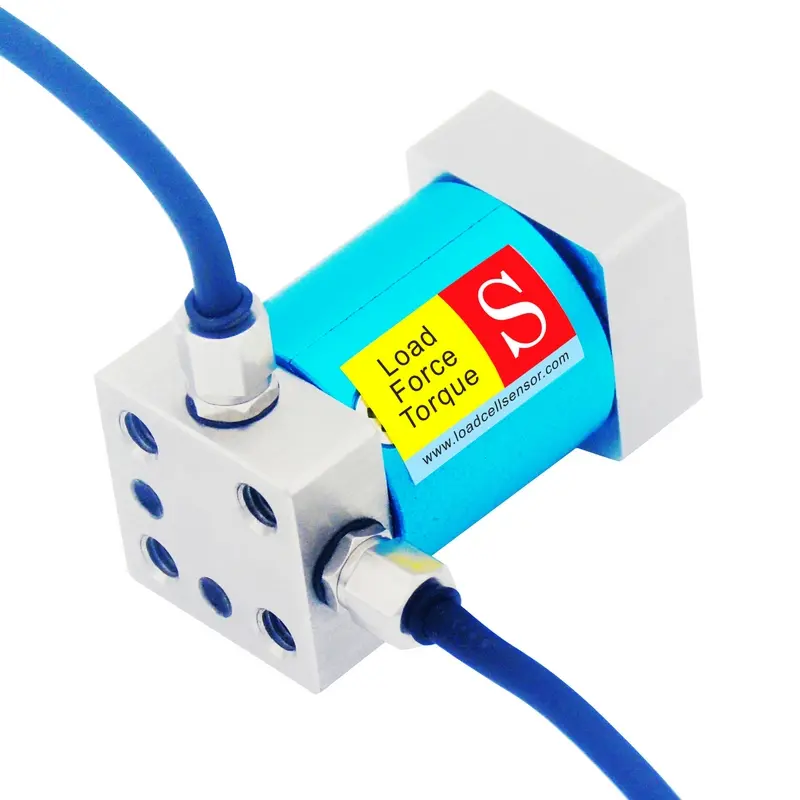

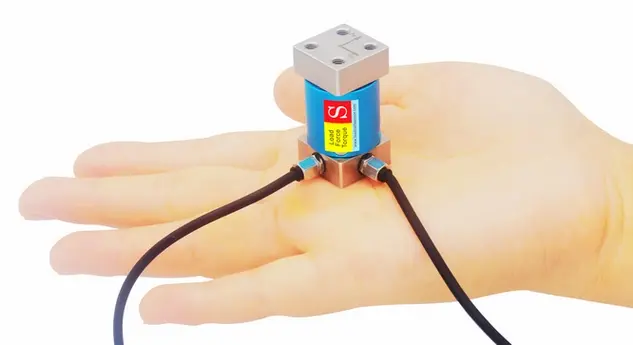

Featuring flange mounting surfaces on both ends, the LCM2A is a practical flange type 2-axis force sensor for applications requiring simple mechanical integration. One flange can be secured to a fixed structure, while the opposite flange serves as the force-loading interface. This configuration provides a convenient way to incorporate the sensor into custom mechanisms, test fixtures, robotic assemblies, and automated equipment. Its compact construction minimizes the required installation space while maintaining reliable two-directional force measurement, making it especially suitable for systems where both sensor performance and limited mounting space are important considerations.

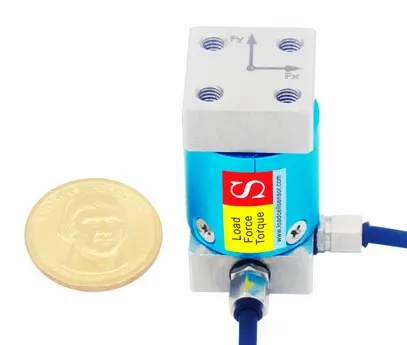

As a flange mounted biaxial load cell, the LCM2A combines a compact mechanical structure with independent Fx and Fy force measurement. It can be used for robotics, precision assembly, material testing, biomechanical research, automated process control, and force feedback systems. The small footprint also makes this compact 2D load cell suitable for integration into machinery and equipment where conventional multi-axis force sensors may be too large.

For specialized projects, the LCM2A can be customized according to specific application requirements. Available customization may include sensor dimensions, rated capacity, mechanical configuration, cable specifications, and other electrical or performance parameters. This flexibility makes the LCM2A a versatile choice for engineers seeking a compact and dependable solution for two-dimensional force measurement, monitoring, and feedback.
