LCS Tech Develops Custom Force Cell Solutions to Replace Futek Load Cells

FUTEK is a globally recognized leader in precision load cells, torque sensors, multi-axis Force Sensors, and measurement instrumentation. Its high-performance sensing solutions are widely used across medical, robotics, automotive, aerospace, research, and industrial applications, earning a strong reputation for innovation, engineering excellence, and stringent quality standards. However, while FUTEK products are highly regarded for their accuracy and reliability, some customers seek more cost-effective alternatives when replacing damaged sensors, upgrading existing systems, or purchasing larger quantities for OEM and industrial projects.

For customers seeking a cost-effective alternative without compromising quality, LCS TECH offers fully custom-made load cell replacements tailored to match the performance and installation requirements of existing FUTEK sensors. Our goal is to provide reliable force measurement solutions at a more attractive price point while maintaining the accuracy, durability, and consistency required by demanding applications.

LCS TECH's confidence is built upon more than 20 years of experience in strain gauge-based load cell design and manufacturing. Throughout this time, we have developed a comprehensive product portfolio that includes button-type load cells, S-beam load cells, pancake load cells, threaded in-line load cells, flange-mounted load cells, washer-type load cells, single-point load cells, multi-axis force sensors, and torque transducers.

Beyond our standard product range, customization is one of our core strengths. We have extensive experience designing sensors for unique applications where standard products are not suitable. Our customization capabilities include:

•    Capacity range from 100 g to 200 tons
•    Outer diameters starting from 6 mm
•    Heights starting from 4 mm
•    Operating temperatures ranging from -40°C to +200°C
•    Ingress protection solutions suitable for submersible applications up to 4,000 meters
•    Material options including aluminum, alloy steel, stainless steel, and titanium alloy

Unlike many manufacturers that require high minimum order quantities for custom products, LCS TECH offers exceptional flexibility. Depending on the specific design and manufacturing requirements, our minimum order quantity for custom load cells can start from as low as 1 to 5 pieces. This approach benefits customers who require a direct replacement for a damaged sensor, as well as OEMs and system integrators looking for larger-volume production solutions.

To ensure the performance and reliability of every custom-made load cell, each unit is supplied with an individual in-house calibration certificate. The certificate provides detailed load-versus-output data, allowing customers to verify sensor performance and maintain complete traceability. This commitment to quality helps ensure that every customized sensor meets the specified performance requirements before delivery.

Whether you need a direct replacement for an existing FUTEK load cell or a completely new sensor designed around your application, LCS TECH has the engineering expertise, manufacturing capability, and flexibility to deliver a reliable and cost-effective solution.

The following examples showcase some of our custom load cell projects and demonstrate the wide range of solutions we have successfully developed for customers worldwide.

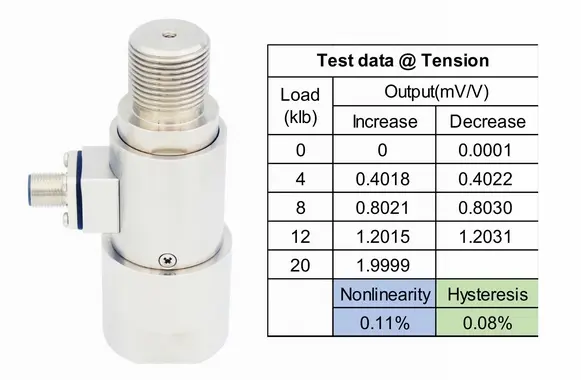

Rod end load cell with 20klb capacity to replace Futek LCB450 FSH04004:

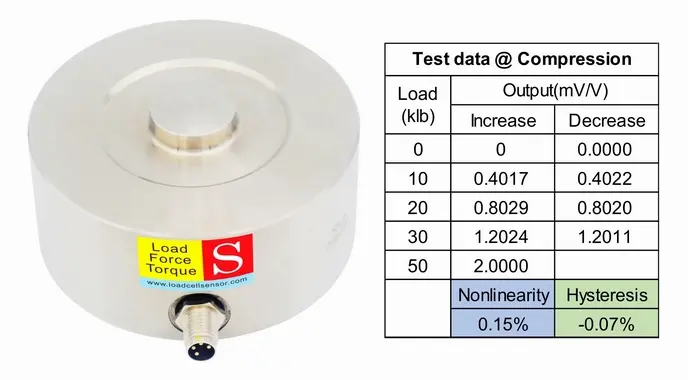

Button type load cell with 50klb capacity to replace Futek LLB550 FSH04536:

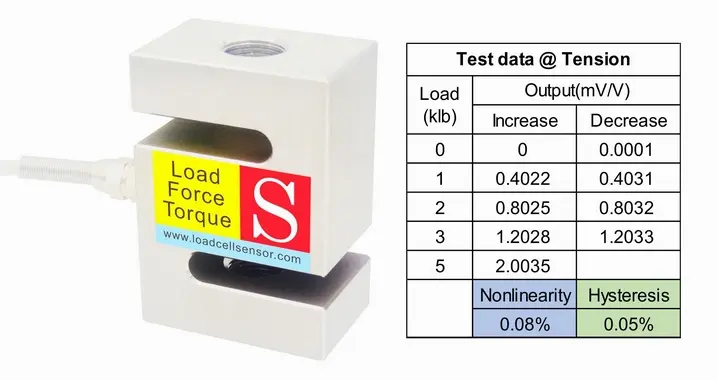

S beam tension and Compression Load Cell with 5000lb capacity to replace Futek LSB400 FSH02064:

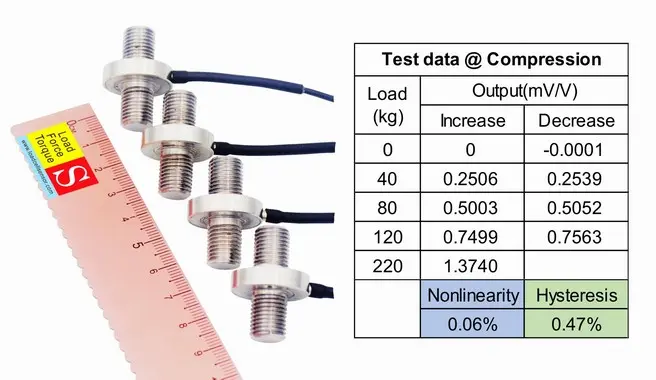

Miniature Threaded In Line Load Cell 220kg to replace Futek LCM200 FSH03904:

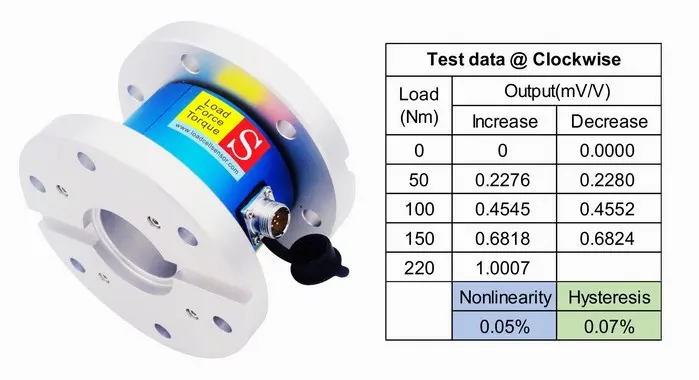

Hollow Flange-to-Flange Reaction Torque Sensor to replace Futek TFF600 FSH04020:

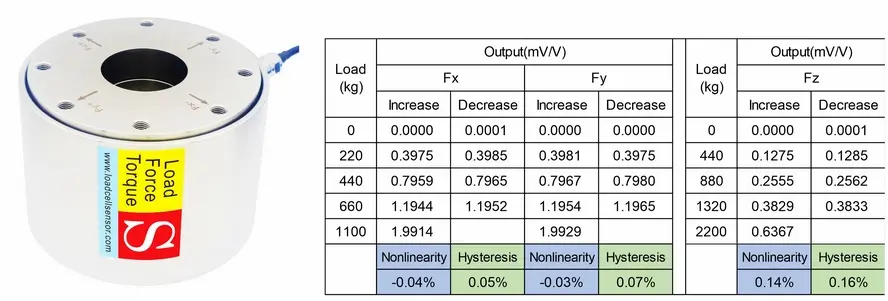

Through-hole flange type triaxial load cell to replace Futek MTA600 FSH04135:

If you are looking for a replacement load cell for a Futek sensor or an equivalent solution for load cells from other manufacturers, contact us at sales@loadcellsensor.com. Our custom-engineered load cells are designed to meet your exact application requirements while delivering reliable performance, competitive pricing, and flexible customization options to help optimize your business.
