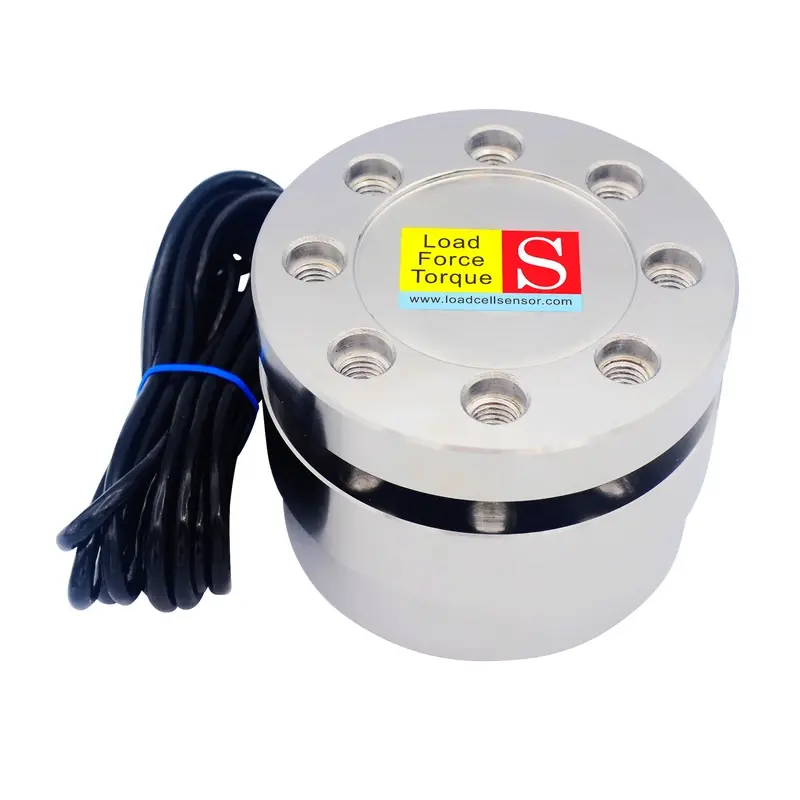

Flange Type Tension Compression Force Sensor 500N-200kN

The LCF09 flange type force sensor is a high-performance solution developed for precise bidirectional force measurement in industrial automation, testing equipment, and process control systems. Designed as a reliable tension and compression load cell, it provides accurate force detection in both pulling and pushing directions, making it suitable for demanding applications where consistent measurement performance is required.

Featuring a robust flange structure at both ends, the LCF09 can be directly installed between mechanical components, offering a rigid connection and simplified system integration. This flange mounted force transducer is manufactured from high-strength stainless steel and incorporates a diaphragm sensing design, ensuring excellent mechanical strength, long-term stability, and improved resistance to side loads and off-axis forces. Its compact construction allows reliable operation even in environments where installation space is limited.

With measurement capacities ranging from 500N to 200kN, the LCF09 industrial load cell meets a wide variety of force monitoring requirements, from precision testing systems to heavy-duty industrial machinery. The sensor supports both static and dynamic force measurement, providing dependable feedback for real-time monitoring and closed-loop control applications. Various mounting dimensions and customizable configurations enable easy adaptation to different equipment designs and application requirements.

The LCF09 is widely used in press-fit assembly and servo press force control, bearing installation force monitoring, material testing and mechanical load testing, hydraulic and pneumatic force measurement, robotic force feedback, and industrial automation control systems. It is also suitable for quality inspection, production process monitoring, structural durability testing, and injection molding clamping force monitoring, where accurate and repeatable force measurement is essential.

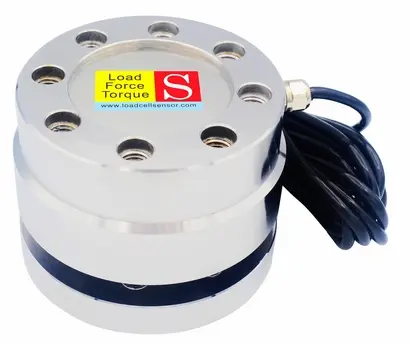

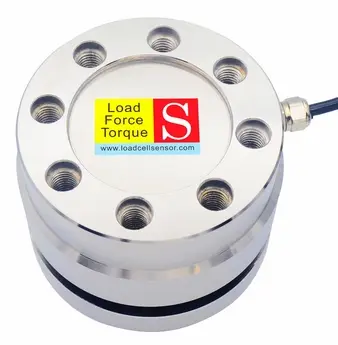

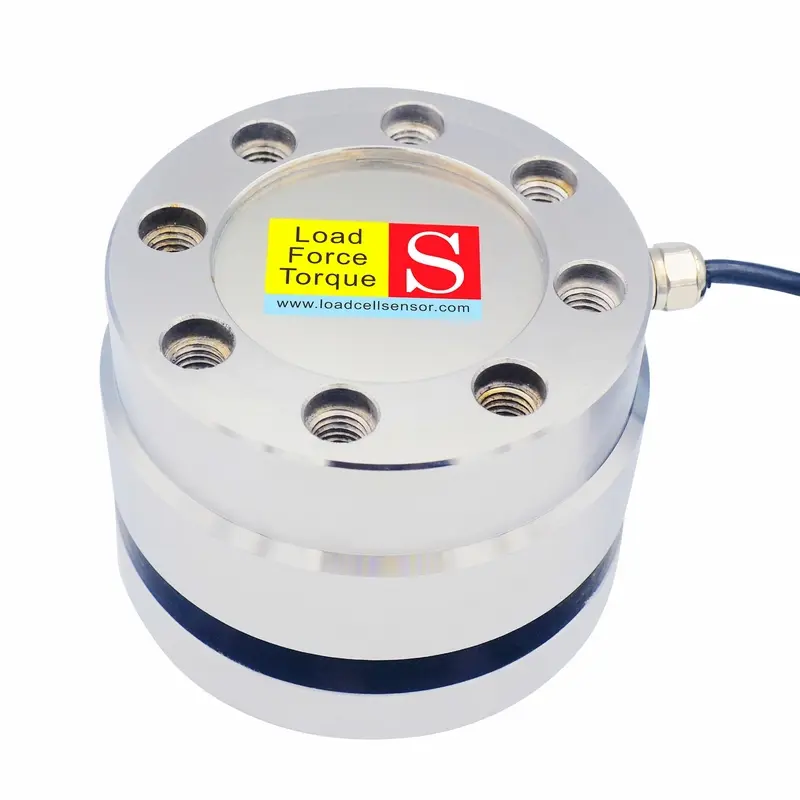

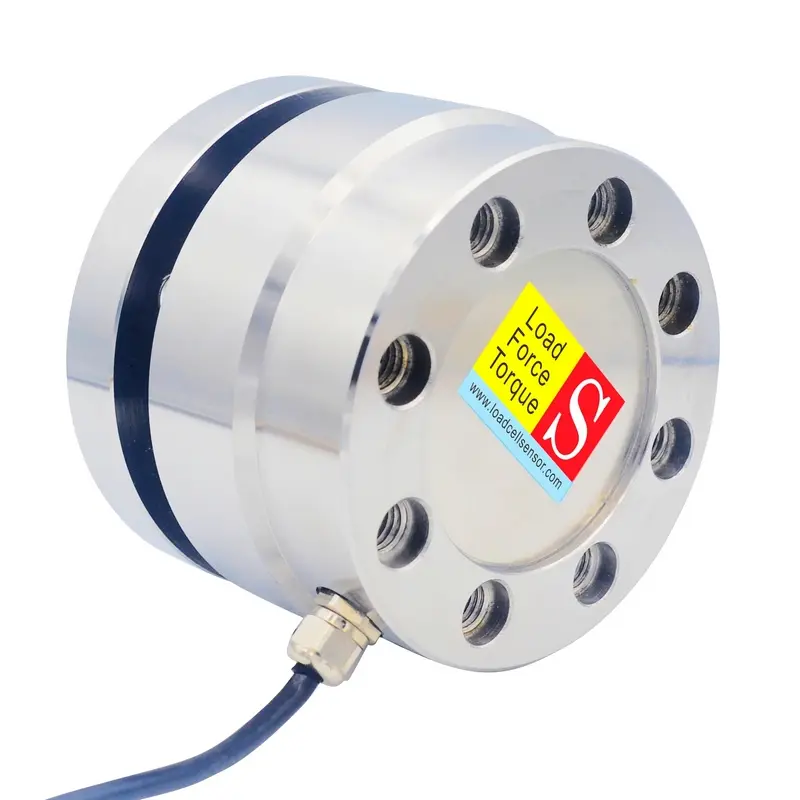

Combining a durable mechanical design, stable output performance, and cost-effective pricing, the LCF09 provides an excellent alternative to the HBM force transducer U3 for many industrial force measurement applications. Custom design and manufacturing services are available to meet specific mechanical dimensions, capacity requirements, and integration needs. This makes the LCF09 a flexible and practical choice for engineers seeking a reliable flange type force sensor for demanding industrial environments.
