Pancake Load Cell with Customizable Threaded Hole

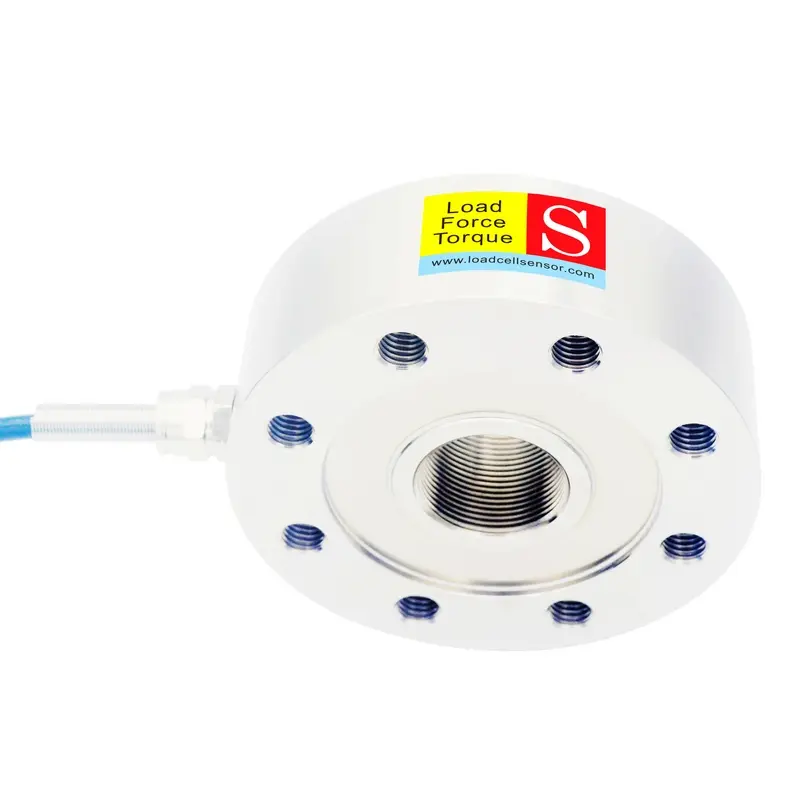

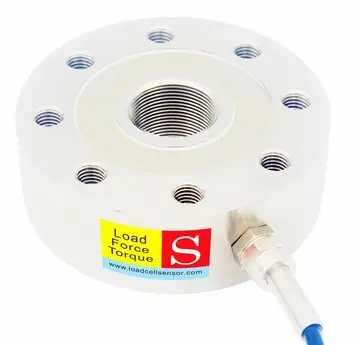

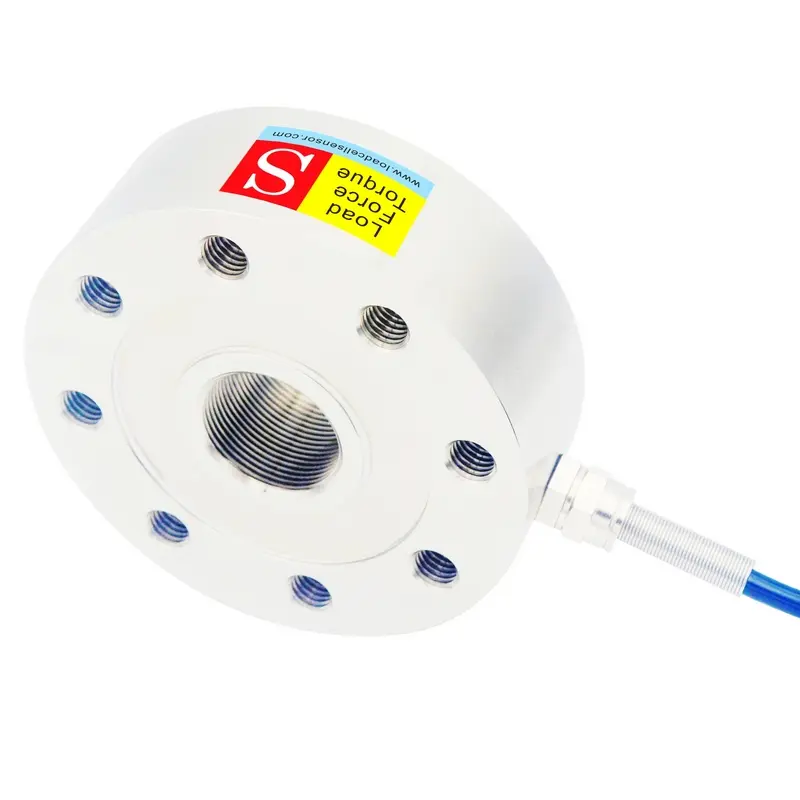

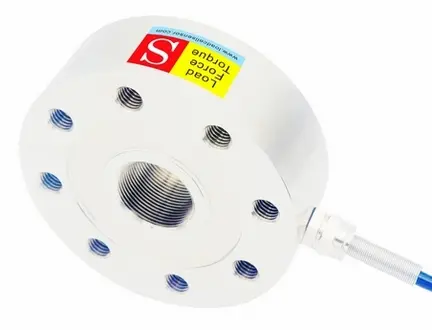

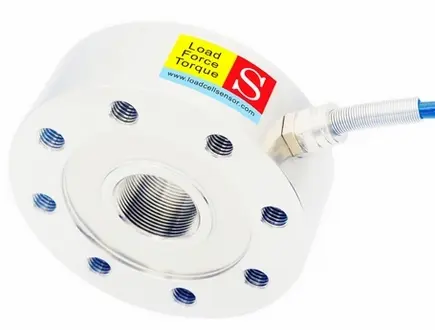

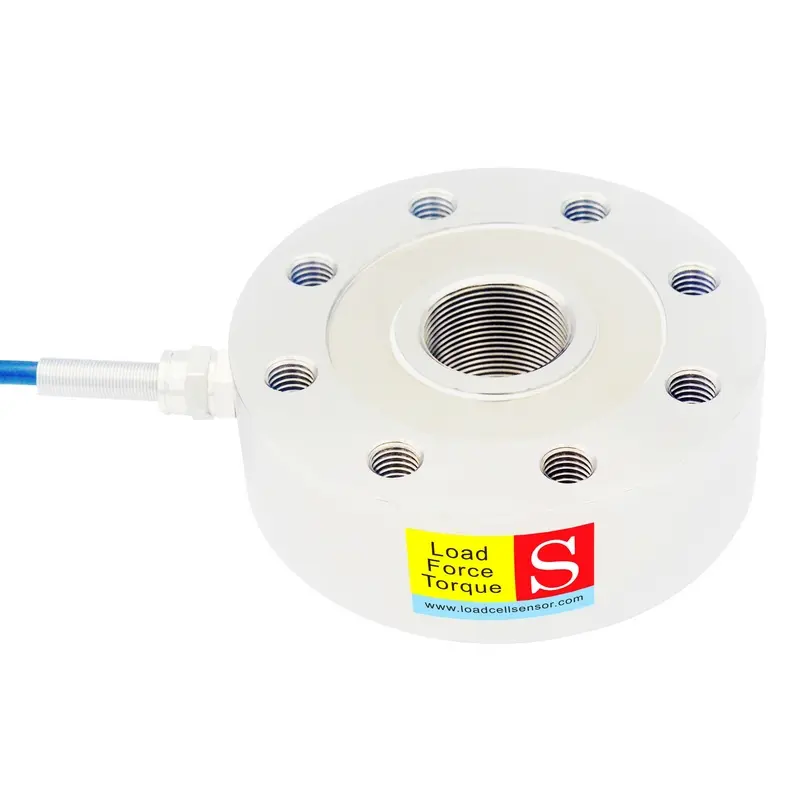

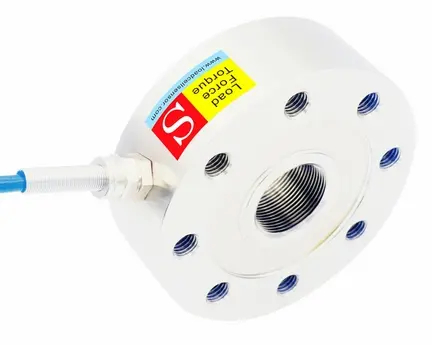

The LCPB pancake load cell is a high-performance force measurement device developed for applications that demand precise and stable axial force detection within limited installation spaces. Constructed from durable stainless steel, this sensor offers excellent mechanical strength, corrosion resistance, and reliable operation in demanding industrial conditions. Its advanced shear web load cell structure provides accurate output performance, allowing engineers to monitor dynamic and static forces with confidence.

Designed as a versatile bidirectional load cell, the LCPB measures forces in both pulling and pushing directions, making it suitable for systems where load direction varies during operation. Available in capacities from 5 kN to 70 kN, the sensor features a compact center-threaded configuration that enables direct load application and simplifies integration into customized fixtures, test equipment, and automated machinery.

The LCPB series can be configured as a tension and compression load cell according to specific installation needs. Multiple center thread options, including M16, M18, M20, M22, M24, M27, and M30, are available with coarse or fine thread selections to support different mechanical designs. As a customizable tensile compressive force transducer, it provides an adaptable solution for manufacturers and system integrators seeking accurate force feedback without extensive equipment redesign.

Typical applications include:

• Hydraulic press force measurement for production and testing systems
• Pneumatic actuator load monitoring and cylinder performance analysis
• Servo press force control and closed-loop feedback systems
• Automated assembly line force verification and process monitoring
• Injection molding clamping force measurement and quality control
• Bearing press-fit force testing during component installation
• Material testing equipment for strength and durability evaluation
• Industrial automation force control and machine performance monitoring

With its compact structure, flexible mounting options, and dependable measurement capability, the LCPB delivers a practical force sensing solution for industrial automation, research laboratories, and custom mechanical testing applications. LCS TECH also supports application-specific modifications to meet unique load ranges, mounting configurations, and integration requirements.
