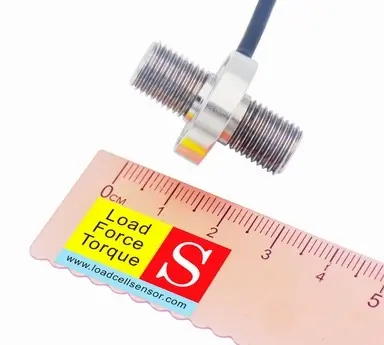

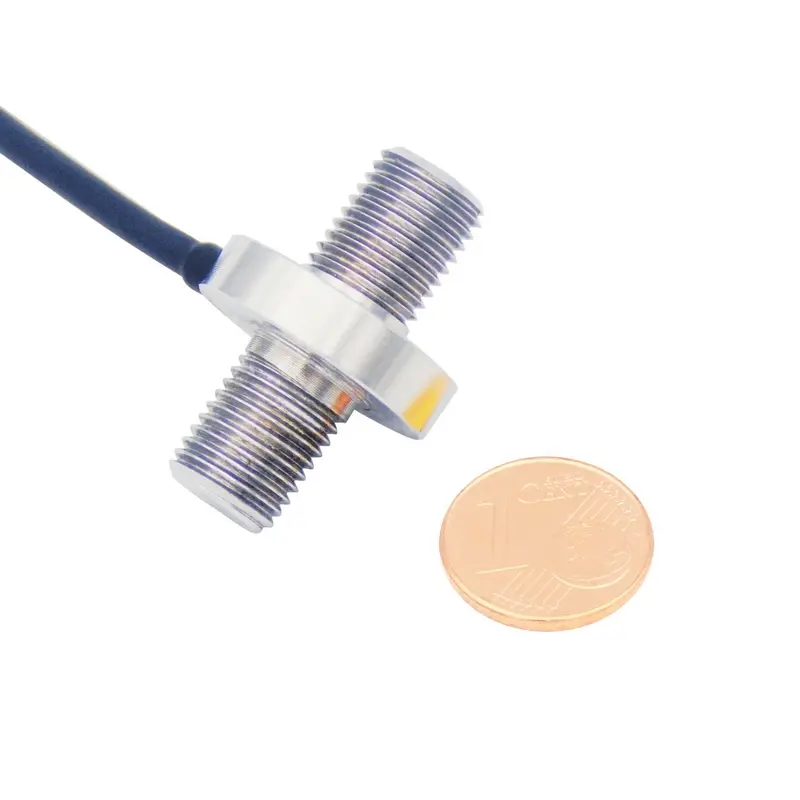

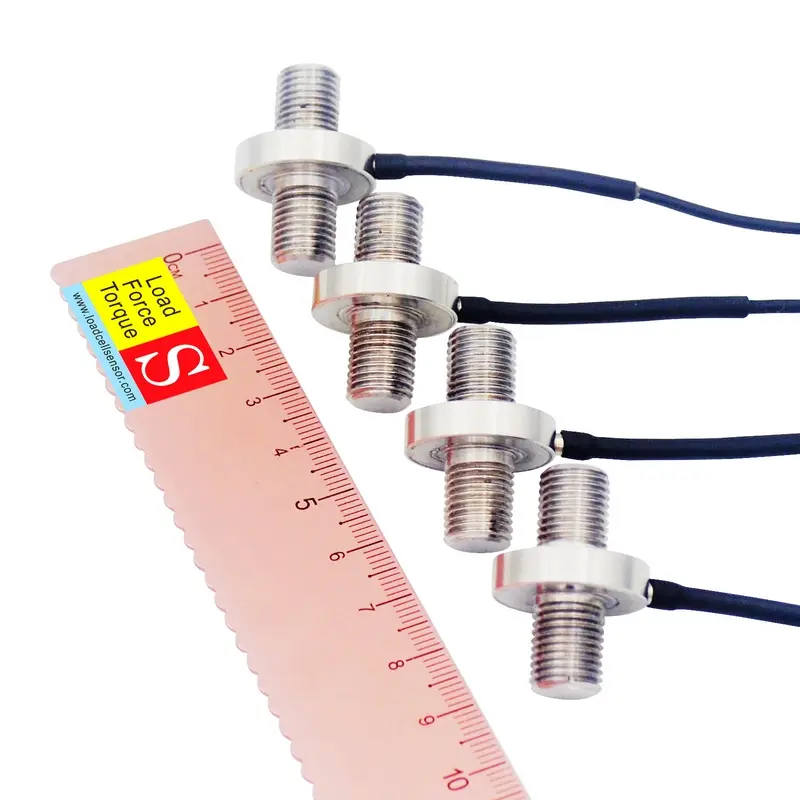

Miniature Threaded In Line Load Cell LCM200 Tension Compression Sensor

The miniature threaded in line load cell LCM200 is a compact and high-precision force measurement solution designed for applications where installation space is limited but accurate tension and compression measurement is required. With an ultra-small diameter of only 20.3 mm and an installed height of 5 mm, the LCM200 provides a low-profile design that allows engineers to integrate reliable force sensing capabilities into compact mechanical assemblies without increasing system size or weight. Its miniature structure makes it especially suitable for applications in robotics, automation equipment, medical devices, actuator testing, and OEM systems.

Featuring 3/8-24 UNF-2A x 0.4 male threads, the LCM200 enables simple and secure inline installation while maintaining excellent mechanical stability. The threaded mounting design minimizes assembly complexity and provides a practical solution for systems requiring direct force measurement between connected components. As a rod end load cell LCM200, it can be easily integrated into mechanical linkages, linear actuators, and motion control systems where precise force feedback is essential.

Manufactured from durable stainless steel, the LCM200 combines high mechanical strength, corrosion resistance, and long-term reliability for demanding industrial environments. Available in 500 lb and 1000 lb capacities, this miniature force sensor LCM200 delivers accurate and repeatable force measurements in both tension and compression directions. Its rigid column-type sensing structure provides excellent stiffness, high natural frequency, and minimal deformation of only 0.05 mm, ensuring fast response and stable performance during both static and dynamic testing.

As a precision tension compression force cell LCM200, this sensor is designed to provide dependable force data for applications requiring high accuracy and low deflection. Its compact dimensions and lightweight construction make it an ideal alternative to larger traditional load cells, especially in space-constrained systems where performance and integration flexibility are critical.

The LCM200 also offers a cost-effective alternative to the Futek LCM200 series while maintaining comparable measurement performance and reliability. LCS TECH provides customization options to meet specific customer requirements, including modified dimensions, special capacities, cable configurations, and mechanical adaptations. Combining compact design, threaded installation, high accuracy, and versatile performance, the LCM200 is a reliable force measurement solution for advanced engineering applications across various industries.
