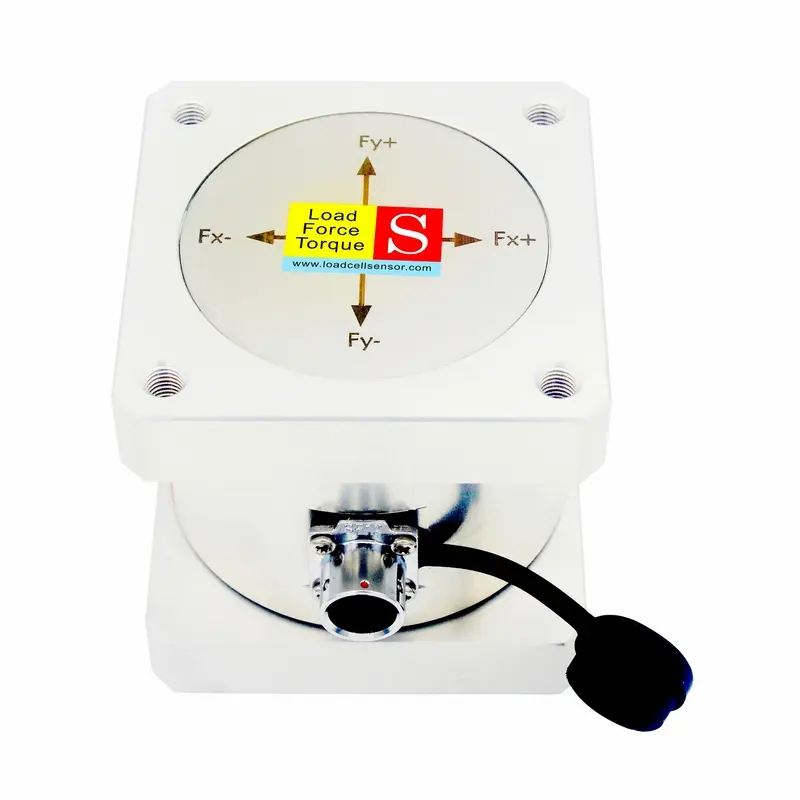

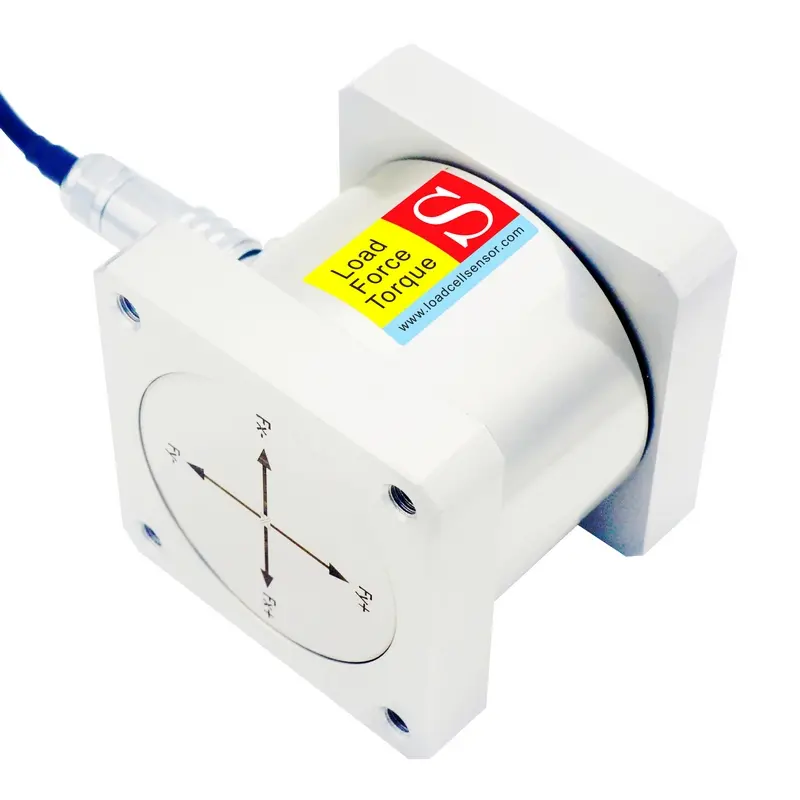

Flange-to-Flange Multi-axis Load Cell MTA400

The multi-axis load cell MTA400 is engineered for accurate force measurement in three directions within a single compact sensing unit. Designed to detect Fx, Fy, and Fz simultaneously, it provides a complete picture of force behavior without relying on separate sensors for each axis. This makes it an efficient solution for engineers and system designers who need reliable multi-directional data in test benches, research setups, and integrated machinery.

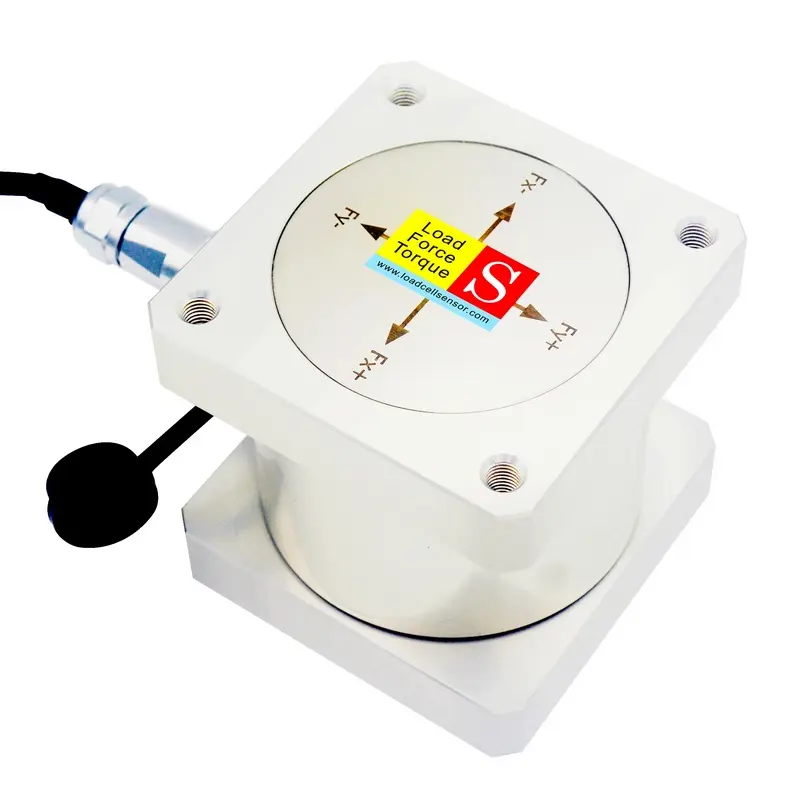

Built with a rigid flange-to-flange structure, the MTA400 delivers stable mounting and dependable mechanical performance even in space-constrained environments. Its robust construction helps maintain measurement integrity under demanding operating conditions, while the compact footprint supports easy integration into existing assemblies. As a high-performance 3-axis force sensor, the MTA400 offers lateral measurement capacities from 50 to 400 kg and vertical capacities from 150 to 1100 kg, making it suitable for medium-range force testing and structural analysis tasks.

The triaxial load cell MTA400 is manufactured for applications where precision, repeatability, and consistent sensor behavior are essential. Each unit is individually calibrated and supplied with a calibration certificate, helping users maintain confidence in test results and long-term measurement reliability. Whether used in laboratory experiments or industrial validation processes, this 3d load cell supports accurate data capture for complex force interactions.

Typical Applications

• Robotic force feedback and end-of-arm tooling measurement
• Aerospace component testing and subsystem validation
• Wind tunnel force measurement and aerodynamic studies
• Structural load testing and prototype verification
• Multi-component dynamometer and mechanical test rigs
• Material testing systems requiring three-axis force sensing
• R&D platforms for simultaneous force monitoring in multiple directions

For specialized projects, the multi-axis load cell MTA400 can be adapted to match unique technical requirements. Custom capacity ranges, modified dimensions, and application-specific structural changes are available to support seamless integration into advanced force measurement systems. With its combination of compact design, dependable stiffness, and accurate three-axis sensing, the MTA400 is a practical choice for engineers seeking a durable and versatile 3-axis force sensor for demanding measurement environments.
