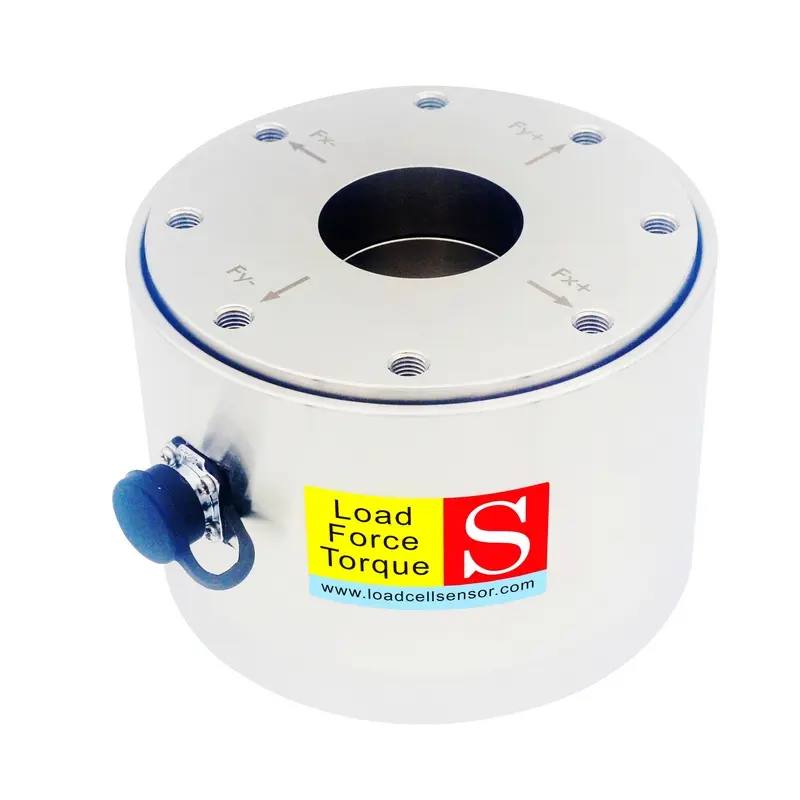

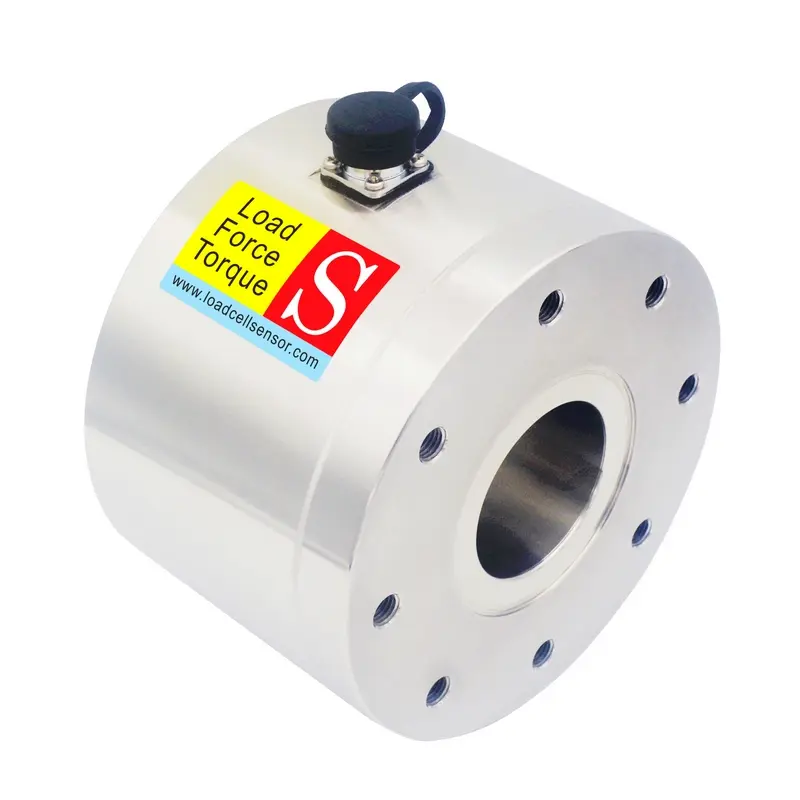

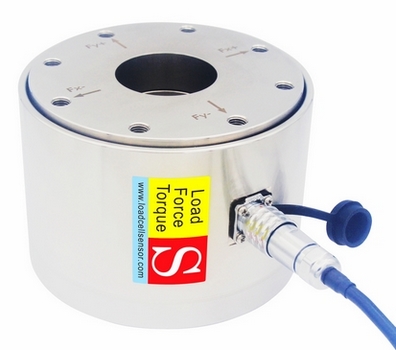

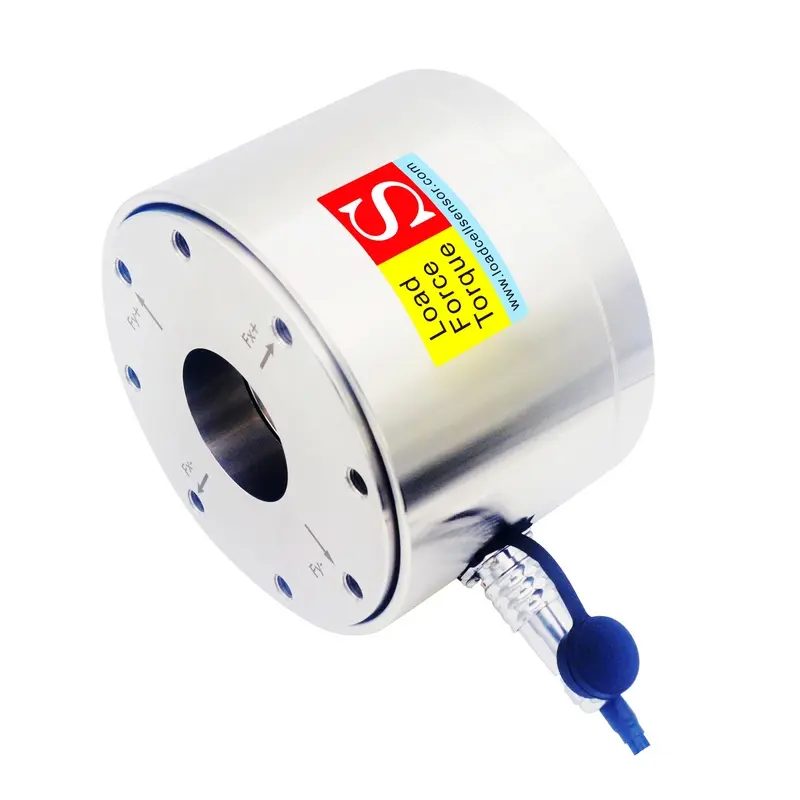

Hollow Flange Mount Triaxial Load Cell MTA600

The Triaxial load cell MTA600 is a precision-engineered sensing device designed to measure force components simultaneously along three orthogonal directions (Fx, Fy, and Fz) within a single integrated structure. As a high-performance multi-axis force sensor, it combines a rugged stainless-steel housing with a hollow flange-to-flange mechanical design, delivering excellent rigidity while keeping installation compact and efficient for space-limited or complex test environments. Its internal strain gauge bridge architecture is built with elevated resistance characteristics, ensuring low power consumption and highly stable signal transmission even under continuous or rapidly changing load conditions. The unit is available with rated capacities from 600–3000 kg for Fx/Fy directions and 2500–10000 kg for Fz, making it suitable for both medium-duty and heavy-duty force measurement tasks. Each sensor is individually calibrated and supplied with an in-house certificate to ensure traceable accuracy, repeatability, and long-term measurement reliability.

Designed as a robust 3D load cell, the MTA600 provides accurate decomposition of complex force interactions, making it a reliable solution for advanced testing and research environments. It also functions as a durable 3-axis load cell, capable of maintaining stable performance in applications requiring synchronized multi-directional force monitoring. With its strong structural integrity and consistent output behavior, it is particularly well suited for demanding engineering systems where precise vector force analysis is required under dynamic or high-load conditions.

Typical applications of this 3-axis sensor include:

• Aerospace structural testing, including flight control and component validation systems
• Wind tunnel experiments for aerodynamic force analysis such as lift, drag, and side forces
• Robotics and intelligent automation systems for actuator force feedback and control optimization
• Multi-component dynamometer systems for drivetrain, engine, and mechanical performance testing
• Structural engineering and civil testing for load distribution and stress analysis studies
• Advanced material testing equipment involving complex multi-directional force interactions
• Industrial laboratory calibration platforms requiring high-precision force measurement and verification

For specialized engineering requirements, LCS Tech provides customization options for the multi-axis load cell MTA600, including tailored capacity ranges, structural modifications, and application-specific design adjustments, ensuring optimal integration into diverse multi-axis force measurement systems.
