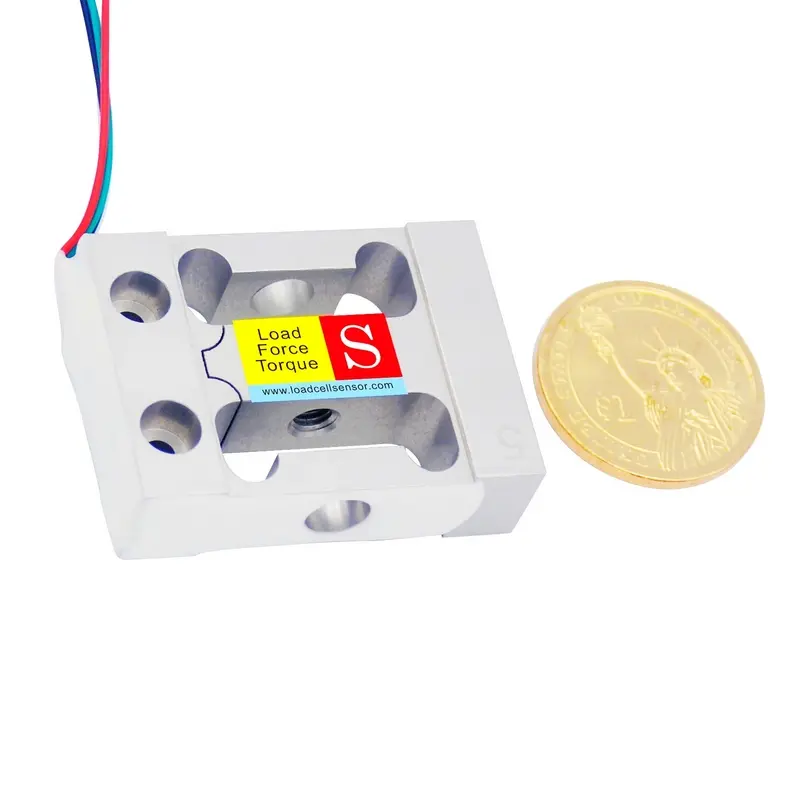

Side Mount Parallelogram Load Cell LSM300 Belt Buckle Load Cell

The Parallelogram Load Cell LSM300 is a compact and high-precision force measurement solution designed for applications where accuracy, reliability, and space efficiency are essential. Manufactured from lightweight aluminum alloy, this miniature force sensor combines excellent mechanical strength with reduced weight, making it especially suitable for medical devices, robotics, automation systems, and OEM equipment. Its compact structure allows easy integration into systems with limited installation space while maintaining stable and dependable measurement performance.

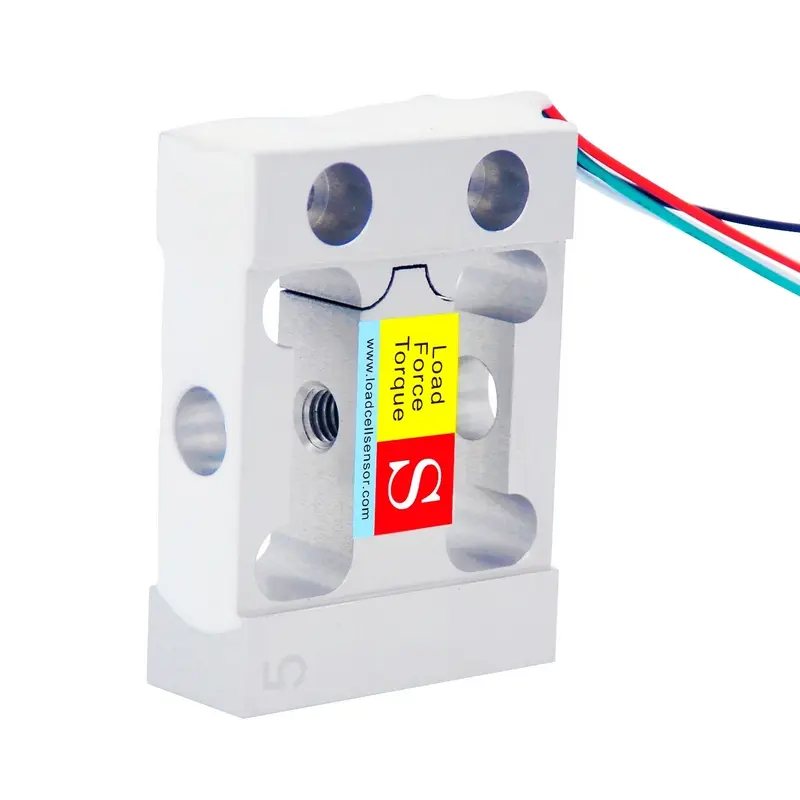

Featuring a unique side-mount design, the Belt Buckle Load Cell LSM300 includes two mounting holes on both sides and a central loading hole, providing flexible installation options for various mechanical configurations. The slim parallelogram structure not only simplifies system integration but also improves force transmission efficiency, ensuring accurate measurement results in demanding applications. With available capacities of 1kg, 2kg, 5kg, 10kg, 20kg, 30kg, and 50kg, the LSM300 can be customized to meet different force measurement requirements across multiple industries.

As a precision load cell LSM300, it offers excellent accuracy, repeatability, and long-term stability for both tension and compression measurements. The bidirectional sensing capability enables reliable detection of pulling and pushing forces, allowing the sensor to function effectively as a push pull force sensor in force gauges, material testing equipment, assembly inspection systems, and industrial monitoring applications. Its optimized strain gauge design ensures consistent output performance during continuous operation.

The LSM300 force sensor is widely recognized for its combination of compact dimensions, easy installation, and cost-effective performance. Compared with traditional larger load cells, its lightweight aluminum construction reduces system weight while maintaining sufficient durability for frequent use. This makes it an ideal choice for engineers seeking a reliable and economical force measurement component for high-volume applications.

Whether applied in laboratory instruments, medical equipment, robotic systems, automated manufacturing, or customized OEM projects, the Parallelogram Load Cell LSM300 delivers precise and repeatable force measurement. Its versatile design, multiple capacity options, and excellent performance make it a dependable solution for modern force sensing applications.
