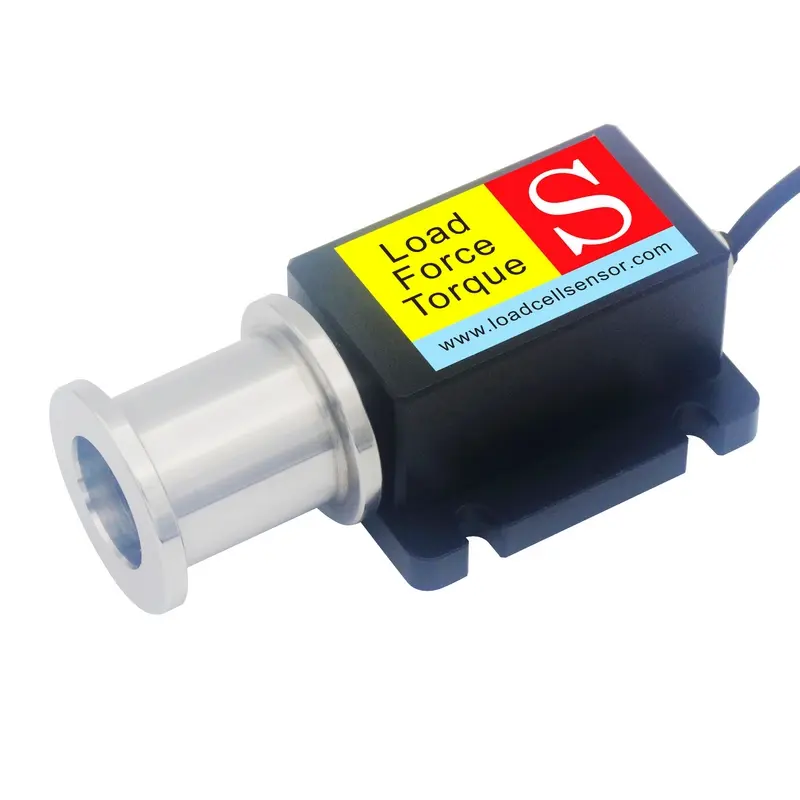

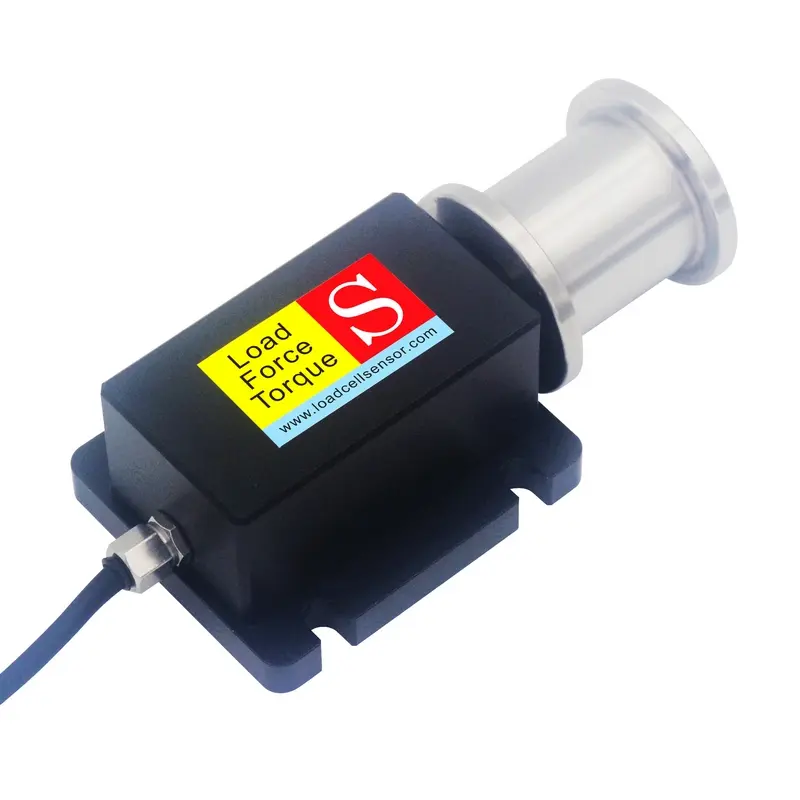

On-line Strip tension measurement sensor 0-50N

The STAN Series is a high-precision on-line tension sensor developed for real-time force monitoring in continuous production processes where accurate tension management directly affects product quality and operational efficiency. Designed for modern converting and processing lines, this sensor provides dependable and repeatable performance for demanding applications involving moving webs, strips, and flexible materials under dynamic operating conditions.

As a specialized web tension sensor, the STAN Series is ideal for systems requiring stable and continuous web tension measurement throughout production. By accurately detecting force variations generated during material movement, it helps manufacturers maintain uniform tension levels, minimize material deformation, and improve process consistency during high-speed operation.

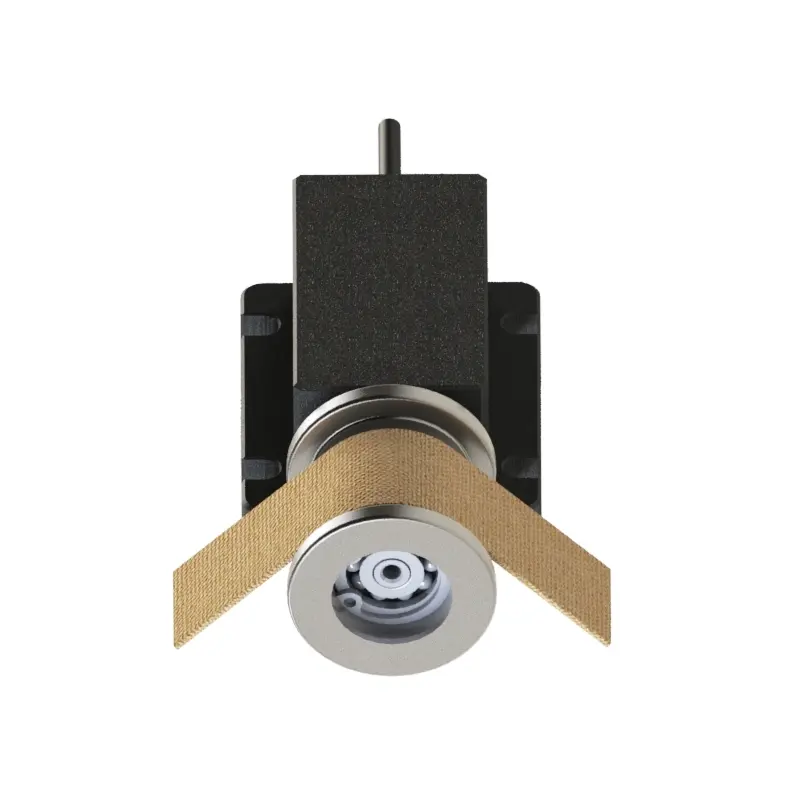

The sensor incorporates a compact roller assembly manufactured from durable stainless steel for excellent wear resistance and long service life in industrial environments. Its integrated guide roller features a groove diameter of 21 mm with a width of 22 mm, making the unit particularly suitable for narrow-width material handling systems. Acting as a highly sensitive tension transducer, the internal sensing structure converts mechanical force generated by line tension and wrap angle into precise electrical output signals for monitoring and control systems.

Designed for accurate strip tension measurement, the STAN Series supports standard measuring capacities of 10 N, 20 N, and 50 N, offering reliable performance across a broad range of continuous web applications. Custom engineering options are available for special load ranges, alternative roller dimensions, and project-specific design requirements, with flexible production starting from a single unit.

Typical applications include:

• Copper foil production and battery material processing
• Aluminum strip winding and unwinding systems
• Plastic film converting and slitting machines
• Adhesive tape coating and laminating equipment
• Textile ribbon production lines
• Carbon fiber tape manufacturing systems
• Nonwoven fabric, and flexible packaging machinery

Built for industrial precision, the STAN Series provides an efficient solution for manufacturers seeking reliable tension monitoring and advanced process control in continuous material handling operations.
