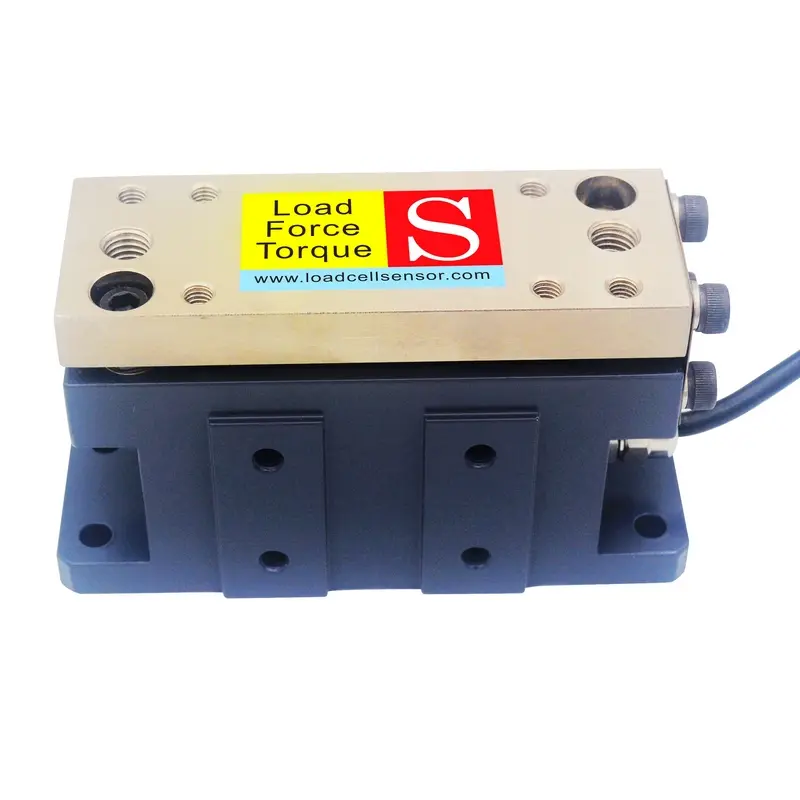

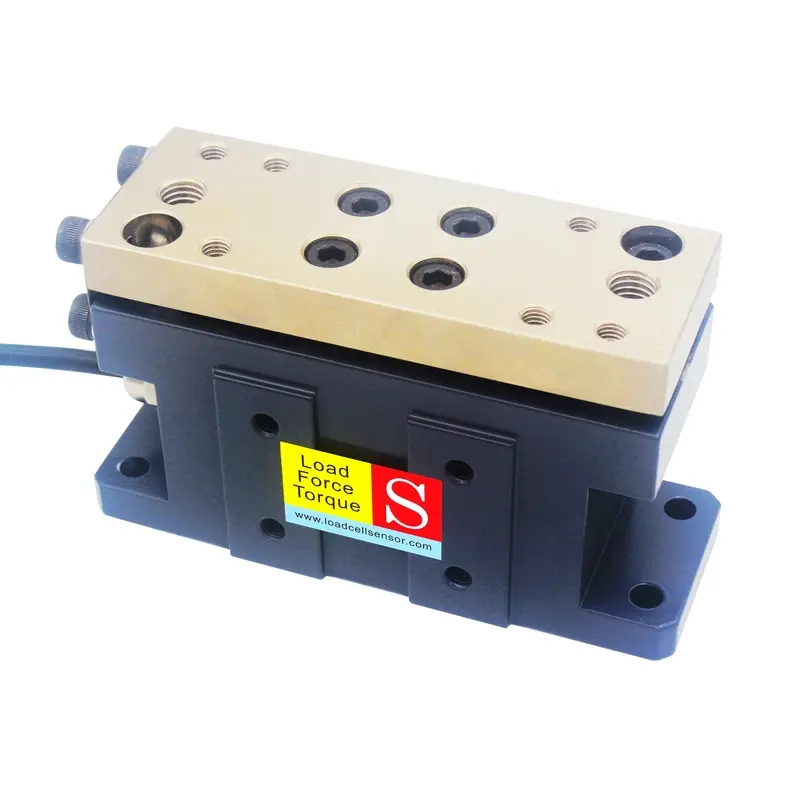

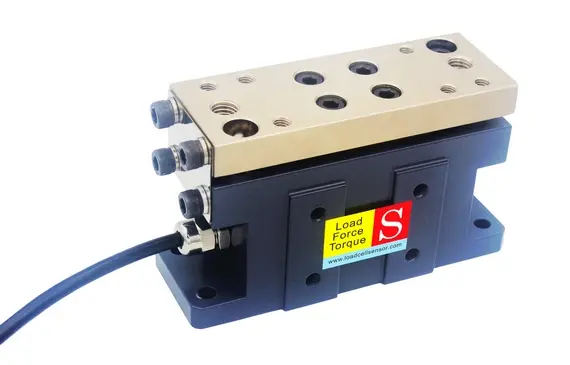

Pillow block load cell 0-300kg for web tension control

The Pillow block web tension sensor is a compact sensing solution engineered for precise web force monitoring in continuous roll-to-roll processing systems. Installed between a pillow block bearing and the machine side frame, it detects the load acting on the idler roll shaft and converts it into a stable electrical signal for real-time tension control. This design makes it an ideal pillow block tension sensor for machinery where accurate web handling is essential to product quality and process efficiency.

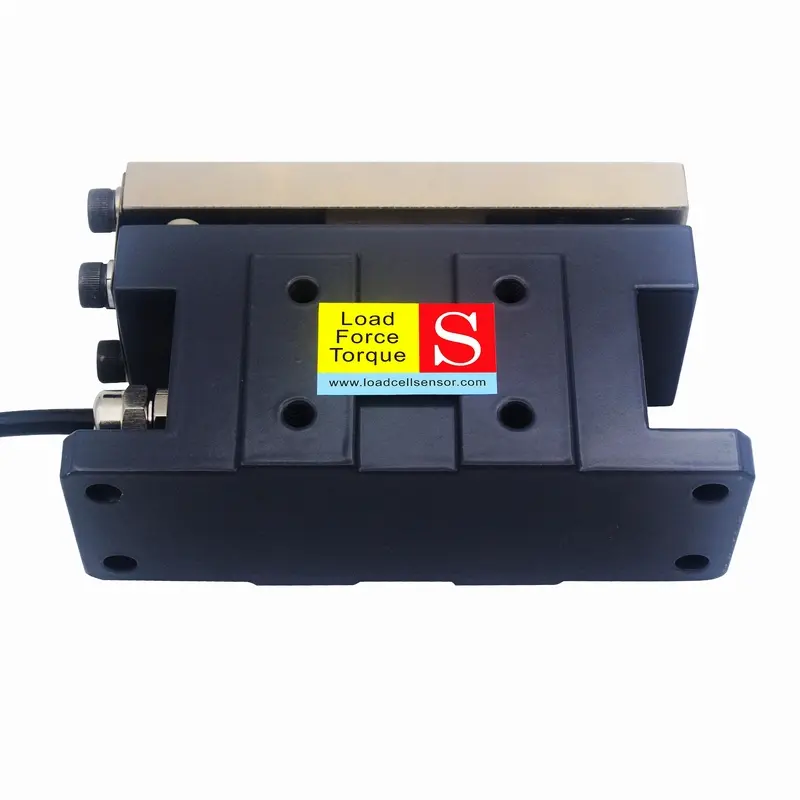

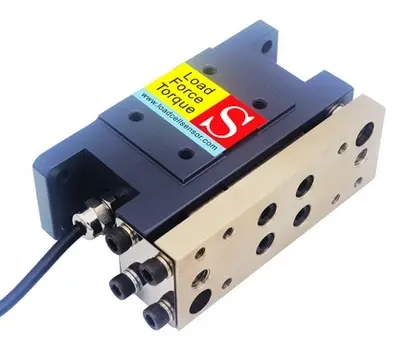

Built for dependable performance in demanding production environments, this pillow block load cell supports rated capacities from 10 kg to 300 kg, making it suitable for a wide range of light- to medium-duty applications. Its robust structure allows it to capture vertical force changes caused by web tension while maintaining high sensitivity and repeatable output. As a reliable force measuring block, it helps operators maintain consistent line tension, improve roll alignment, reduce breakage, and minimize scrap during high-speed operation.

This sensor is especially valuable in automated systems that require closed-loop tension control, where even small variations in force can affect print registration, coating uniformity, laminating quality, or winding performance. By delivering accurate load feedback under actual running conditions, it supports smoother web transport and more stable production results.

The Pillow block web tension sensor is widely used in:

• Gravure printing machines
• Flexographic printing presses
• Film slitting and rewinding systems
• Laminating and coating machines
• Packaging film manufacturing lines
• Paper converting and coating equipment
• BOPP, PET, and plastic film production machinery
• Textile weaving and wire processing lines

Whether integrated into printing, converting, film processing, textile, or battery material equipment, this pillow block tension sensor offers a practical and accurate way to monitor web load continuously. With its compact installation method, reliable signal output, and broad industrial compatibility, the pillow block load cell is a smart choice for manufacturers seeking tighter process control, improved material utilization, and consistently high product quality.
